| Model |
Item |
Series |
Monitor Size |
Display Unit |
Color |
Power Supply |
Interface |

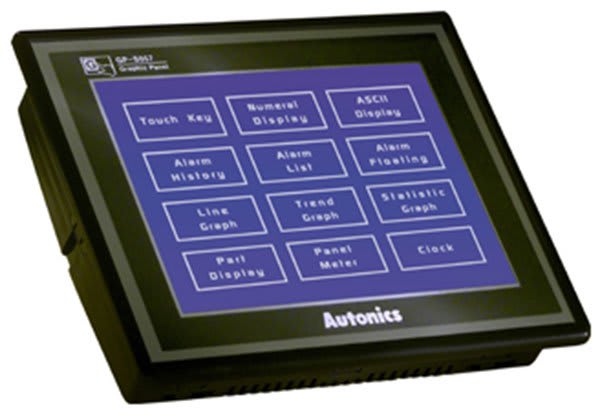

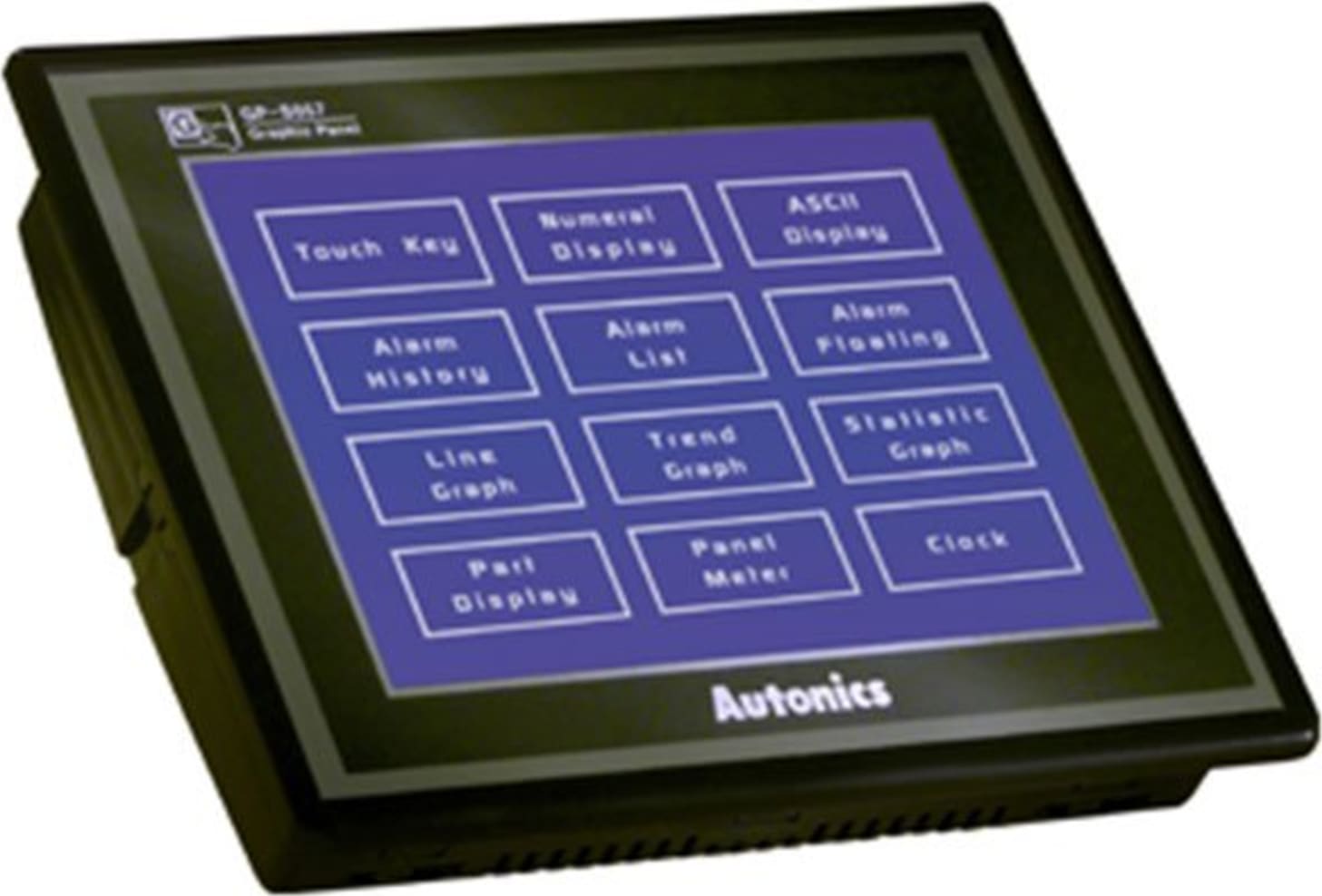

| GP-S057-S1D1 |
Graphic panel |
S series |
5.7 inch |
STN LCD |
MONO (blue, white) |
24VDC |
Each ports of
RS232C |
| Model |
GP-S057-S1D0 |
GP-S057-S1D1 |
| Power supply |
24VDC |
| Allowable voltage range |
90 to 110% of power supply |
| Power consumption |
90 to 110% of power supply |
| Display Performance |
LCD type |
5.7 inch STN blue negative |
| Resolution |
320×240 dots |
| Display area |
119mm×91mm |
| Color |
MONO (blue, white) |
| LCD view angle |
Top/Bottom/Left/Right within 30°in each direction |
| Backlight |
White LED |
| Brightness |
Adjustable by software |
| Graphic Drawing Performance |
Language *1 |
English, Korean, Japanese, Chinese, Russian, Vietnamese, Portuguese |
| Text |
• High resolution display up to 1590 letters (6×8 font)
• 6×8, 8×8 ASCII character, high definition numbers
• 8×16 ASCII characters, 16×16 character by each country (1-8 times bigger for width, 0.5-5 times bigger for height] |
| Graphic drawing memory |
512 KB |
| Number of user screen |
500 pages |
| Touch switch |
Width 16×Height 12 = 192 |
| Serial interface |
Each port of RS232C, RS422 (asynchronous method) |
| Real-time controller |
RTC embedded |
| Battery life cycle |
Approx. 3 years at 25 °C |
| Insulated resistance |
Min. 100MΩ (at 500VDC megger) |
| Ground |
3rd grounding (max. 100Ω) |
| Noise resistance |
± 0.5kV the square wave noise (pulse width: 1μs ) by the noise simulator |
| Dielectric strength |
500VAC (50/60Hz) for 1 min. |
| Vibration |
Mechanical |
0.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 1 hour |
| Malfunction |
0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 10 min. |
| Shock |
Mechanical |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Malfunction |
100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
| Environment |
Ambient temperature |
to 50 °C , storage: -20 to 60 °C |
| Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
| Protection structure |
IP65F (for front panel) |
| Accessory |
Fixing bracket: 4EA, Rubber waterproof ring, Battery (included) |
| Weight *2 |
Approx. 555g (approx. 376g) |
*1: Language could be added in the future M
*2: The weight includes packaging. The weight in parentheses is for unit only
*Environment resistance is rated at no freezing or condensation |
| Functional Description |
| Figure display |
Line, rectangle, circle, text, bitmap |
| Tags |
Numeral display |
Displays the designated device as numerical value. (decimal, hexadecimal, octal, binary , real number) |
| ASCII display |
Displays the designated device value as ASCII character. |
| Time display |
Displays current time or date. |
| Alarm history |
Registers alarm history. |
| Alarm list |
Displays generated (not backed up) alarm. |
| Comment display |
Displays the designated comment as device status or value. |
| Lamp |
Displays lamp as device status. |
| Part display |
Displays the designated parts as device status and value. |
| Line graph |
Displays several device values with a graph of broken line. |
| Trend graph |
Displays change of device value for time with a graph of broken line. |
| Bar graph |
Displays a device value with a bar graph. |
| Statistic graph |
Displays a ratio of several device values with pie graph. |
| Panel meter |
Displays a device value as panel meter. |
| Touch key |
Screen is switched, word/bit device values are set when it touched. |
| Numeral input |
Configures user input value in device. |
| ASCII input |
Configures user input ASCII code value in device. |
| System information function |
Monitors/Controls GP operation from PLC. |
| Recipe function |
Reads/Writes several PLC device collectively. |
| Security function |
Only acceptable user can observe/operate important data. |
| Barcode read function |
Connects barcode reader, read barcode. |
| Floating alarm function |
Warning message is floated when alarm is generated. |
| Time operation |
Specific bit device is ON/OFF for designated day and time. |
| Overlap window |
Available to form dynamically overlapping another base screen on the base one. |
| Observe status function |
Changes PLC device status/value of PLC when trigger is generated. |
