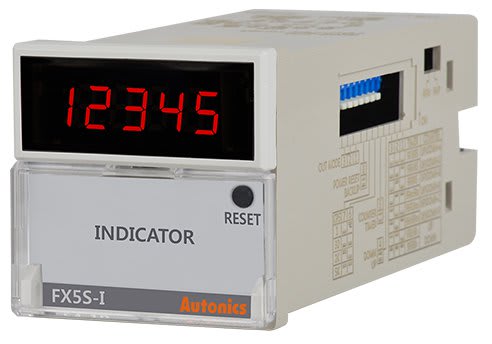

Autonics FX5S-I4 Counter and Timer

Name: Autonics FX5S-I4 Counter and Timer
Brand: Autonics
SKU: AutonicsFX5S-I4
Price: 117.00 USD
Availability: InStock

0 reviews | Model: Autonics FX5S-I4

Compare

Counter and Timer, 1/16 DIN, 5-Digit, LED, Indicator Only, 100-240 VAC 50/60Hz

Counter and Timer, 1/16 DIN, 5-Digit, LED, Indicator Only, 100-240 VAC 50/60Hz
36 input modes and 20 output modes
Counting speed: 1cps/30cps/2kcps/5kcps
Selectable voltage input (PNP) or No voltage input (NPN)
Addition of Up/Down input mode
Wide range of power supply: 100-240VAC 50/60Hz, 12-24VAC 50/60Hz, 12-24VDC universal
Selectable Counter/Timer by internal DIP switch
Various time range
Built-in Microprocessor

View Product Details

Your Price: $117.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics FX/FXH/FXL Series Counter/Timer

Counter and Timer, 1/16 DIN, 5-Digit, LED, Indicator Only, 100-240 VAC 50/60Hz
36 input modes and 20 output modes
Counting speed: 1cps/30cps/2kcps/5kcps
Selectable voltage input (PNP) or No voltage input (NPN)

DIN W72×H72, W48×H96, W144×H72mm of up/down counter/timer FX/FXH/FZL series provides 1cps/30cps/2kcps/5kcps of counting speed and supports NPN/PNP input selecting function equipped counter/timer. Also, the series is possible to set various up/down counting modes so that various user applications can be supported. Diverse size option is another feature of this series to increase user convenience.

Autonics FX/FXH/FXL Series General Specifications
Model	Single present		FX4	FX6	FX4H	—	—
	Dual present		FX4-2P	FX6-2P	FX4H-2P	FX4L-2P	FX6L-2P
	Totalizer (Indicator)		FX4-I	FX6-I	FX4H-I	FX4L-I	FX6L-I
Digit			4 Digit	6 Digit	4 Digit	4 Digit	6 Digit
Digit size			W8×H14mm	W4×H8mm	W6×H10mm	W8×H14mm
Power supply	AC power		100-240VAC 50/60Hz
	AC/DC power		12-24VAC 50/60Hz, 12-24VDC
Allowable voltage range			90 to 110% of rated voltage
Power consumption	AC power		• Indicator type: Max. 6VA • Single preset: Max. 7VA • Dual preset: Max. 8VA (100-240VAC 50/60Hz)
	AC/DC power		• Indicator type: Max. 5.8VA • Single preset: Max. 6.8VA • Dual preset: Max. 7.6VA (12-24VAC 50/60Hz) • Indicator type: Max. 2.7W • Single preset: Max. 3.3W • Dual preset: Max. 3.8W (12-24VDC)
Max. counting speed for CP1, CP2			Selectable 1cps/30cps/2kcps/5kcps by internal DIP switch
Min. input signal width	RESET input		Approx. 20ms
	INHIBIT input
Input	CP1, CP2 input (INHIBIT)		Input logic is selectable [Voltage input] Input impedance: 5.4kΩ, "H" level: 5-30VDC, "L" level: 0-2VDC [No-voltage input] Impedance at short-circuit: Max. 1kΩ, Residual voltage at short-circuit: Max. 2VDC, Impedance at open-circuit: Min. 100kΩ
	RESET input
One-shot output time			• Single preset type - 0.05 to 5sec. • Dual preset type - 1st. output 0.5sec. fixed, 2st. output: 0.05 to 5sec.
Control output	Contact	Type	Single preset type: SPDT (1c), Dual preset type: 1st output SPDT (1c), 2nd output SPDT (1c)
		Capacity	250VAC 3A at resistive load
	Solid state	Type	Single preset: 1 NPN open collector Dual preset: 1st output 1 NPN open collector, 2nd output 1 NPN open collector
		Capacity	30VDC Max. 100mA Max.
Memory protection			Approx. 10 years (When using non-volatile semiconductor memory)
External sensor power			12VDC±10% 50mA Max.
Environment	Ambient temperature		-10 to 55 °C, storage: -25 to 65 °C
	Ambient humidity		35 to 85%RH, storage: 35 to 85%RH
Insulation resistance			Min. 100MΩ (at 500VDC megger)
Dielectric strength			2000VAC 50/60Hz for 1 minute
Noise strength	AC power		±2kV the square wave noise (pulse width: 1㎲) by the noise simulator
	DC power		±500V the square wave noise (pulse width: 1㎲) by the noise simulator
*Environment resistance is rated at no freezing or condensation.

Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 10 min.
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Relay life cycle	Mechanical	Min. 10,000,000 operations
	Electrical	Min. 100,000 operations at 250VAC 2A (resistive load)
Weight ^*1		FX4: Approx. 385g (approx. 249g) FX4-2P: Approx. 396g (approx. 258g) FX4-I: Approx. 353g (approx. 216g)	FX6: Approx. 395g (approx. 259g) FX6-2P: Approx. 398g (approx. 262g) FX6-I: Approx. 351g (approx. 214g)	FX4H: Approx. 349g (approx. 234g) FX4H-2P: Approx. 375g (approx. 261g) FX4H-I: Approx. 321g (approx. 206g)	FX4L: Approx. 651g (approx. 467g) FX4L-I: Approx. 593g (approx. 400g)	FX6L: Approx. 678g (approx. 494g) FX6L-I: Approx. 586g (approx. 404g)
1: The weight includes packaging. The weight in parentheses is for unit only. Environment resistance is rated at no freezing or condensation.

Tech Specs

Test Equipment General Attributes
Country of Origin	Korea
