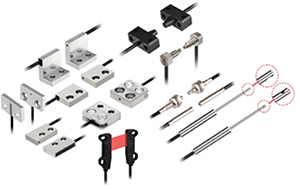

Autonics FT-420-13B Cable, Fiber Optic, Break Resistant type, 5R, Through Beam, 4mm

Name: Autonics FT-420-13B Cable, Fiber Optic, Break Resistant type, 5R, Through Beam, 4mm
Brand: Autonics
SKU: AutonicsFT-420-13B
Price: 62.00 USD
Availability: InStock

0 reviews | Model: Autonics FT-420-13B

Autonics FD/FT/FL/GD/GT Series Diverse Line-Up of Fiber Optic Cables

Compare

Cable, Fiber Optic, Break Resistant type, 5R, Through Beam, 4mm, Threaded End, 0.6mm, 2m Length

Cable, Fiber Optic, Break Resistant type, 5R, Through Beam, 4mm, Threaded End, 0.6mm, 2m Length
Six cable head types available
Area detection type
Perpendicular type
Flat type
Cylindrical Type
Injection Molded Plastic Type
Various Fiber Cable Types
Standard type
Flexible type
Break-Resistant type
Coaxial type
Heat-Resistant type
High-Flex R1 Cables

View Product Details

Your Price: $62.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics FT-420-13B Cable, Fiber Optic, Break Resistant type, 5R, Through Beam, 4mm, Threa ...	Autonics FTL-M26 Lens of Fiber cable for FT-420 series	Autonics FTC-1520-05 Cable, Fiber Optic, Break Resistant type, 15R, Through Beam, 1.5 Cyli ...	Autonics FT-420-10 Cable, Fiber Optic, Through Beam, 4mm Threaded End, 2m Length	Autonics FTC-220-05 Cable, Fiber Optic, Through Beam, 2mm Smooth End, 150mm Mounting Dista ...	Autonics FT-310-05 Cable, Fiber Optic, Through Beam, 3mm Threaded End, 1m Length	Autonics FTS-420-10 Cable, Fiber Optic, Through Beam, 4mm Threaded End With 1.5x90mm Stain ...	Autonics FT-320-05 Cable, Fiber Optic, Through Beam, 3mm Threaded End, 2m Length	Autonics FTH-305 Protection Sheath, M3mm, 0.5M Length, Use with M3mm Fiber Optic Cables	Autonics FTC-1520-06B Cable, Fiber Optic, Break Resistant type, 5R, Through Beam, 1.5 Cyli ...	Autonics FTH-405 Protection Sheath, M4mm, 0.5M Length, Use With FD(S)-420-05, FT(S)-420-10 ...	Autonics FTH-310 Protection Sheath, M3mm, 1M Length, Use with M3mm Fiber Optic Cables	Autonics FTH-410 Protection Sheath, M4mm, 1M Length, Use With FD(S)-420-05, FT(S)-420-10 a ...	Autonics FTS-320-05 Cable, Fiber Optic, Through Beam, 3mm Threaded End With 1.0x90mm Stain ...	Autonics FT-420-10H Cable, Fiber Optic, Through Beam, 4mm Threaded End, Using Temp. -40 - ...	Autonics FTC-220-05R Cable, Fiber Optic, Flexible type, 1R, Through Beam, 2 Cylinder type, ...	Autonics FT-320-05R Cable, Fiber Optic, Flexible type, 1R, Through Beam, 3mm Threaded End, ...	Autonics FT-420-10R Cable, Fiber Optic, Flexible type, 1R, Through Beam, 4mm Threaded End, ...	Autonics FDF-210-05R Cable, Fiber Optic, Diffuse Reflective, Flat Type/Flat View, 1R, Min ...	Autonics GT-420-13H2 Cable, Glass Fiber Optic, Through Beam, 4mm Threaded End, Using Temp. ...	Autonics FTP-320-10 Cable, Fiber Optic, Through Beam, 3mm Smooth End, 500mm Mounting Dista ...
Price	$62.00	$28.00	$37.00	$41.00	$43.00	$55.00	$56.00	$57.00	$62.00	$62.00	$62.00	$65.00	$65.00	$67.00	$95.00	$101.00	$104.00	$132.00	$140.00	$507.00
In Stock	18	Available to Order Check Lead Time	Available to Order Check Lead Time	242	Available to Order Check Lead Time	10	8	5	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	8	Available to Order Check Lead Time	3	Available to Order Check Lead Time	Available to Order Check Lead Time	4	3	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics FT Series Fiber Optic Sensors

Diverse Line-Up of Fiber Optic Cables

Autonics offers a diverse line-up of fiber optic cables to suit detection requirements in a wide range of applications. The FD/FT/FL/GD/GT series fiber optic cables are available in various head types (thread, cylindrical, flat, perpendicular, plastic, area detection), sensing methods (through-beam, diffuse reflective, convergent reflective), cable types (standard, flexible, coaxial, break-resistant, heat-resistant) and sensing directions (flat, top, side, etc.).

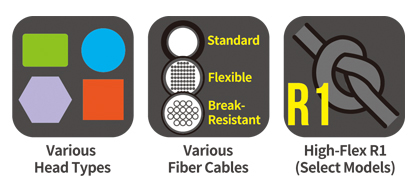

FD/FT/FL/GD/GT Features
* New: Area Detection Fiber Optic Cables Available (Beam Width: 11mm)
1 Six Cable Head Types Available

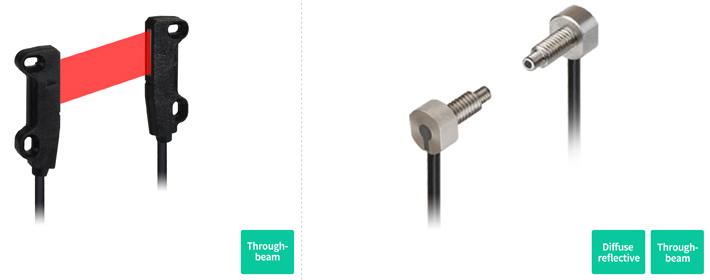

• Area Detection Type (NEW)	• Perpendicular Type
1. Area detection sensors with wide detection area 2. Detection of vibrating or falling objects 3. 11 mm beam width and 750 mm maximum detection distance	1. Easy installation with a single nut 2. High-flex (R1) cable allows tidy installation and reduces light intensity change from bending of the cable

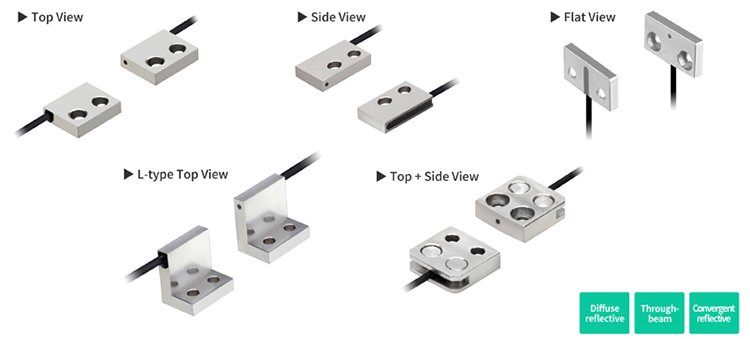

• Flat Type
1. Compact flat heads for installation in tight spaces 2. Various sensing directions (top view, side view, flat view, L-type top view, top + side view) 3. High-flex (R1) cable allows tidy installation and reduces light intensity change from bending of the cable 4. Integrated bracket types with simple installation

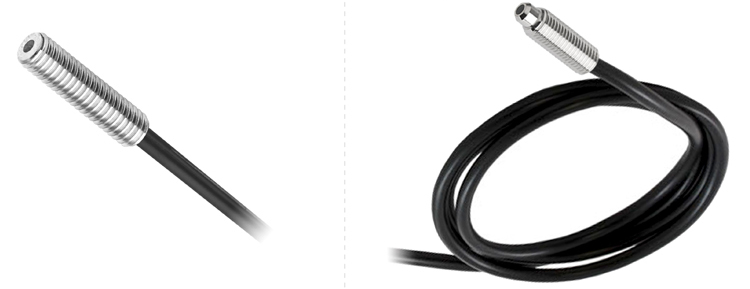

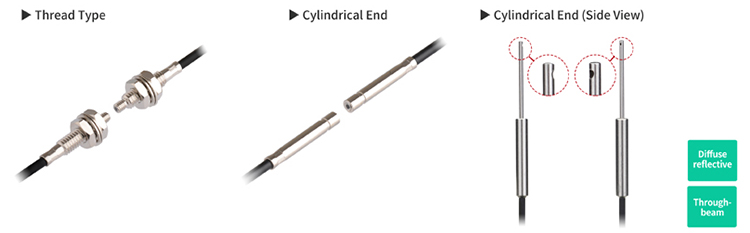

• Cylindrical Type (Thread End, Cylindrical End)
1. Standard cylindrical fiber optic sensors for bracket mounting

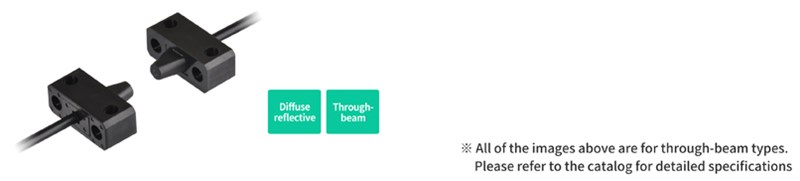

• Injection Molded Plastic Type

2 Various Fiber Cable Types

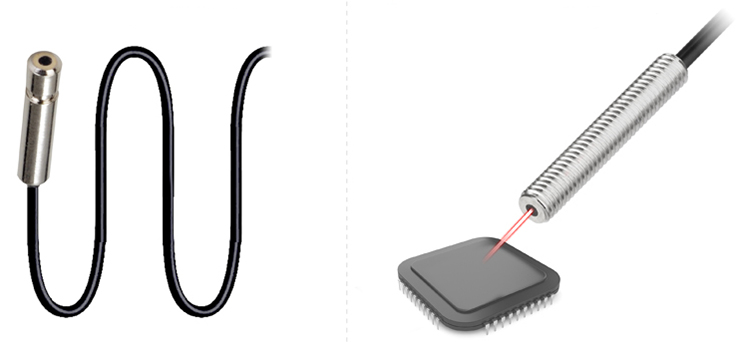

• Standard Type	• Flexible Type
Standard fiber optic cables with efficient signal transmission	Ideal for installation environments with contours

• Break-Resistant Type	• Coaxial Type
Withstand frequent bending without breaking	Excellent signal transmission at close proximity

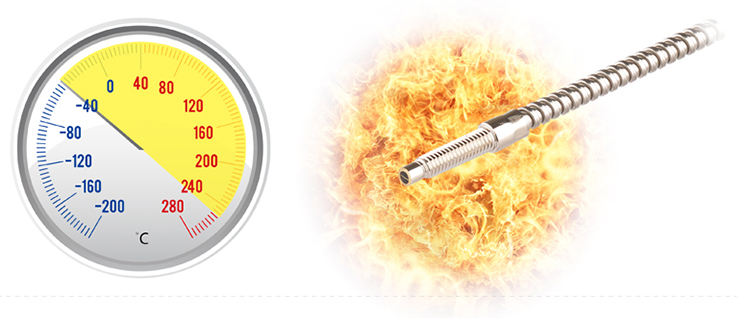

• Heat-Resistant Type
Withstand extreme temperature conditions from -40°C to 250°C

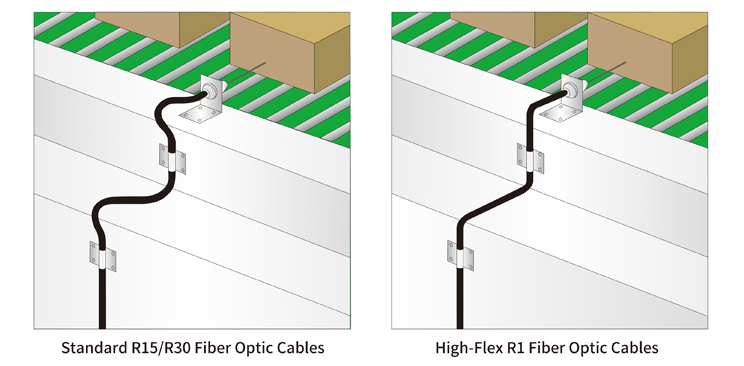

3 High-Flex R1 Cables
High-flex (R1) cable allows tidy installation and reduces light intensity change from bending of the cable

4 Applications

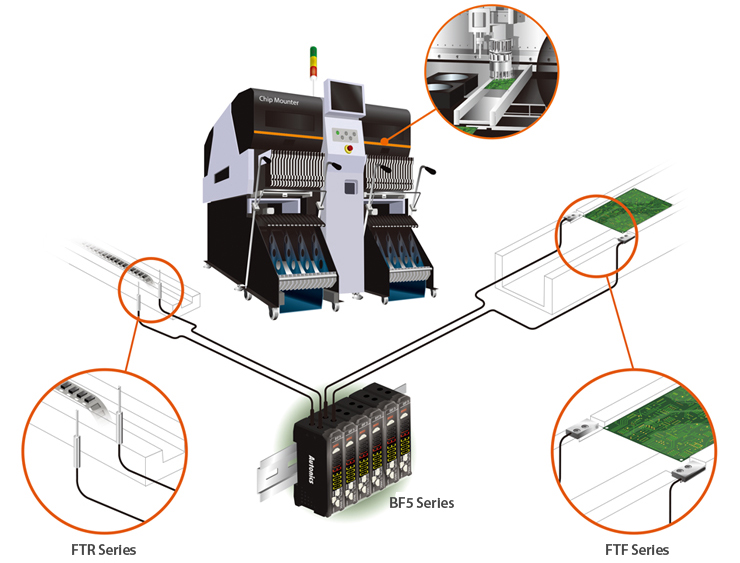

Fiber optic sensors used for presence and position detection of PCBs on chip mounting machinery

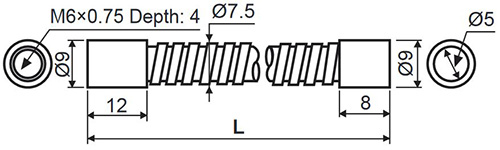

• Application: Protect cable from impact or cutting

(unit: mm)

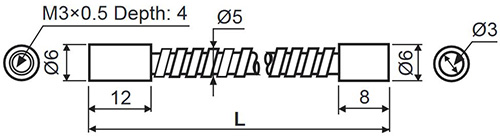

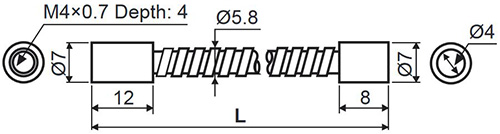

Model	Appearance and Dimension	L
FTH-305		500
FTH-310		1000
FTH-405		500
FTH-410		1000
FDH-605		500
FDH-610		1000

* Additional 8mm is for tube coupling.

Autonics Through-Beam Type FT Series Specifications
Model	Ambient Temperature	Cable length (L)	Allowable Bend Radius	Min. Sensing Target^*3	Sensing distance (mm)	Feature
Bolt type
Standard type
FT-310-05	-40 to 70°C	1m (Free cut)	R15	Ø0.5	150^*2	M3
FT-320-05	-40 to 70°C	2m (Free cut)	R15	Ø0.5	150^*2	M3
FTS-320-05	-40 to 70°C	2m (Free cut)	R15 (SUS part R10)	Ø0.5	150^*2	M3 (SUS type, 90mm)
FTS1-320-05						M3 (SUS type, 45mm)
FTS2-320-05						M3 (SUS type, 45mm)
FT-420-10	-40 to 70°C	2m (Free cut)	R30	Ø1	500^*2	M4
FTS-420-10	-40 to 70°C	2m (Free cut)	R30 (SUS part 10)	Ø1	500^*2	M4 (SUS type, 90mm)
FTS2-420-10	-40 to 70°C	2m (Free cut)	R30 (SUS part 10)	Ø1	500^*2	M4 (SUS type, 45mm)
Heat-resistant type
FT-420-10H	-40 to 105°C	2m (Free cut)	R30	Ø1	300^*2	M4
FT-420-15H1	-40 to 150°C	2m (Free cut)	R50	Ø1	500^*2	M4
GT-420-13H2	-40 to 250°C	2m	R25	Ø1	400^*2	M4 (Glass type)
Flexible type^*4
FT-320-05R	-40 to 60°C	2m (Free cut)	R1	Ø0.3	110^*2	M3
FT-420-10R	-40 to 60°C	2m (Free cut)	R1	Ø0.5	500^*2	M4
Break-resistant^*4 Type
FT-320-06B	-40 to 60°C	2m (Free cut)	R5	Ø0.3	110^*2	M3
FT-420-13B	-40 to 60°C	2m (Free cut)	R5	Ø0.6	400^*1	M4
Standard type
Cylinder type
FTC-1520-05	-40 to 70°C	2m (Free cut)	R15	Ø0.5	150^*2	Ø1.5mm
FTC-220-05	-40 to 70°C	2m (Free cut)	R15	Ø0.5	150^*2	Ø2mm
FTCS-220-05	-40 to 70°C	2m (Free cut)	R15 (SUS part 10R)	Ø0.5	150^*2	R15 (SUS part 10R)Ø2mm (SUS type, 15mm)
FTC-320-10	-40 to 70°C	2m (Free cut)	R30	Ø1	150^*2	Ø3mm

Test Equipment General Attributes
Country of Origin	Korea
