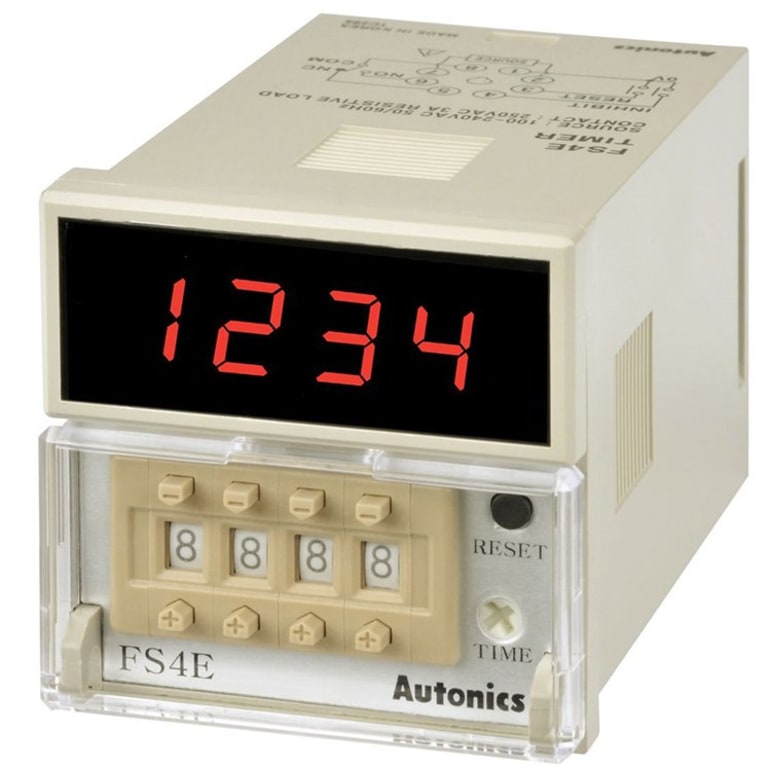

Autonics FS4E-1P2 - 8-Pin Plug Type Digital Timer

Name: Autonics FS4E-1P2 - 8-Pin Plug Type Digital Timer
Brand: Autonics
SKU: AutonicsFS4E-1P2
Price: 132.00 USD
Availability: InStock

0 reviews | Model: Autonics FS4E-1P2

Compare

Timer, Digital, 1/16 DIN, 4-Digit, LED, 8-Mode, Multi-Range, Relay Output, 24VAC 50/60 Hz 24-48 VDC, (socket required)

1/16 DIN, 4-Digit, LED, 8-Mode, Multi-Range, Relay Output, 24VAC 50/60 Hz 24-48 VDC, (socket required)
Memory protection for 10years (using non-volatile semiconductor)
Selectable Up/Down for counting value
Built-in Microprocessor
Upgraded counting speed: 1cps / 30cps / 2kcps / 5kcps
Selectable voltage input (PNP) method or no-voltage input (NPN) method
Decimal point setting (fixed decimal point of display)

View Product Details

Your Price: $132.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics FS4E-1P2 Timer, Digital, 1/16 DIN, 4-Digit, LED, 8-Mode, Multi-Range, Relay Outpu ...	Autonics FS4-1P4 Counter,1 Preset, 1/16 DIN, 4-Digit, Relay Output, 100-240 VAC (socket re ...	Autonics FS5-I4 Counter, Indicator Only, 1/16 DIN, 5-Digit, 100-240VAC 50/60 Hz, (socket r ...	Autonics FS4-1P2 Counter, 1 Preset, 1/16 DIN, 4-Digit, Relay Output, 24VAC 50/60 Hz, 24-48 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics FS4E-1P2

Built-in Microprocessor
Upgraded counting speed: 1cps / 30cps / 2kcps / 5kcps
Selectable voltage input (PNP) method or no-voltage input (NPN) method
Decimal point setting (fixed decimal point of display)

Timer, Digital, 1/16 DIN, 4-Digit, LED, 8-Mode, Multi-Range, Relay Output, 24VAC 50/60 Hz 24-48 VDC, (socket required)

The FSE series digital timers feature a wide time setting range between 0.01 seconds to 9999.9 hours. Simple configuration is possible with the front thumbwheel switches. The 8-pin plug type connection allows easy installation and maintenance. The FSE series timers are available in 4-digit and 5-digit models.

General Specifications
Model		1-stage setting	FS4-1P2	FS4-1P4	---
		Indicator	---	---	FS5-I4
Display digit			4-digit		5-digit
Character size (W×H)			3.8×7.6mm		4×8mm
Power supply			24VAC~50/60Hz, 24-48VDCЗ	100-240VAC~ 50/60Hz
Permissible voltage range			90 to 110% of rated voltage
Power consumption			Max. 3.5VA (24VAC~ 50/60Hz), Max. 2.3W (24-48VDCЗ)	Max. 4.6VA (100-240VAC~ 50/60Hz)	Max. 3.8VA (100-240VAC~50/60Hz)
Max. counting speed for COUNT IN			Selectable 1cps/30cps/2kcps/5kcps (DIP switch)
Return time			Max. 500ms
Min. signal width			RESET: approx. 20ms
Input method			Selectable voltage input (PNP) method or no-voltage input (NPN) method [Voltage input (PNP) method]-input impedance: max. 10.8kΩ, [H]: 5-30VDCЗ, [L]: 0-2VDC [No-voltage input (NPN) method]-short-circuit impedance: max. 470Ω, short-circuit residual voltage: max. 1VDC, open-circuit impedance: min. 100kΩ
One-shot output time			0.05 to 5 sec
Control output	Contact	Type	Instantaneous SPST (1a)		---
		Capacity	250VAC~ 3A, 30VDCЗ 3A resistive load
Relay life cycle		Mechanical	Min. 5,000,000 operations
		Electrical	Min. 100,000 operations (250VAC 3A resistive load)
Insulation resistance			Over 100MΩ (at 500VDC megger)
External power supply			Max. 12VDCЗ ±10% 50mA
Memory retention			Approx. 10 years (non-volatile memory)
Dielectric strength			2,000VAC 50/60Hz for 1 min (between all terminals and case)
Noise immunity		AC voltage	±2kV the square wave noise (pulse width 1μs) by noise simulator
		AC/DC voltage	±500V the square wave noise (pulse width 1μs) by noise simulator
Vibration		Mechanical	0.75mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour
		Malfunction	0.5mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 minutes
Shock		Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
		Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Environment		Ambient temp.	-10 to 55℃, storage: -25 to 65℃
		Ambient humi.	35 to 85%RH, storage: 35 to 85%RH
Protection structure			IP20 (front part, IEC standard)
Approval			CE
Weight^※1			Approx. 130g (approx. 90g)		Approx. 120g (approx. 80g)
※1: The weight includes packaging. The weight in parenthesis is for unit only. ※Environment resistance is rated at no freezing or condensation.
