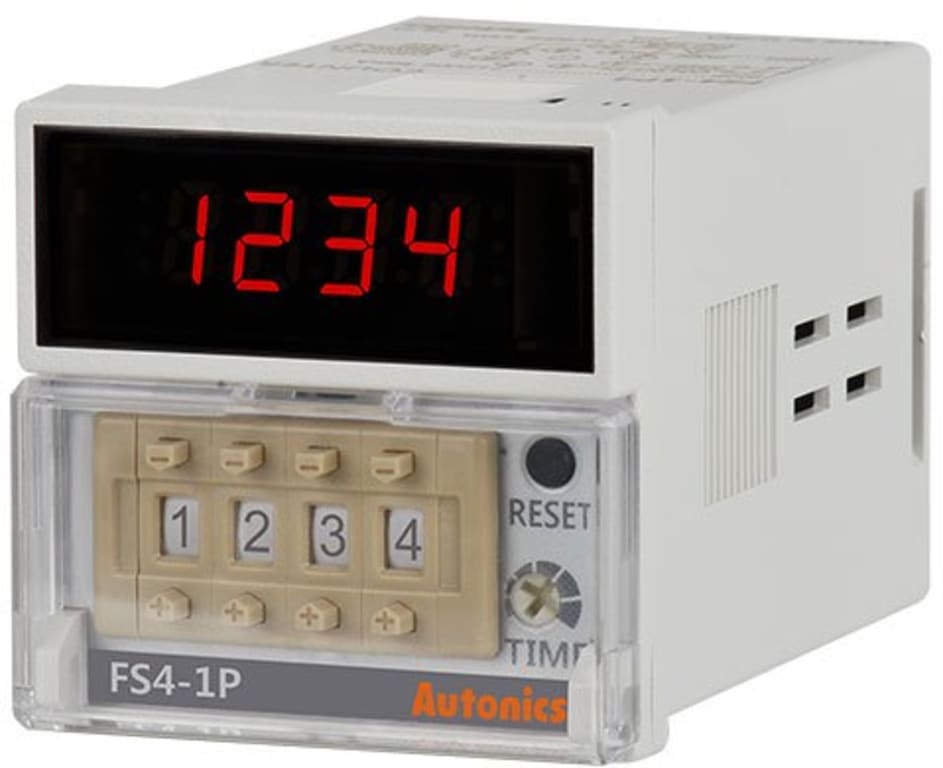

| 8-Pin Plug Type Counter FS Series Specifications |
| Model |
Display digit |
Size |
Output |
Power supply |
| FS4-1P2 |
9999 (4-digit) |
DIN W48xH48mm |
1-stage setting |
24VAC 50/60Hz, 24-48VDC |
| FS4-1P4 |
100-240VAC 50/60Hz |
| FS5-I4 |
99999 (5-digit) |
Indicator |
100-240VAC 50/60Hz |
| *Sockets (PG-08, PS-08(N)) are sold separately. |
| Model |
1-stage setting |
FS4-1P2 |
FS4-1P4 |
— |
| Indicator |
— |
— |
FS5-I4 |
| Display digit |
4-digit |
5-digit |
| Character size (WxH) |
3.8x7.6mm |
4x8mm |
| Power supply |
24VAC~50/60Hz,
24-48VDC= |
100-240VAC~50/60Hz |
| Permissible voltage range |
90 to 110% of rated voltage |
| Power consumption |
Max. 3.5VA
(24VAC~50/60Hz),
Max. 2.3W (24-48VDC=) |
Max. 4.6VA (100-240VAC~50/60Hz) |
Max. 3.8VA (100-240VAC~50/60Hz) |
| Max. counting speed for COUNT IN |
Selectable 1cps/30cps/2kcps/5kcps (DIP switch) |
| Return time |
Max. 500ms |
| Min. signal width |
RESET: approx. 20ms |
| Input method |
Selectable voltage input (PNP) method or no-voltage input (NPN) method
[Voltage input (PNP) method]-input impedance: max. 10.8kΩ,
[H]: 5-30VDC=, [L]: 0-2VDC
[No-voltage input (NPN) method]-short-circuit impedance: max. 470Ω,
short-circuit residual voltage: max. 1VDC,
open-circuit impedance: min. 100kΩ |
| One-shot output time |
0.05 to 5 sec |
| Control output |
Contact |
Type |
Instantaneous SPST (1a) |
— |
| Capacity |
250VAC~3A resistive load |
| Relay life cycle |
Mechanical |
Min. 5,000,000 operations |
| Electrical |
Min. 100,000 operations (250VAC 3A resistive load) |
| Insulation resistance |
Over 100MΩ (at 500VDC megger) |
| External power supply |
Max. 12VDC= ±10% 50mA |
| Memory retention |
Approx. 10 years (non-volatile memory) |
| Dielectric strength |
2,000VAC 50/60Hz for 1 min (between all terminals and case) |
| Noise immunity |
AC voltage |
| Vibration |
Mechanical |
0.75mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour |
| Malfunction |
0.5mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 minutes |
| Shock |
Mechanical |
300m/s2 (approx. 30G) in each X, Y, Z direction for 3 times |
| Malfunction |
100m/s2 (approx. 10G) in each X, Y, Z direction for 3 times |
| Environment |
Ambient temperature |
-10 to 55°C, storage: -25 to 65°C |
| Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
| Protection structure |
IP20 (front part, IEC standard) |
| Weight*1 |
Approx. 130g (approx. 90g) |
| *1: The weight includes packaging. The weight in parenthesis is for unit only. |
| *Environment resistance is rated at no freezing or condensation. |
