Autonics F8A 8 Digit Up/Down counter

Name: Autonics F8A 8 Digit Up/Down counter
Brand: Autonics
SKU: AutonicsF8A
Price: 190.95 USD
Availability: InStock

0 reviews | Model: Autonics F8A

Compare

Counter,1 Preset, W144 X H72 mm, 8-Digit, Relay Output, 100-240 VAC

1 Preset, W144 X H72 mm, Relay Output
8 digits counter: Selectable Up, Down, Up/Down mode
Counting speed : 1cps, 30cps, 2kcps, 5kcps
Selectable voltage input(PNP) or no-voltage input(NPN)
Decimal point setting(Fixed decimal point of display)
Wide range of power supply: 100-240 VAC 50/60Hz

View Product Details

List Price: $190.95

In Stock:

View Payment Options

Recommended for you

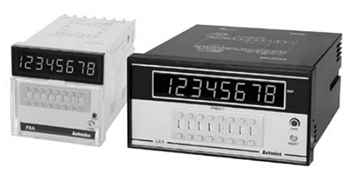

Autonics F/L Series 8 Digit Up/Down Counter

DIN W72×H72

Counter,1 Preset, W144 X H72 mm, 8-Digit, Relay Output, 100-240 VAC.

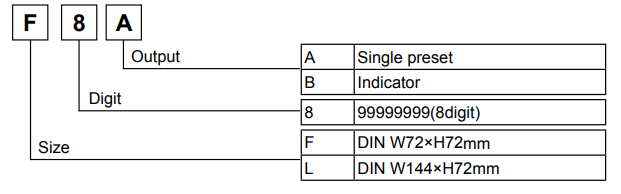

Order Information

Dimensions

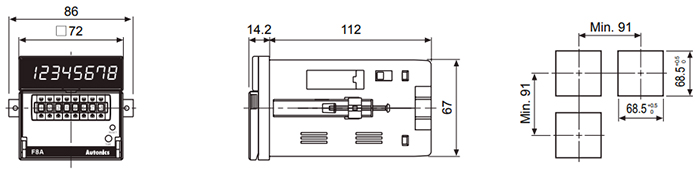

• F Series	• Panel cut-out

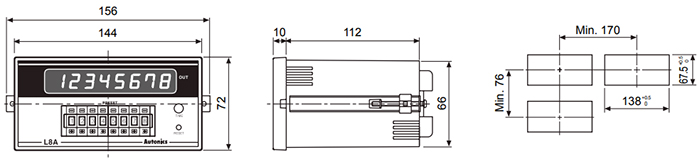

• L Series	• Panel cut-out

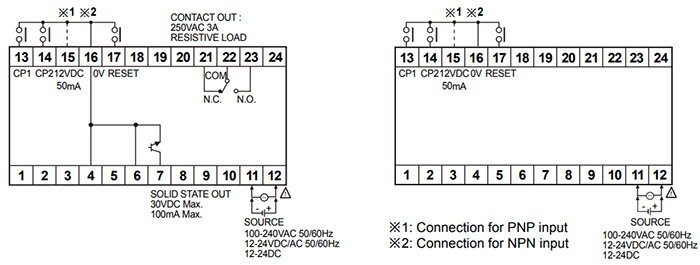

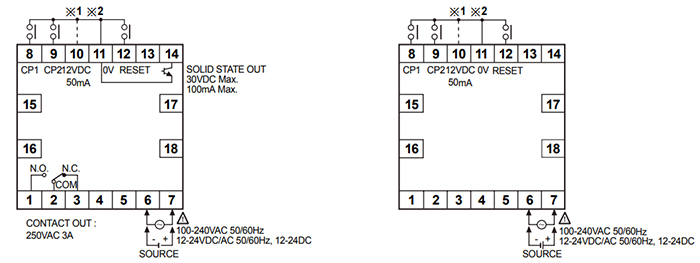

Connections

• F8A	• F8B

• L8A	• L8B

General Specifications
Model	Single preset		F8A	L8A
	Totalizer(Indicator)		F8B	L8B
Digit			8digit
Digit size			W4×H8mm	W6.3×H10mm
Power supply			100-240VAC 50/60Hz, 12-24VAC/DC(Option
Allowable voltage range			90 to 110% of rated voltage
Power consumption	AC Voltage type		Indicator : Approx. 5.4VA Single preset : Approx. 6.1VA(240VAC 50/60Hz)
	AC/DC Voltage type		Indicator : Approx. 5.5VA Single preset : Approx. 6.3VA(240VAC 50/60Hz) Indicator : Approx. 2.6W Single preset : Approx. 3.1W(24VDC)
Max. counting speed			Selectable 1cps/30cps/2kcps/5kcps by internal DIP switch
Min. signal width	RESET input		Approx. 20ms
Input type	CP1, CP2 Input		[Voltage input] Input impedance : 5.4kΩ, "H" level voltage : 5-30VDC, "L" level voltage : 0-2VDC [No-Voltage input] Impedance at short-circuit : Max. 1kΩ, Residual voltage at short-circuit : Max. 2VDC, Impedance at open-circuit : Min. 100kΩ
	RESET input
One-shot output time			0.05 to 5sec
Control output	Contact	Type	Single preset : SPDT(1c)
		Capacity	250VAC 3A resistive load
	Solid state	Type	Single preset type : 1 NPN open collector
		Capacity	30VDC Max. 100mA Max.
Memory protection			Approx. 10 years(When using non-volatile semiconductor memory)
External power			12VDC±10% 50mA Max.
Insulation resistance			100MΩ(at 500VDC megger)
Noise strength	AC power		±2kV the square wave noise(pulse width : 1㎲) by the noise simulator
	DC power		±500V the square wave noise(pulse width : 1㎲) by the noise simulator
Vibration	Mechanical		0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1 hour
	Malfunction		0.5mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes
Shock	Mechanical		300m/s²(approx. 30G) in each of X, Y, Z directions for 3 times
	Malfunction		100m/s²(approx. 10G) iin each of X, Y, Z directions for 3 times
Relay life cycle	Mechanical		Min. 10,000,000 operations
	Electrical		Min. 100,000 operations(250VAC 3A at resistive load)
Environment	Ambient temperature		-10 to 55℃, storage: -25 to 65℃
	Ambient humidity		35 to 85%RH, storage: 35 to 85%RH
Unit weight			F8A : Approx. 287g F8B : Approx. 253g	L8A : Approx. 500g L8B : Approx. 446g
※Environment resistance is rated at no freezing or condensation.
