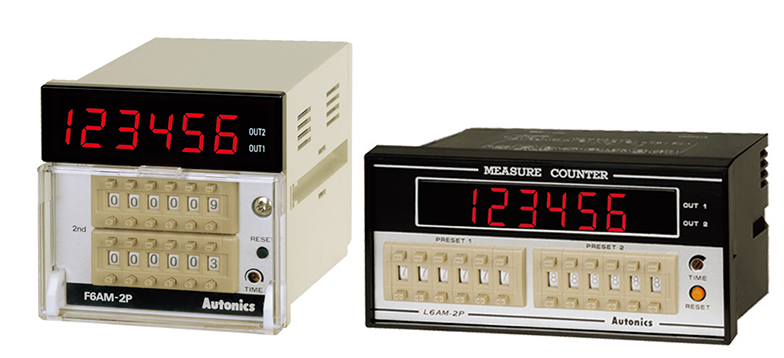

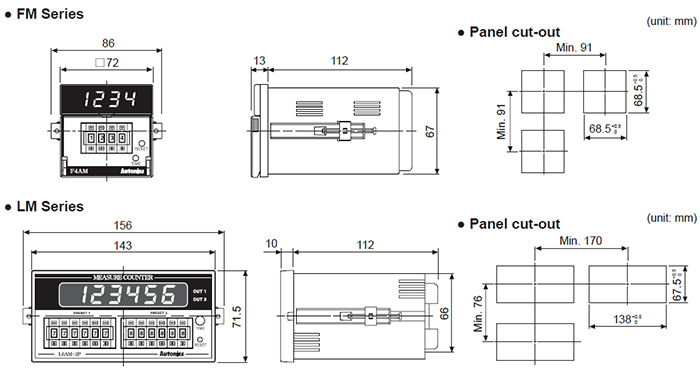

| Autonics FM/LM Series General Specifications |

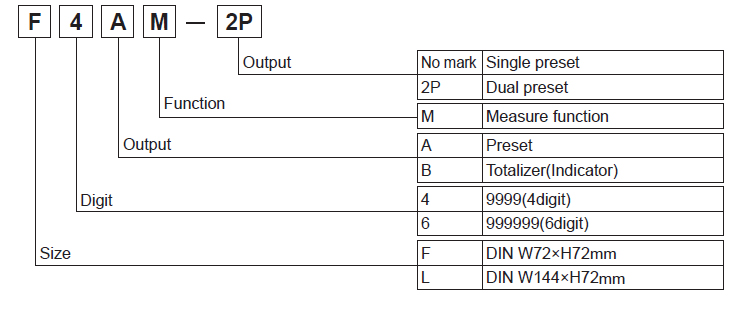

| Model |
Single preset |
F4AM |
F6AM |
----- |
----- |
| Dual preset |
F4AM-2P |
F6AM-2P |
L4AM-2P |
L6AM-2P |
| Totalizer(Indicator) |
F4BM |
F6BM |
L4BM |
L6BM |
| Digit |
4digit |
6digit |
4digit |
6digit |
| Digit size |
W8×H14mm |
W4×H8mm |
W8×H14mm |
| Power Supply |
AC voltage |
100-240VAC 50/60Hz |
| AC/DC voltage |
12-24VAC 50/60Hz, 12-24VDC |
| Allowable voltage range |
90 to 110% of rated voltage |
| Power consumption |
AC Voltage type |
• Indicator: Max. 4.7VA • Single preset: Max. 5.6VA • Dual preset: Max. 6.5VA(100-240VAC 50/60Hz) |
| AC/DC Voltage type |
• Indicator: Max. 5.1VA • Single preset: Max. 6VA • Dual preset: Max. 6.5VA(12-24VAC 50/60Hz)
• Indicator: Max. 2.7W • Single preset: Max. 3.3W • Dual preset: Max. 3.8W(12-24VDC) |
| Max. counting speed |

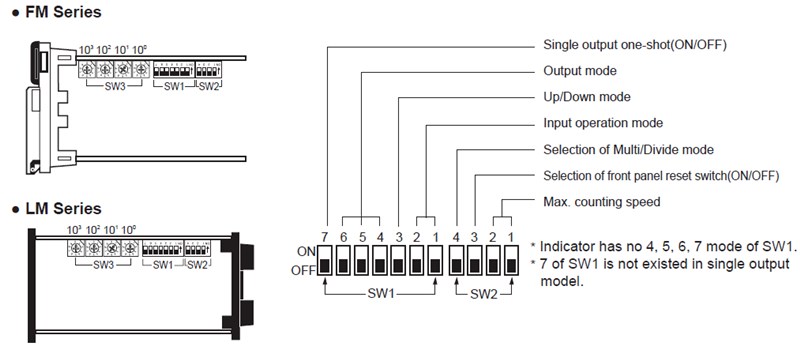

Selectable 1cps/30cps/2kcps/5kcps by internal DIP switch |
| Min. signal width |
Approx. 20ms |
Input
Type |
CP1,CP2 input
RESET input |
Input logic is selectable
[Voltage input] Input impedance : 5.4kΩ, "H" level voltage : 5-30VDC, "L" level voltage : 0-2VDC
[No-Voltage input] Impedance at short-circuit : Max. 1kΩ, Residual voltage at short-circuit : Max. 2VDC,
Impedance at open-circuit : Min. 100kΩ |
| One-shot output time |
• Single preset : 0.5sec.
• Dual preset : 0.05 to 5sec. |
| Insulation resistance |
100MΩ(at 500VDC megger) |
| Dielectric strength |
2000VAC 50/60Hz for 1 minute |
Noise
strength |
AC power |
±2kV the square wave noise(pulse width : 1㎲) by the noise simulator |
| DC power |
±500V the square wave noise(pulse width : 1㎲) by the noise simulator |
| Vibration |
Mechanical |
0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1 hour |
| Malfunction |
0.5mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes |
| Shock |
Mechanical |
300m/s²(approx. 30G) in each of X, Y, Z directions for 3 times |
| Malfunction |
100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times |
Relay
life cycle |
Mechanical |
Min. 10,000,000 operations |
| Electrical |
Min. 100,000 operations(250VAC 3A at resistive load) |
| Environment |
Ambient temperature |
-10 to 55℃, storage: -25 to 65℃ |
| Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
Unit
weight |
AC Voltage type |
F4AM: Approx. 273g, F6AM: Approx. 280g, F4AM-2P: Approx. 275g, F6AM-2P: Approx. 282g,
F4BM: Approx. 229g, F6BM: Approx. 236g, L4AM: Approx. 505g, L6AM-2P: Approx. 533g,
L4AM-2P: Approx. 438g, L6BM: Approx. 445g |
| AC/DC Voltage type |
F4AM: Approx. 268g, F6AM: Approx. 275g, F4AM-2P: Approx. 270g, F6AM-2P: Approx. 287g,
F4BM: Approx. 224g, F6BM: Approx. 231g, L4AM-2P: Approx. 511g, L6AM-2P: Approx. 538g,
L4BM-2P: Approx. 444g, L6BM: Approx. 450g |
