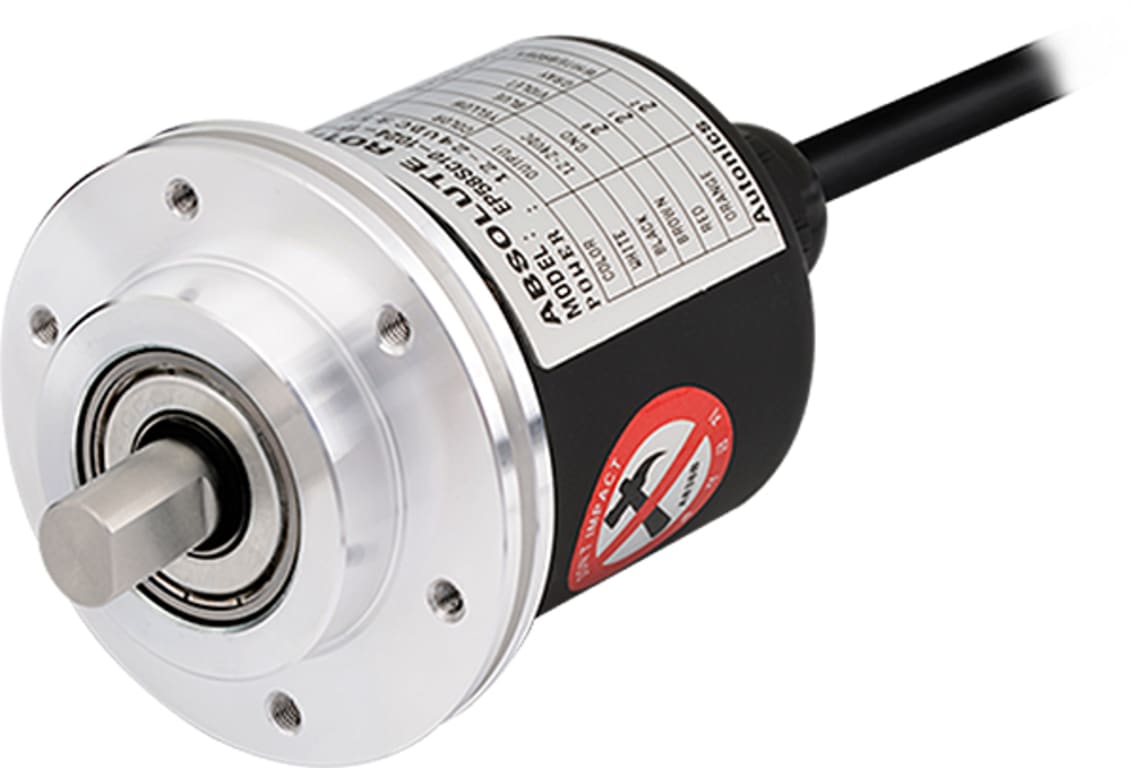

Autonics EP58SC10-256-3F-N-24 - 58 mm Single-Turn Absolute Rotary Encoder (Clamping Shaft Type)

Name: Autonics EP58SC10-256-3F-N-24 - 58 mm Single-Turn Absolute Rotary Encoder (Clamping Shaft Type)
Brand: Autonics
SKU: AutonicsEP58SC10-256-3F-N-24
Price: 407.00 USD
Availability: InStock

0 reviews | Model: Autonics EP58SC10-256-3F-N-24

Compare

Encoder, Absolute, 58mm Body, 10mm Shaft, 256 Divisions Per Rev, Gray Code, NPN Output, CW Increase, 12-24 VDC

58mm Body, 10mm Shaft, 256 Divisions Per Rev, Gray Code, NPN Output, CW Increase, 12-24 VDC
Ø58mm Flange type
Applicable to various mounting environments
Various output code: BCD, Binary, Gray code (Customizable)
Various and high resolution (720, 1024-divisions)

View Product Details

Your Price: $407.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics EP58SC10-256-3F-N-24

Ø58mm Flange type
Applicable to various mounting environments
Various output code: BCD, Binary, Gray code (Customizable)
Various and high resolution (720, 1024-divisions)

Encoder, Absolute, 58mm Body, 10mm Shaft, 256 Divisions Per Rev, Gray Code, NPN Output, CW Increase, 12-24 VDC

The EP58SC series single-turn absolute rotary encoders feature Ø58 mm size flanges with Ø10 mm clamping shaft designs. The single-turn absolute rotary encoders are available in various resolutions (up to 1024 divisions). The series is also available in various output codes including BCD, binary, and Gray codes.

Autonics EP58 Series General Specifications
Type			Diameter Ø58mm absolute rotary encoder
Resolution ^*1			720, 360, 180, 90, 45-division				1024, 512, 256, 128, 64-division
Electrical specification	Output Code			BCD Code	Binary Code	Gray Code		BCD Code	Binary Code	Gray Code
	Output phase/Output angle		720-division	TS:Signal Pulse (11bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:1°±25'	1024-division	TS:Signal Pulse (13bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.703°±15'
			720-division	TS:Signal Pulse (11bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:1°±25'	1024-division	TS:Signal Pulse (13bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.703°±15'
			720-division	TS:Signal Pulse (11bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:1°±25'	1024-division	TS:Signal Pulse (13bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.703°±15'
			720-division	TS:Signal Pulse (11bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:1°±25'	1024-division	TS:Signal Pulse (13bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.703°±15'
			720-division	TS:Signal Pulse (11bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:0.5°±25'	TS:Signal Pulse (10bit) TS:1°±25'	1024-division	TS:Signal Pulse (13bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.3515°±15'	TS:Signal Pulse (10bit) TS:0.703°±15'
	Control Output	PNP open collector output	Output voltage: Min. (Power supply-1.5VDC), Load current: Max. 32mA
		NPN open collector output	Load current: Max. 32mA, Residual voltage: Max. 1VDC
	Response time (Rise/Fall)		Ton=800nsec, Toff=Max. 800nsec (Cable: 2m, I sink = 32mA)
	Max. Response frequency		35kHz
	Power supply		5VDC ±5% (Ripple P-P: Max. 5%) 12-24VDC ±5% (Ripple P-P: Max. 5%)
	Current consumption		Max. 100mA (disconnection of the load)
	Insulation resistance		Min. 100MΩ (at 500VDC megger between all terminals and case)
	Dielectric strength		750VAC 50/60Hz for 1 minute (Between all terminals and case)
	Connection		Cable type (Cable gland)
Mechanical Specification	Starting torque		SC/SS type: Max. 40gf·cm (0.004N·m) HB type: Max. 90gf·cm (0.009N·m)
	Moment of inertia		SC/SS type: Max. 15g·cm² (1.5×10 ^-6 kg·m²) HB type: Max. 20g·cm² (2.0×10 ^-6 kg·m²)
	Shaft loading		SC/SS type: Radial: 10kg·f, Thrust: 2.5kg·f HB type: Radial: 2kg·f, Thrust: 1kg·f
	Max. allowable revolution^*2		3000rpm
Vibration			1.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Shock			Approx. Max. 50G
Environment	Ambient temperature		-10 to 70 °C, storage: -25 to 85 °C
	Ambient humidity		35 to 85%RH, storage: 35 to 90%RH
Protection structure			IP50 (IEC standard)
Cable			750VAC 50/60Hz for 1 minute (Between all terminals and case)
Accessories			Ø10mm (SC type)/Ø6mm (SS type) coupling, Fixing bracket
Unit weight			Clamping: Approx. 435g Synchro: Approx. 415g Built-in: Approx. 410g
1: Not indicated resolutions are customizable. Environment resistance is rated at no freezing or condensation. *2:Make sure that. Max response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm)=Max. response frequency\|Resolution x 60 sec]
