Autonics E68S15-1024-6-L-5 - Rotary Encoder, Incremental, 68mm, 15mm Shaft, 1024 PPR, 5VDC

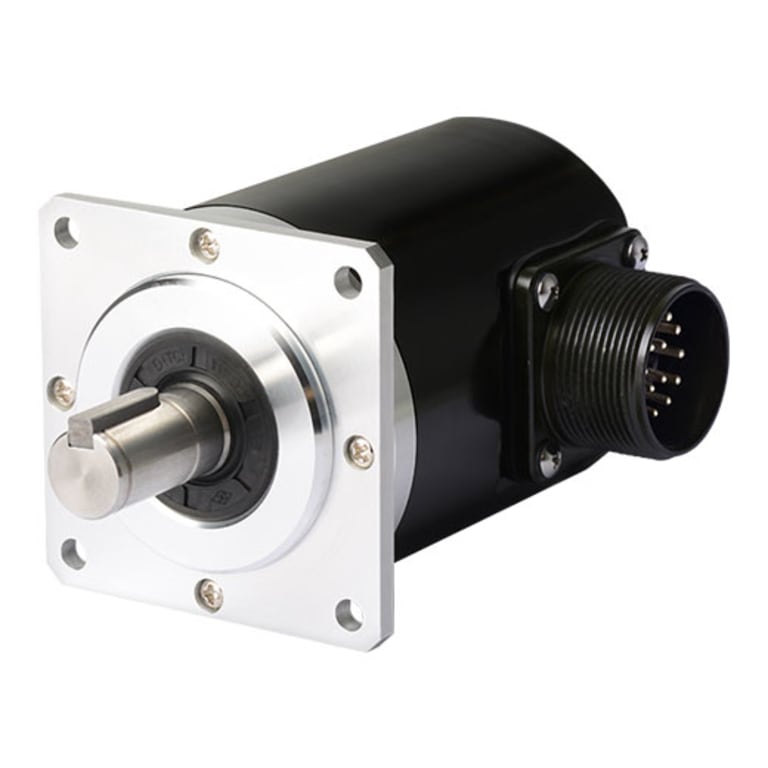

Name: Autonics E68S15-1024-6-L-5 - Rotary Encoder, Incremental, 68mm, 15mm Shaft, 1024 PPR, 5VDC
Brand: Autonics
SKU: AutonicsE68S15-1024-6-L-5
Price: 436.00 USD
Availability: InStock

0 reviews | Model: Autonics E68S15-1024-6-L-5

Compare

Encoder, Incremental, 8mm, 15mm Shaft, 1024 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC

1024 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC
Ø68mm, shaft diameter: Ø15mm
High speed response frequency: 180kHz
Radial connector type
Suitable for tooling machinery
Protection structure IP65 (IEC standard) (tentative water-proof/oil)
High shaft loading capabilities (allowable load weight is 10kgf)

View Product Details

Your Price: $436.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics E68S15-1024-6-L-5

Radial connector type
Suitable for tooling machinery
Protection structure IP65 (IEC standard) (tentative water-proof/oil)
High shaft loading capabilities (allowable load weight is 10kgf)

Encoder, Incremental, 8mm, 15mm Shaft, 1024 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC

The E68S series incremental rotary encoders feature Ø68 mm size housings with high-strength Ø15 mm solid shafts. The units can operate with radial load up to 20 kgf and thrust load up to 10 kgf. The series is ideal for operation with main shafts of machine tools. The radial connector type encoders feature IP65 protection rating for safe operation in various environments.

General Specifications
Item		Shaft Type Ø68mm Incremental Rotary Encoder
Resolution (PPR)¹		500, 600, 1024
Electrical specification	Output phase	A, A, B, B, Z, Z phase
	Phase difference of output	Phase difference between A and B: T /4 ± T /8 (T=1 cycle of A phase)
	Control output	• [Low] - Load current: max. 20mA, residual voltage: max. 0.5VDC • [High] - Load current: max. -20mA, output voltage: min. 2.5VDC
	Response time (rise/fall)	Max. 0.5μs (cable: 1m, I sink = 20mA)
	Power supply	5VDC ± 5% (ripple P-P: max. 5%)
	Max. response frequency	180kHz
	Current consumption	Max. 50mA (disconnection of the load)
	Insulation resistance	Over 100MΩ (at 500VDC megger) (between all terminals and case)
	Dielectric strength	750VAC 50/60Hz for 1 minute (between all terminals and case)
	Connection	Radial connector type (MS3102A20-29P)
Mechanical specification	Starting torque	Max. 1.5kgf·cm (0.15N·m)
	Shaft loading	Radial: max. 20kgf, Thrust: max. 10kgf
	Max. allowable revolution²	6,500rpm
Vibration		1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock		Approx. max. 50G
Environment	Ambient temperature	-10 to 70°C, storage: -25 to 85°C
Environment	Ambient humidity	35 to 85%RH, storage: 35 to 90%RH
Protection structure		IP65 (IEC standard)
Unit weight		Approx. 550g
1: Not indicated resolutions are available customizable. 2: Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm)= Max. response frequency / Resolution × 60 sec] *Environment resistance is rated at no freezing or condensation.
