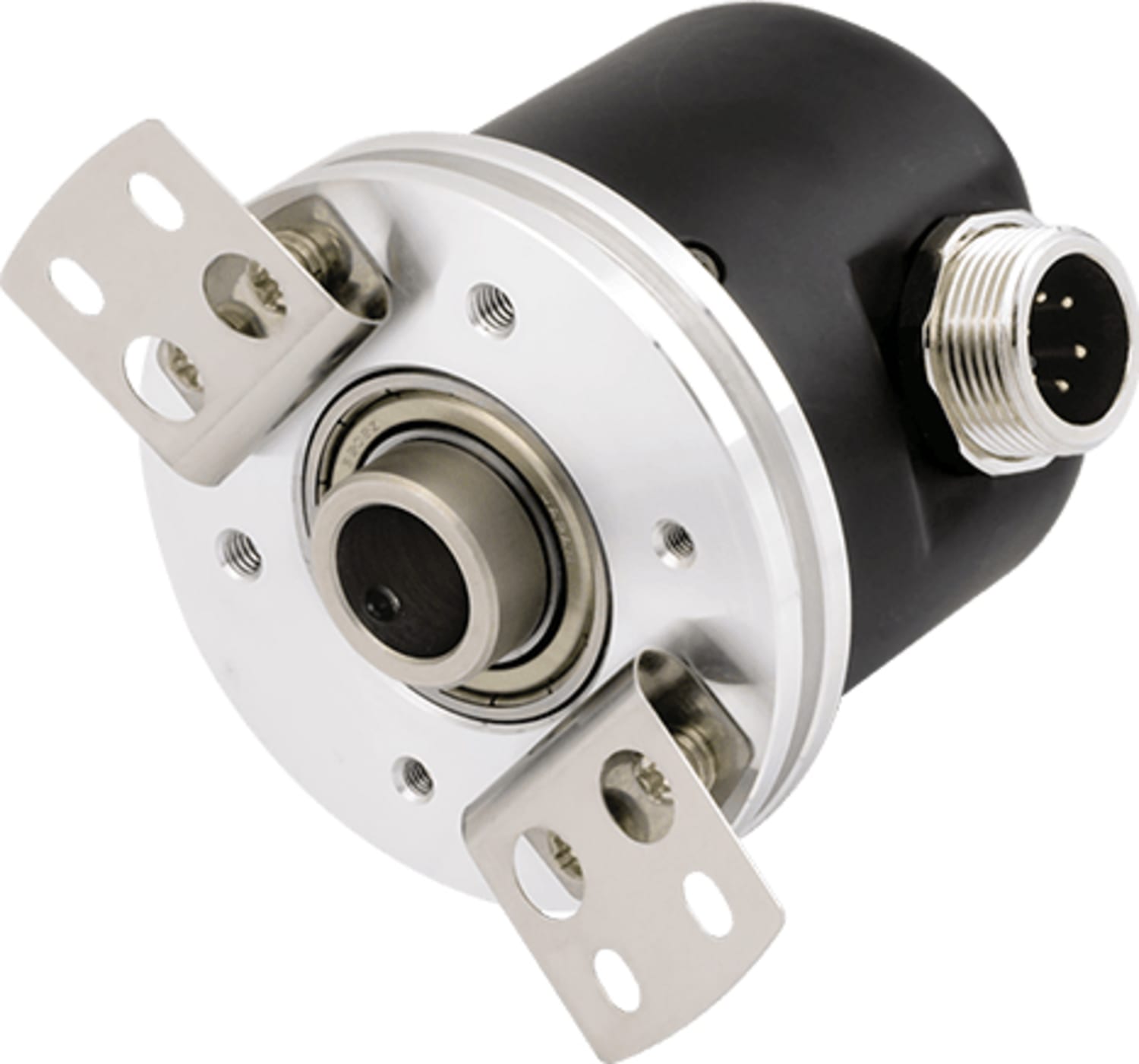

Autonics E58HB12-3600-6-L-5-CS - 58mm Incremental Rotary Encoders (Blind Hollow Shaft Type)

0 reviews | Model: Autonics E58HB12-3600-6-L-5-CS

Encoder, Incremental, Diameter 58mm, 12mm Hollow built-in, 3600 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC, Side outgoing Connector

  • Shaft inner diameter: Ø12mm
  • Connection type: Radial connector type
  • Control output: Line Driver
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 90gf.cm (max. 0.00882N.m)
  • Resolution: 3600P/R
  • Power supply: 5VDC ±5% (ripple P-P: max. 5%)
  • Protection structure: IP50
View Product Details

Your Price: $342.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • View Payment Options

Have a question? Ask an expert.

Live Chat 877.571.7901 Email

Items in This Series

Autonics E58HB12-3600-6-L-5-CSAutonics E58SC10-100-3-T-24Autonics E58SC10-5000-3-T-24Autonics E58SC10-500-3-T-24Autonics E58SC10-1000-3-N-24Autonics E58SC10-1000-6-L-5Autonics E58SC10-1024-3-T-24Autonics E58SC10-2000-3-T-24Autonics E58SC10-2000-3-V-24Autonics E58SC10-2500-3-T-24Autonics E58SC10-250-3-T-24-CAutonics E58SC10-3000-6-L-5Autonics E58SC10-360-3-T-24Autonics E58SC10-360-6-L-5-CSAutonics E58SC10-5000-6-L-5Autonics E58SC10-6000-6-L-5Autonics E58SC10-8000-6-L-5-CAutonics E58SC10-2000-6-L-5-CSAutonics E58SC10-5000-3-T-24-CRAutonics E58SC10-5000-3-T-24-CSAutonics E58SC10-6000-6-L-5-CSAutonics E58H12-360-3-T-24Autonics E58H12-600-3-T-24-CAutonics E58SC10-1024-3-V-24Autonics E58SC10-2500-3-V-24Autonics E58SS6-100-3-V-24Autonics E58SS6-20-3-T-24Autonics E58SS6-2500-6-L-5Autonics E58SS6-2000-3-N-5Autonics E58SS6-1024-3-T-24Autonics E58SC10-500-3-T-5Autonics E58SC10-360-3-N-24Autonics E58SC10-2000-3-N-24Autonics E58SC10-1024-6-L-5Autonics E58HB12-360-3-N-24Autonics E58SC10-3000-3-N-5-CRAutonics E58SC10-1024-6-L-5-CSAutonics E58H12-1024-6-L-5Autonics E58H12-1-2-T-24
ProductAutonics E58HB12-3600-6-L-5-CS Encoder, Incremental, Diameter 58mm, 12mm Hollow built-in, ...Autonics E58SC10-100-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 100 PPR, A, B, ...Autonics E58SC10-5000-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 5000 PPR, A, ...Autonics E58SC10-500-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 500 PPR, A, B, ...Autonics E58SC10-1000-3-N-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 1000PPR, A, B ...Autonics E58SC10-1000-6-L-5 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 1000 PPR, A, A ...Autonics E58SC10-1024-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 1024 PPR, A, ...Autonics E58SC10-2000-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2000 PPR, A, ...Autonics E58SC10-2000-3-V-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2000 PPR, A, ...Autonics E58SC10-2500-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2500 PPR, A, ...Autonics E58SC10-250-3-T-24-C Encoder, Incremental, 8mm, 10mm Shaft Clamping, 250 PPR, A, ...Autonics E58SC10-3000-6-L-5 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 3000 PPR, A, A ...Autonics E58SC10-360-3-T-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 360 PPR, A, B, ...Autonics E58SC10-360-6-L-5-CS Encoder, Incremental, 8mm, 10mm Shaft Clamping, 600 PPR, A, ...Autonics E58SC10-5000-6-L-5 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 5000 PPR, A, A ...Autonics E58SC10-6000-6-L-5 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 6000 PPR, A, A ...Autonics E58SC10-8000-6-L-5-C Encoder, Incremental, 8mm, 10mm Shaft Clamping, 8000 PPR, A, ...Autonics E58SC10-2000-6-L-5-CS Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2000 PPR, A ...Autonics E58SC10-5000-3-T-24-CR Encoder, Incremental, 8mm, 10mm Shaft Clamping, 5000 PPR, ...Autonics E58SC10-5000-3-T-24-CS Encoder, Incremental, 8mm, 10mm Shaft Clamping, 5000 PPR, ...Autonics E58SC10-6000-6-L-5-CS Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2000 PPR, A ...Autonics E58H12-360-3-T-24 Encoder, Incremental, 8mm, 12mm Hollow Shaft, 360 PPR, A, B, Z, ...Autonics E58H12-600-3-T-24-C Encoder, Incremental, Cable outgoing connector type, 8mm, 12m ...Autonics E58SC10-1024-3-V-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 1024 PPR, A, ...Autonics E58SC10-2500-3-V-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2500 PPR, A, ...Autonics E58SS6-100-3-V-24 Encoder, Incremental, 8mm, 6mm Shaft Synchro, 100 PPR, A, B, Z, ...Autonics E58SS6-20-3-T-24 Encoder, Incremental, 8mm, 6mm Shaft Synchro, 20 PPR, A, B, Z, T ...Autonics E58SS6-2500-6-L-5 Encoder, Incremental, 8mm, 6mm Shaft Synchro, 2500 PPR, A, A/, ...Autonics E58SS6-2000-3-N-5 Encoder, Incremental, 8mm, 6mm Shaft Synchro, 2000 PPR, A, B, Z ...Autonics E58SS6-1024-3-T-24 Encoder, Incremental, 8mm, 6mm Shaft Synchro, 1024 PPR, A, B, ...Autonics E58SC10-500-3-T-5 Encoder, Incremental, Diameter 58mm, 10mm Shaft Clamping, 500 P ...Autonics E58SC10-360-3-N-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 360PPR, A, B, ...Autonics E58SC10-2000-3-N-24 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 2000 PPR, A, ...Autonics E58SC10-1024-6-L-5 Encoder, Incremental, 8mm, 10mm Shaft Clamping, 1024 PPR, A, A ...Autonics E58HB12-360-3-N-24 Encoder, Incremental, 8mm, 12mm Hollow built-in, 360 PPR, A, A ...Autonics E58SC10-3000-3-N-5-CR Encoder, Incremental, 10mm Shaft Clamping, 3000 PPR, A, B, ...Autonics E58SC10-1024-6-L-5-CS Encoder, Incremental, 8mm, 10mm Shaft Clamping, 1024 PPR, A ...Autonics E58H12-1024-6-L-5 Encoder, Incremental, 12mm Hollow Shaft, 1204 PPR, A, A/, B, B/ ...Autonics E58H12-1-2-T-24 Encoder, Incremental, Diameter 58mm, 12mm Hollow Shaft, 1 PPR, A, ...
