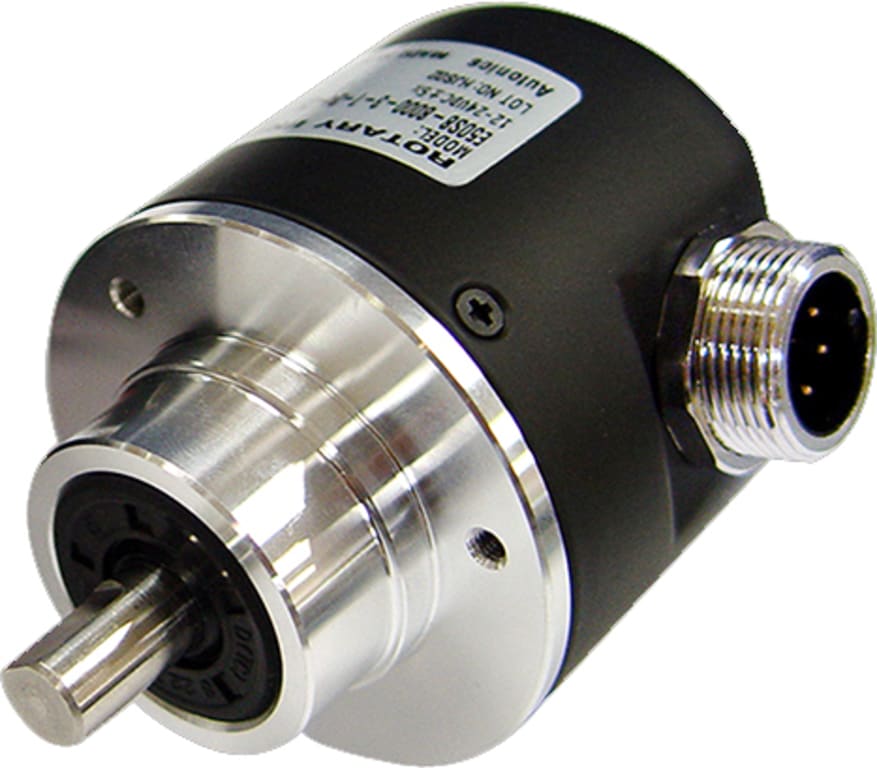

Autonics E50S8-2000-6-L-5-C - Ø50mm Incremental Rotary Encoder, Shaft Type, 2000 P/R, Line Driver Output, Axial Cable Connector Type

Name: Autonics E50S8-2000-6-L-5-C - Ø50mm Incremental Rotary Encoder, Shaft Type, 2000 P/R, Line Driver Output, Axial Cable Connector Type
Brand: Autonics
SKU: AutonicsE50S8-2000-6-L-5-C
Price: 286.00 USD
Availability: InStock

0 reviews | Model: Autonics E50S8-2000-6-L-5-C

Compare

Encoder, Incremental, 0mm, 8mm Shaft, 2000 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC, Axial cable connector Type

Ø50mm housing, shaft type
Shaft outer diameter: Ø8mm
Resolution (P/R): 2000
Output phase: A,/A, B,/B, Z,/Z
Control output: Line driver output
Power supply: 5VDC ±5%
Cable: Axial cable connector type
Accurate measurement of angle, position, revolution, speed, acceleration, and distance

View Product Details

Your Price: $286.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics E50S8-2000-6-L-5-C Encoder, Incremental, 0mm, 8mm Shaft, 2000 PPR, A, A/, B, B/, ...	Autonics E50S8-1000-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 1000 PPR, A, B, Z, NPN op ...	Autonics E50S8-1000-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 1000 PPR, A, B, Z, Totem p ...	Autonics E50S8-1000-3-V-24 Encoder, Incremental, 0mm, 8mm Shaft, 1000 PPR, A, B, Z, Voltag ...	Autonics E50S8-1024-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, B, Z, Totem ...	Autonics E50S8-2000-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 2000 PPR, A, B, Z, Totem ...	Autonics E50S8-2000-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 2000 PPR, A, B, Z, Totem p ...	Autonics E50S8-2000-6-L-5 Encoder, Incremental, 0mm, 8mm Shaft, 2000 PPR, A, A/, B, B/, Z, ...	Autonics E50S8-2048-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 2048 PPR, A, B, Z, NPN op ...	Autonics E50S8-2500-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 2500 PPR, A, B, Z, Totem ...	Autonics E50S8-3600-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 3600 PPR, A, B, Z, Totem ...	Autonics E50S8-5000-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 5000 PPR, A, B, Z, NPN op ...	Autonics E50S8-5000-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 5000 PPR, A, B, Z, Totem ...	Autonics E50S8-8000-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 8000 PPR, A, B, Z, Totem ...	Autonics E50S8-400-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 400 PPR, A, B, Z, Totem po ...	Autonics E50S8-360-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 360 PPR, A, B, Z, NPN open ...	Autonics E50S8-100-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 100 PPR, A, B, Z, Totem po ...	Autonics E50S8-1024-6-L-24 Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, A/, B, B/, Z ...	Autonics E50S8-200-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 200 PPR, A, B, Z, NPN open ...	Autonics E50S8-200-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 200 PPR, A, B, Z, Totem po ...	Autonics E50S8-60-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 60 PPR, A, B, Z, NPN open c ...	Autonics E50S8-600-3-T-24-C Encoder, Incremental, 0mm, 8mm Shaft, 600 PPR, A, B, Z, Totem ...	Autonics E50S8-1024-6-L-5 Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, A/, B, B/, Z, ...	Autonics E50S8-120-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 120 PPR, A, B, Z, Totem po ...	Autonics E50S8-150-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 150 PPR, A, B, Z, Totem po ...	Autonics E50S8-360-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 360 PPR, A, B, Z, Totem po ...	Autonics E50S8-500-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 500 PPR, A, B, Z, NPN open ...	Autonics E50S8-500-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 500 PPR, A, B, Z, Totem po ...	Autonics E50S8-60-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 60 PPR, A, B, Z, Totem pole ...	Autonics E50S8-600-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 600 PPR, A, B, Z, Totem po ...	Autonics E50S8-3000-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 3000 PPR, A, B, Z, Totem ...	Autonics E50S8-5000-6-L-5 Encoder, Incremental, 0mm, 8mm Shaft, 5000 PPR, A, A/, B, B/, Z, ...	Autonics E50S8-100-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 100 PPR, A, B, Z, Totem pol ...	Autonics E50S8-1-2-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 1 PPR, A, B, Z, NPN open col ...	Autonics E50S8-20-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 20 PPR, A, B, Z, Totem pole ...	Autonics E50S8-250-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 250 PPR, A, B, Z, NPN open ...	Autonics E50S8-250-3-N-5 Encoder, Incremental, 0mm, 8mm Shaft, 250 PPR, A, B, Z, NPN open ...	Autonics E50S8-250-3-V-24 Encoder, Incremental, 0mm, 8mm Shaft, 250 PPR, A, B, Z, Voltage ...	Autonics E50S8-25-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 25 PPR, A, B, Z, Totem pole ...	Autonics E50S8-256-3-N-24 Encoder, Incremental, Diameter 50mm, 8mm Shaft, 256 PPR, A, B, Z ...	Autonics E50S8-256-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 256 PPR, A, B, Z, Totem po ...	Autonics E50S8-30-3-N-5 Encoder, Incremental, 0mm, 8mm Shaft, 30 PPR, A, B, Z, NPN open co ...	Autonics E50S8-30-3-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 30 PPR, A, B, Z, Totem pole ...	Autonics E50S8-400-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 400 PPR, A, B, Z, NPN open ...	Autonics E50S8-400-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 400 PPR, A, B, Z, Totem pol ...	Autonics E50S8-500-3-N-5 Encoder, Incremental, 0mm, 8mm Shaft, 500 PPR, A, B, Z, NPN open ...	Autonics E50S8-500-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 500 PPR, A, B, Z, Totem pol ...	Autonics E50S8-50-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 50 PPR, A, B, Z, NPN open c ...	Autonics E50S8-50-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 50 PPR, A, B, Z, Totem pole ...	Autonics E50S8-512-3-V-24 Encoder, Incremental, 0mm, 8mm Shaft, 512 PPR, A, B, Z, Voltage ...	Autonics E50S8-5-2-T-24 Encoder, Incremental, 0mm, 8mm Shaft, 5 PPR, A, B, Totem pole outp ...	Autonics E50S8-600-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 600 PPR, A, B, Z, NPN open ...	Autonics E50S8-600-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 600 PPR, A, B, Z, Totem pol ...	Autonics E50S8-600-3-N-5 Encoder, Incremental, 0mm, 8mm Shaft, 600 PPR, A, B, Z, NPN open ...	Autonics E50S8-75-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 75 PPR, A, B, Z, Totem pole ...	Autonics E50S8-60-3-T-5 Encoder, Incremental, 0mm, 8mm Shaft, 60 PPR, A, B, Z, Totem pole ...	Autonics E50S8-1024-3-T-24-CS Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, B, Z, Tot ...	Autonics E50S8-1000-3-T-24-C Encoder, Incremental, 0mm, 8mm Shaft, 1000 PPR, A, B, Z, Tote ...	Autonics E50S8-50-3-T-24-C Encoder, Incremental, Diametor 50mm, 8mm Shaft, 500 PPR, A, B, ...	Autonics E50S8-50-3-N-24-C Encoder, Incremental, Diametor 50mm, 8mm Shaft, 500 PPR, A, B, ...	Autonics E50S8-2500-3-T-24-C Encoder, Incremental, Diameter 50mm, 8mm Shaft, 2500 PPR, A, ...	Autonics E50S8-2000-3-T-24-C Encoder, Incremental, Diameter 50mm, 8mm Shaft, 2000 PPR, A, ...	Autonics E50S8-1000-6-L-24 Encoder, Incremental, Diametor 50mm, 8mm Shaft, 1000 PPR, A, A/ ...	Autonics E50S8-1000-3-V-5-CR Encoder, Incremental, Diametor 50mm, 8mm Shaft, 1000 PPR, A, ...	Autonics E50S8-1-2-N-5 Encoder, Incremental, 0mm, 8mm Shaft, 1 PPR, A, B, NPN open collect ...	Autonics E50S8-40-3-T-24 Encoder, Incremental, 50mm, 8mm Shaft, 40 PPR, A, B, Z, Totem pol ...	Autonics E50S8-500-6-L-24 Encoder, Incremental, 0mm, 8mm Shaft, 500 PPR, A, A/, B, B/, Z, ...	Autonics E50S8-1024-6-L-5-CS Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, A/, B, B/, ...	Autonics E50S8-1024-6-L-5-C Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, A/, B, B/, ...	Autonics E50S8-100-3-T-24-CR Encoder, Incremental, 0mm, 8mm Shaft, 100 PPR, A, B, Z, Totem ...	Autonics E50S8-360-6-L-5-CR Encoder, Incremental, Diameter 50mm, 8mm Shaft, 360 PPR, A, A/ ...	Autonics E50S8-1800-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 1800 PPR, A, B, Z, NPN op ...	Autonics E50S8-1024-3-N-24 Encoder, Incremental, 0mm, 8mm Shaft, 1024 PPR, A, B, Z, NPN op ...	Autonics E50S8-2048-6-L-5 Encoder, Incremental, 0mm, 8mm Shaft, 2048 PPR, A, A/, B, B/, Z, ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics E50S8-2000-6-L-5-C

Control output: Line driver output
Power supply: 5VDC ±5%
Cable: Axial cable connector type
Accurate measurement of angle, position, revolution, speed, acceleration, and distance

Encoder, Incremental, 0mm, 8mm Shaft, 2000 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC, Axial cable connector Type

The E50S series incremental rotary encoders feature Ø50 mm size housings and provide accurate measurement of angle, position, revolution, speed, acceleration, and distance. The encoders are available in cable type, cable connector type, and axial/radial connector types along with various control output options.

Autonics E50S Series General Specifications
Item			Diameter Ø50mm shaft type of incremental rotary encoder
Resolution (P/R)¹			_1, _2 ,_*5, 10, 12, 15, 20, 23, 25, 30, 35, 40, 45, 50, 60, 75, 100, 120, 125, 150, 192, 200, 240, 250, 256, 300, 360, 400, 500, 512, 600, 800, 1000, 1024, 1200, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 400_{_}0, 50_{_}00, 60_{_}00, 8000
Electrical specification	Output phase		A, B, Z phase (line driver: A, A, B, B, Z, Z phase)
	Phase difference of output		Output between A and B phase: ^_^T_±^_^T_{(T=1 cycle of A phase)} 4 8
	Control output	Totem pole output	• [Low] - Load current: Max. 30mA, Residual voltage: Max. 0.4VDC • [High] - Load current: Max. 10mA, Output voltage (power voltage 5VDC): Min. (power voltage-2.0)VDC, Output voltage (power voltage 12-24VDC): Min. (power voltage-3.0)VDC
		NPN open collector output	Load current: Max. 30mA, Residual voltage: Max. 0.4VDC
		Voltage output	Load current: Max. 10mA, Residual voltage: Max. 0.4VDC
		Line driver output	• [Low] - Load current: Max. 20mA, Residual: Max. 0.5VDC • [High] - Load current: Max. -20mA, Output voltage (power voltage 5VDC): Min. (power voltage-2.5)VDC, Output voltage (power voltage 12-24VDC): Min. (power voltage-3.0)VDC
	Response time (rise/fall)	Totem pole output	Max. 1㎲ (cable length: 2m, I sink = 20mA)
		NPN open collector output
		Voltage output
		Line driver output	Max. 0.5㎲ (cable length: 2m, I sink = 20mA)
	Max. Response frequency		300kHz
	Power supply		• 5VDC ±5% (ripple P-P: Max. 5%) • 12-24VDC ±5% (ripple P-P: Max. 5%)
	Current consumption		Max. 80mA (disconnection of the load), Line driver output: Max. 50mA (disconnection of the load)
	Insulation resistance		Over. 100MΩ (at 500VDC megger between all terminals and case)
	Dielectric strength		750VAC 50/60Hz for 1 minute (between all terminals and case)
	Connection		Axial cable type, Axial cable connector type, Axial/Radial connector type
Mechanical specification	Starting torque		Max. 70gf·cm (0.007N·m)², Max. 800gf·cm (0.078N·m)³
	Moment of inertia		Max. 80g·cm² (8×10^-6kg·m²)², Max. 400g·cm² (4×10^-5kg·m²)³
	Shaft loading		Radial: Max. 10kgf, Thrust: Max. 2.5kgf
	Max. allowable revolution⁴		5,000rpm
Vibration			1.5mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
Shock			Approx. Max. 75G
Environment		Ambient temperature	-10 to 70℃, Storage: -25 to 85℃
		Ambient humidity	35 to 85%RH, Storage: 35 to 90%RH
Protection structure			Axial cable type, Axial cable connector type: IP50 (IEC standards)⁵, Axial/Radial connector type: IP65 (IEC standards)
Cable			Ø5mm, 5-wire (line driver output: 8-wire), 2m, Shield cable (AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm)
Accessory			Ø8mm coupling, Bracket
Approval			(except for line driver output)
Weight⁶			Approx. 363g_{_}(app_{_}rox. 275g), Axial/Radial connector type: Approx. 268g (approx. 180g)
