Autonics E100H35-512-6-L-5 Ø100mm Hollow Shaft Type Incremental Rotary Encoder

Name: Autonics E100H35-512-6-L-5 Ø100mm Hollow Shaft Type Incremental Rotary Encoder
Brand: Autonics
SKU: AutonicsE100H35-512-6-L-5
Price: 550.00 USD
Availability: InStock

0 reviews | Model: Autonics E100H35-512-6-L-5

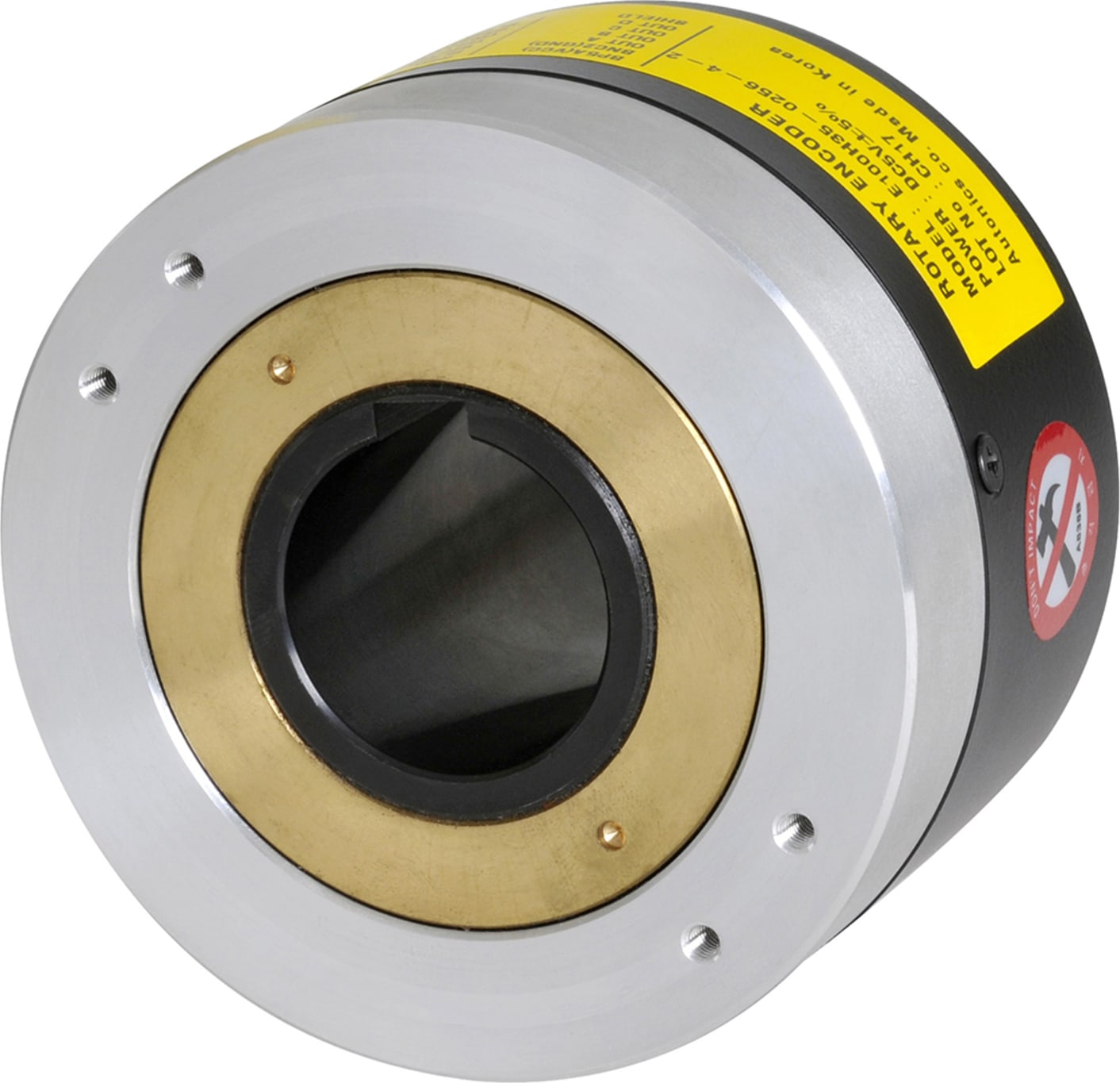

Autonics E100H Series Incremental Rotary Encoder

Compare

Encoder, Incremental, 00mm, 35mm Hollow Shaft, 512 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC

Incremental, 00mm, 35mm Hollow Shaft, 512 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC
Great environmental resistance
High stability of output
Exclusive for Elevator

View Product Details

Your Price: $550.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics E100H35-512-6-L-5 Encoder, Incremental, 00mm, 35mm Hollow Shaft, 512 PPR, A, A/, ...	Autonics E100H35-1024-3-T-5 Encoder, Incremental, Hollow 35mm Shaft, 1024 PPR, A, B, Z, To ...	Autonics E100H35-1024-3-N-24 Encoder, Incremental, Hollow 35mm Shaft, 1024 PPR, A, B, Z, N ...	Autonics E100H35-1024-6-L-24 Encoder, Incremental, Hollow 35mm Shaft, 1024 PPR, Quadrature ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics E100H35-512-6-L-5

Incremental
00mm
35mm Hollow Shaft
512 PPR, A, A/, B, B/, Z, Z/ Line driver output
5VDC

Incremental, 00mm, 35mm Hollow Shaft, 512 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC

The E100H series incremental rotary encoders feature Ø100 mm size housings with Ø35 mm hollow shafts. The encoders are sturdy and durable and are ideal of application in elevator systems. Various models are available by resolution and control output options.

Autonics E100H Series General Specifications
Item			Diameter Ø100mm hollow shaft type of incremental rotary encoder
Resolution (P/R) ^*1			512, 1024, 10000
Electrical specification	Output phase		A, B, Z phase (Line driver output A, Ā, B, B̄, Z, Z̄ phase)
	Phase difference of output		Phase difference between A and B:
	Control output	Totem pole output	• Low - Load current:Max. 30mA, Residual voltage: Max. 0.4VDC • High - Load current:Max. 10mA, Output voltage (Power voltage 5VDC):Min. (Power voltage-2.0)VDC, Output voltage (Power voltage 12-24VDC):Min. (Power voltage-3.0)VDC
		NPN open collector output	Load current: Max. 30mA, Residual voltage: Max. 0.4VDC
		Voltage output	Load current: Max. 10mA, Residual voltage: Max. 0.4VDC
		Line driver output	• Low - Load current: Max. 20mA, Residual voltage: Max. 0.5VDC • High - Load current: Max. -20mA, Output voltage (Power voltage 5VDC):Min. 2.5VDC, Output voltage (Power voltage 12-24VDC):Min. (Power voltage-3.0)VDC
	Response time (Rise/Fall)	Totem pole output	Max. 1μs (Cable length: 2m, I sink = 20mA)
		Voltage output
		NPN open collector output
		Line driver output	Max. 0.5μs (Cable length: 2m, I sink = 20mA)
	Max. Response frequency		300kHz
	Power supply		• 5VDC ±5% (Ripple P-P: Max. 5%) • 12-24VDC ±5% (Ripple P-P: Max. 5%)
	Current consumption		Max. 80mA (disconnection of the load), Line driver output: Max. 50mA (disconnection of the load)
	Insulation resistance		Min. 100MΩ (at 500VDC megger between all terminals and case)
	Dielectric strength		750VAC 50/60Hz for 1 minute (Between all terminals and case)
	Connection		Connector type
Mechanical specification	Starting torque		Max. 300gf·cm (0.03N·m)
	Moment of inertia		Max. 800g·cm² (8×10^-5 kg·m²)
	Shaft loading		Radial: 5kgf, Thrust: 2.5kgf
	Max. allowable revolution ^*2
Vibration			1.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Shock			Approx. Max. 75G
Environment	Ambient temperature		-10 to 70°C, storage: -25 to 85°C
	Ambient humidity		35 to 85%RH, storage: 35 to 90%RH
Protection structure			IP50 (IEC standard)
Cable			Ø5mm, 5-wire, Length: 2m, Shield cable (Line driver output: Ø6mm, 8-wire) (AWG24, Core diameter: 0.08mm, Number of cores: 40, Insulator out diameter: Ø1mm)
Accessory			Bracket 2EA
Approval			CE (Except for line driver output)
Weight^*3			Approx. 1400g (approx. 1130g)
