Autonics DS60-GT Display Unit

Name: Autonics DS60-GT Display Unit
Brand: Autonics
SKU: AutonicsDS60-GT
Price: 107.00 USD
Availability: InStock

0 reviews | Model: Autonics DS60-GT

Compare

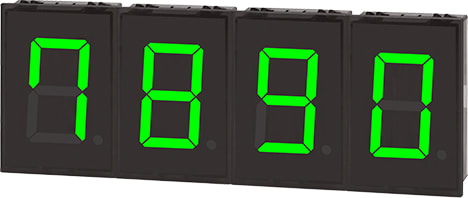

Display, W33.6 X H60mm LED, Green, 7-Segment, RS485 Communication Input, 12-24 VDC

W33.6 X H60mm LED, Green, 7-Segment, RS485 Communication Input, 12-24 VDC
Innovates existing display units and enables to wiring and replacement without soldering as Multi-stage connection
Multi-stage connection by connector or connector cable to shorten wiring time
Expandable multi-stage up to 24 digits
Several sizes for 16, 22.5, 40, 60mm
Various displays with 7/16 segment, and using red/green mixed
Adapts high luminance LED
Enables to display several units (changing unit name plates) and control turning ON and flashing by unit-display unit
Displays 64 characters and signs (0 to 9, A to Z, 27 signs, decimal point)
Supports 7 types of basic input units

View Product Details

Your Price: $107.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics DS60-GT

Expandable multi-stage up to 24 digits
Several sizes for 16, 22.5, 40, 60mm
Various displays with 7/16 segment, and using red/green mixed
Adapts high luminance LED
Enables to display several units (changing unit name plates) and control turning ON and flashing by unit-display unit

Display, W33.6 X H60mm LED, Green, 7-Segment, RS485 Communication Input, 12-24 VDC

The DS/DA series Intelligent type display units are available in 6 input options, including serial input, parallel input, RS485 communication input, RS485 communication time sync display, PT temperature sensor input, and PT temperature sensor + RS485 communication input. The DS/DA series is expandable up to 24 units with simple multi-stage connection, and switchable unit plates are available to provide installation flexibility for users. The displays are available in 7-segment, 16-segment types and green, red LED types and diverse combinations are possible.

Supports 7 types of basic input units:

Serial input, Dynamic parallel input,
RS485 com.(Modbus) input,
Temp./Humi. sensor module input,
Temp./Humi. sensor module input+RS485 com. output,
Pt temp. sensor input,
Pt temp. sensor input+RS485 com. output

General Specifications
Model	Basic unit		DS16-_S/T/D	D_ 22- _S/P/T/D/R	D_ 40-_ S/P/T/D/DT/R/RT	D_ 60-_ S/P/T/D/DT/R/RT
	Expansion unit		DS16-_E	D_22-_E	D_40-_E	D_60-_E
Input method			D_-_-_-S: Serial
			D_-_-_-P: Parallel(Dynamic Parallel 1, Dynamic Parallel 2)
			D_-_-_-T: RS485 communication(Modbus protocol)
			DS_-RD/RDT: Temp./Humi. sensor module(THD-RM-S) input(I² C input type)
			DS_-RR/RRT: Pt temp. sensor input(supports DPt100Ω, JPt 100Ω) *¹
Display color*2			Red, Green(selectable by model)
Power supply			12-24VDC
Allowable voltage range			90 to 110% of rated voltage
Current consumption	Red	D_-_-RS/RP/RT/RE	Max. 20mA	Max. 25mA	Max. 55mA	Max. 65mA
		D_-_RD/RDT/RR/RRT	Max. 40mA	Max. 40mA	Max. 55mA	Max. 65mA
	Gren		Max. 15mA	Max. 20mA	Max. 40mA	Max. 45mA
Character size			W9×H16mm	W11.2×H22.5mm	W22.4×H40mm	W33.6×H60mm
Max. Clock 3, 4			Serial input: Max. 2kHz Parallel input: Dynamic Parallel 1: Max. 3kHz, Dynamic Parallel 2: Max. 1.5kHz
Input logic*3			20kΩ
Input level*3			High: 4.5-24VDC, Low: 0-1.2VDC
Display character*5			64 characters and signs(0 to 9, A to Z, 27 signs, decimal point)
Display temp./humi. range			DS_-RD/RDT temperature: -19.9 to 60.0 °C , humidity: 00.0 to 99.9%RH
			DS_-RR/RRT temperature: -50.0 to 400.0 °C or -58.0 to 752.0 °F
Output			---		RS485 com. output(Modbus RTU)*7
The number of max. multi-stange connections			Serial/RS485 com. input: 24 units
			Parallel: Dynamic Parallel 1 : 6 units(4Bit), 4 units(6Bit)/ Dynamic Parallel 2 : 24 units(6Bit)
			Temp./Humi. sensor module input(+RS485 com. output): 6 units(3 units for temp. display, 3 units for humidity display, except unit-display unit)
			Pt temperature sensor input(+RS485 com. output): 4EA(except unit-display unit)
Noise resistance			±500V the square wave noise (pusel width: 1 ㎲ ) by the noise simulator
Environment	Ambient temperature		-10 to 55 °C , storage: -25 to 65 °C (for THD-RM-S, -19.9 to 60 °C , storage: -19.9 to 60 °C )
	Ambient humidity		35 to 85%RH (for THD-RM-S, 0 to 99.9%, storage: 0 to 99.9%)
Accessory	Basic unit		Cap: right/left 1EA	Cap: right/left 1EA, Connector : 1EA	Connector: 1EA*8
	Expansion unit		----	Ribbon cable: 1EA(50mm)
	DS_-RD/RDT		Temp./Humi. sensor module(THD-RM-S)
Protection			IP40 (front part)
Approval*5			CE
Weight	D_-_-_S/P/T/R/RT		Approx. 53g (approx. 12g)	Approx. 58g (approx. 17g)	Approx. 70g (approx. 28g)	Approx. 115g (approx. 60g)
	DS_-RD/RDT		Approx. 168g (approx. 12g)	Approx. 173g (approx. 17g)	Approx. 184g (approx. 28g)	Approx. 216g (approx. 60g)
	D_-_-_E		Approx. 77g (approx. 12g)*10	Approx. 92g (approx. 17g)*10	Approx. 70g (approx. 28g)	Approx. 115g (approx. 60g)
1: 16 size model does not support Pt temperature sensor input. 2: Temp./Humi. sensor module input, Temp./Humi. sensor module input+RS485 com. output, Pt temp. sensor input, Pt temp. sensor input+RS485 com. output models support only red display color. 3: It is only for Serial, Parallel input models. 4: Max. Clock is for 1:1 of duty ratio (ON, OFF ratio). 5: It is only for Serial, Parallel, RS485 com. input models. 6: Room temperature 23 °C ±5 °C 7: RS485 com. output supports only DS40-R T, DS60-R T models. 8: It is only for Parallel input model. 9: The weight is with packaging and the weight in parentheses is only unit weight. 10: This is 3 units' weight as packaging unit and the weight in parentheses is only unit weight. *Environment resistance is rated at no freezing or condensation
