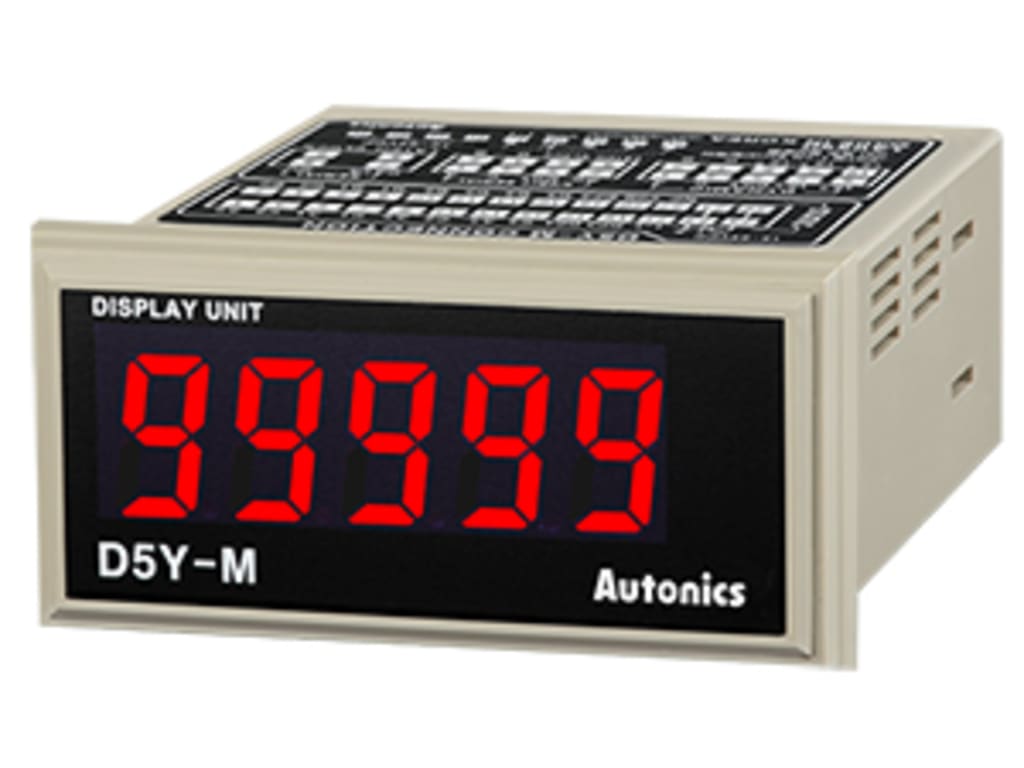

Autonics D5Y-M 5-Digit Display Unit

Name: Autonics D5Y-M 5-Digit Display Unit
Brand: Autonics
SKU: AutonicsD5Y-M
Price: 87.00 USD
Availability: InStock

0 reviews | Model: Autonics D5Y-M

Compare

Display Unit, 5-Digit, LED, W72x36mm, 4 Input Modes, Positive and Negative Logic, 12-24 VDC

Various input specifications
Static Parallel input, Dynamic Parallel input, 4/5-bit serial input, 16/20/25-bit serial input method
Decimal point, "-" minus sign display selection function
Display type by serial input Display type by external DP terminal and MINUS terminal
Positive/Negative logic input selection function
Display digit selection function
4-digit (-9999 to 9999), 5-digit (0 to 99999)
Zero blanking function selection function
Selectable reversion function of latch signal

View Product Details

Your Price: $87.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics D5Y-M

Various input specifications
Static Parallel input, Dynamic Parallel input, 4/5-bit serial input, 16/20/25-bit serial input method
Decimal point, "-" minus sign display selection function
Display type by serial input Display type by external DP terminal and MINUS terminal

5-Digit, LED, W72x36mm, 4 Input Modes, Positive and Negative Logic, 12-24 VDC

The D5Y/D5W series digital display units are panel mount type units with 5-digit, 7-segment LED displays. Various parallel and serial data input methods are supported. Users can conveniently switch data input methods, display digit, input logic, symbol display function, and zero blanking function with attached DIP switches. The D5Y models are W 72 x H 36 mm and the D5W models are W 96 x H 48 mm in size.

General Specifications
Model		D5Y-M	D5W-M	D5W-MX
Power supply		12-24VDC		110/220VAC 50/60Hz
Allowable voltage range		90 to 110% of rated voltage
Power consumption		Max. 1.1W		Max. 2VA
Character size		W7×H14mm
Display method		7-segment LED display (red)
Display digit		Selectable 4-digit (or 4 ½ digit including symbol bit), 5-digit
Max. Clock		100Hz to 5kHz
Input logic		Selectable positive (PNP) or negative (NPN)
Input method		Static parallel, Dynamic parallel, 4/5-bit serial, Serial (16/20/25-bit)
Input level		High: 5-24VDC, Low: 0-1.2VDC
Insulation resistance		Over 100MΩ (at 500VDC megger)
Dielectric immunity		2,000VAC 50/60Hz for 1 minute
Noise immunity		±1kV the square wave noise (pulse width: 1μs) by the noise simulator
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 minutes
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Environment	Ambient temperature	-10 to 50℃, storage: -25 to 65℃
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Unit weight		Approx. 75g	Approx. 165g	Approx. 267g
Max. Clock is for 1:1 of duty ratio (ON, OFF ratio). Environment resistance is rated at no freezing or condensation.

Tech Specs

Temperature / PID Controllers
Type (Controllers)	Digital
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Test Equipment General Attributes
Product Weight	0.17 LBS
Country of Origin	Korea
