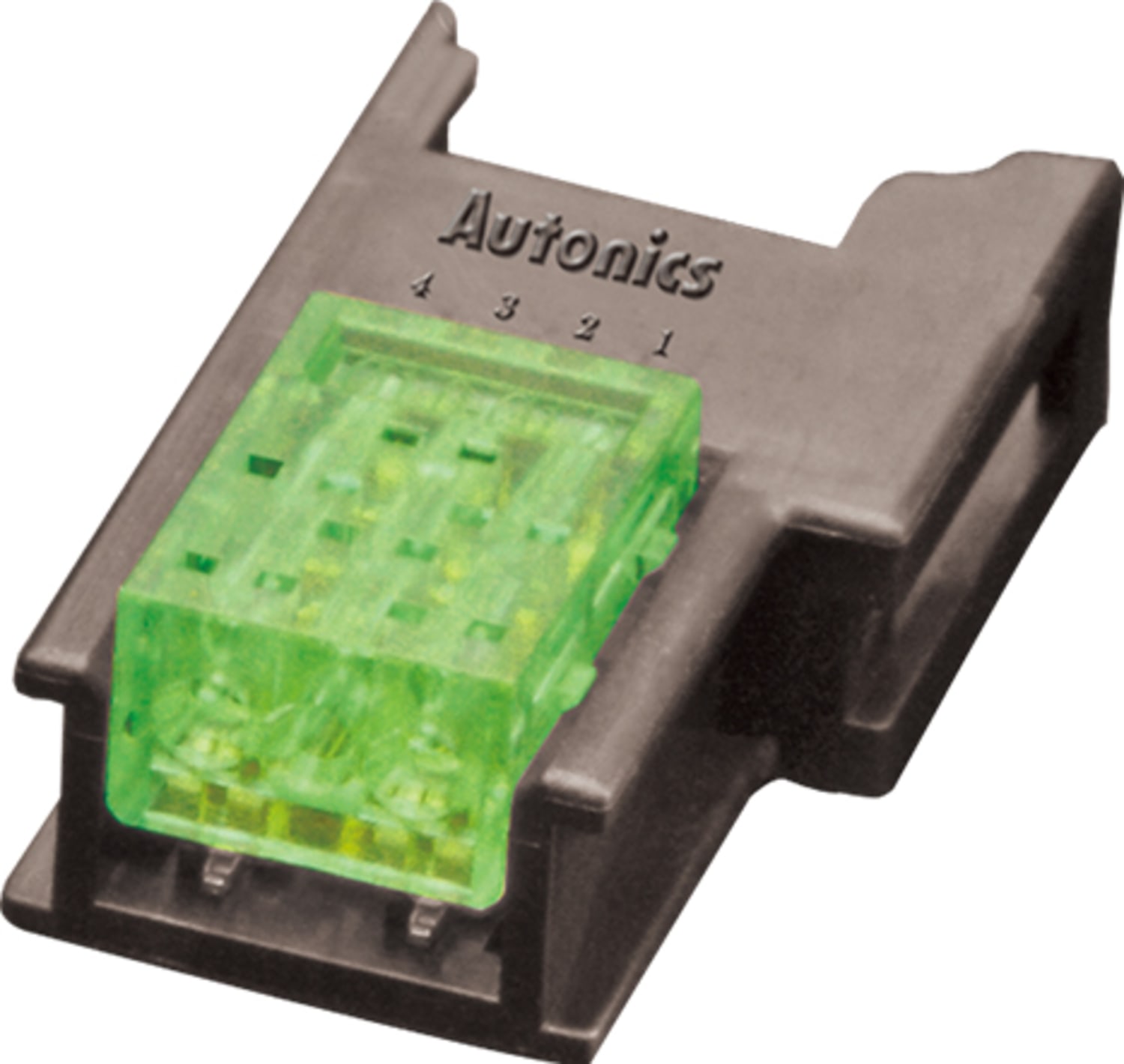

Autonics CNE-S03-YG Sensor Connector

Name: Autonics CNE-S03-YG Sensor Connector
Brand: Autonics
SKU: AutonicsCNE-S03-YG
Price: 2.00 USD
Availability: InStock

0 reviews | Model: Autonics CNE-S03-YG

Compare

Wire mount socket, Yellow-Green, 3pin, AWG28 to 30, Wire0.05 to 0.08, 0.8 to 1.0mm

Yellow-Green, 3pin, AWG28 to 30, Wire0.05 to 0.08, diameter 0.8 to 1.0mm
Compact and highly reliable of pressure welding connector
Enables to connect wires as wire mount plug/socket
Different 9 colors of cover by wire diameter
Visible wiring status with translucent cover
Enables to insert 4, 2, or 1 wire mount plugs
Contact placed in mold against electric shock and short-circuit
Mountable on board closely
Significantly reduces connection time and effort
Wide products range for various wires

View Product Details

Your Price: $2.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics CNE-S03-YG Wire mount socket, Yellow-Green, 3pin, AWG28 to 30, Wire0.05 to 0.08, ...	Autonics CNE-P03-YG Wire mount plug, Yellow-Green, 3pin, AWG28 to 30, Wire0.05 to 0.08, 0. ...	Autonics CNE-B203 Board mount socket, 3pin, 2 Line	Autonics CNE-B204 Board mount socket, 4pin, 2 Line	Autonics CNE-B403 Board mount socket, 3pin, 4 Line	Autonics CNE-B404 Board mount socket, 4pin, 4 Line	Autonics CNE-B03 Board mount socket, 3pin, 1 Line	Autonics CNE-B04 Board mount socket, 4pin, 1 Line	Autonics CNE-P03-BL Wire mount plug, Blue, 3pin, AWG20 to 22, Wire0.32 to 0.5 1.2 to 1.6mm	Autonics CNE-P03-GN Wire mount plug, Green, 3pin, AWG20 to 22, Wire0.32 to 0.5, 1.0 to 1.2 ...	Autonics CNE-P03-GY Wire mount plug, Gray, 3pin, AWG20 to 22, Wire0.32 to 0.5, 1.6 to 2.0m ...	Autonics CNE-P03-OG Wire mount plug, Orange, 3pin, AWG24 to 26, Wire0.13 to 0.21, 1.2 to 1 ...	Autonics CNE-P03-RE Wire mount plug, Red, 3pin, AWG24 to 26, Wire0.13 to 0.21, 0.8 to 1.0m ...	Autonics CNE-P03-VT Wire mount plug, Violet, 3pin, AWG28 to 30, Wire0.05 to 0.08, 1.0 to 1 ...	Autonics CNE-P03-WT Wire mount plug, Transparent, 3pin, AWG28 to 30, Wire0.05 to 0.08, 0.6 ...	Autonics CNE-P04-GN Wire mount plug, Green, 4pin, AWG20 to 22, Wire0.32 to 0.5, 1.0 to 1.2 ...	Autonics CNE-P04-GY Wire mount plug, Gray, 4pin, AWG20 to 22, Wire0.32 to 0.5, 1.6 to 2.0m ...	Autonics CNE-P04-BL Wire mount plug, Blue, 4pin, AWG20 to 22, Wire0.32 to 0.5, 1.2 to 1.6m ...	Autonics CNE-P04-OG Wire mount plug, Orange, 4pin, AWG24 to 26, Wire0.13 to 0.21, 1.2 to 1 ...	Autonics CNE-P04-RE Wire mount plug, Red, 4pin, AWG24 to 26, Wire0.13 to 0.21, 0.8 to 1.0m ...	Autonics CNE-P04-VT Wire mount plug, Violet, 4pin, AWG28 to 30, Wire0.05 to 0.08, 1.0 to 1 ...	Autonics CNE-P04-WT Wire mount plug, Transparent, 4pin, AWG28 to 30, Wire0.05 to 0.08, 0.6 ...	Autonics CNE-P04-YG Wire mount plug, Yellow-Green, 4pin, AWG28 to 30, Wire0.05 to 0.08, 0. ...	Autonics CNE-P04-YW Wire mount plug, Yellow, 4pin, AWG24 to 26, Wire0.13 to 0.21, 1.0 to 1 ...	Autonics CNE-S03-GN Wire mount socket, Green, 3pin, AWG20 to 22, Wire0.32 to 0.5, 1.0 to 1 ...	Autonics CNE-S03-BL Wire mount socket, Blue, 3pin, AWG20 to 22, Wire0.32 to 0.5, 1.2 to 1. ...	Autonics CNE-S03-GY Wire mount socket, Gray, 3pin, AWG20 to 22, Wire0.32 to 0.5, 1.6 to 2. ...	Autonics CNE-S03-OG Wire mount socket, Orange, 3pin, AWG24 to 26, Wire0.13 to 0.21, 1.2 to ...	Autonics CNE-S03-RE Wire mount socket, Red, 3pin, AWG24 to 26, Wire0.13 to 0.21, 0.8 to 1. ...	Autonics CNE-S03-VT Wire mount socket, Violet, 3pin, AWG28 to 30, Wire0.05 to 0.08, 1.0 to ...	Autonics CNE-S03-WT Wire mount socket, Transparent, 3pin, AWG28 to 30, Wire0.05 to 0.08, 0 ...	Autonics CNE-S03-YW Wire mount socket, Yellow, 3pin, AWG24 to 26, Wire0.13 to 0.2, 1.0 to ...	Autonics CNE-S04-BL Wire mount socket, Blue, 4pin, AWG20 to 22, Wire0.32 to 0.5, 1.2 to 1. ...	Autonics CNE-S04-GN Wire mount socket, Green, 4pin, AWG20 to 22, Wire0.32 to 0.5, 1.0 to 1 ...	Autonics CNE-S04-GY Wire mount socket, Gray, 4pin, AWG20 to 22, Wire0.32 to 0.5, 1.6 to 2. ...	Autonics CNE-S04-OG Wire mount socket, Orange, 4pin, AWG24 to 26, Wire0.13 to 0.21, 1.2 to ...	Autonics CNE-S04-RE Wire mount socket, Red, 4pin, AWG24 to 26, Wire0.13 to 0.21, 0.8 to 1. ...	Autonics CNE-S04-VT Wire mount socket, Violet, 4pin, AWG28 to 30, Wire0.05 to 0.08, 1.0 to ...	Autonics CNE-S04-WT Wire mount socket, Transparent, 4pin, AWG28 to 30, Wire0.05 to 0.08, 0 ...	Autonics CNE-S04-YG Wire mount socket, Yellow-Green, 4pin, AWG28 to 30, Wire0.05 to 0.08, ...	Autonics CNE-S04-YW Wire mount socket, Yellow, 4pin, AWG24 to 26, Wire0.13 to 0.21, 1.0 to ...
Price
In Stock	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Wire mount socket, Yellow-Green, 3pin, AWG28 to 30, Wire0.05 to 0.08, 0.8 to 1.0mm

The CNE series sensor connectors can significantly reduce installation work and maintenance time. With a wide range of connectors compatible with diverse cables and connection wiring, the sensor connectors help raise the productivity of industrial systems by making wiring work more convenient and efficient.

General Specifications
Type		Wire mount plug	Wire mount socket	Board mount socket
Model		CNE-P-X-X	CNE-S-X-X	CNE-B-X-X
Application	Connector	Board mount socket/Wire mount socket	Wire mount plug	Wire mount plug
	Cable	AWG30-20 (Ø0.6mm to Ø2.0mm)		---
	PCB	----		Fender plated-through hole, Hole dia.: 1.0mm, PCB thickness: 1.0 to 2.2mm
Rated voltage		Max. 250VAC/DC
Rated current		Max. 3.0A
Environment	Ambient temp.	-20 to 85℃ (applying 1A), -20 to 75℃ (applying 2A), -20 to 60℃ (applying 3A)
	Ambient humi.	40 to 80%RH
Terminal retention		Min. 1.4kgf
Pressure strength		• AWG30: Min. 0.5kgf • AWG24: Min. 0.8kgf • AWG20: Min. 1.0kgf
Extraction		Min. 0.49N (50gf)/pin
Insertion		Max. 1.96N (200gf)/pin
Dielectric strength		1,000VAC for 1min (between terminals)
Insulated resistance		Over 1,000MΩ (between terminals)
Contact resistance		Max. 0.05Ω (short-current: 1mA, max. open voltage: 20mV)
Material		Body: PC/ABS (UL94V-0), Terminal: C5210 (gold 0.2μm), Case: PC (UL94-V0)		Body: PC/ABS (UL94-V0), Terminal: C5210 (gold 0.2μm)

Cover Color and Wire Specifications
Cover color	3-pin	4-pin	Applied wire specifications
Cover color	3-pin	4-pin	Nominal cross section area (mm²)	Cover diameter (mm)
Transparent (WT)	CNE-X03-WT	CNE-X04-WT	0.05 to 0.08 (AWG30 to 28)	Ø0.6 to 0.8
Yellow-Green (YG)	CNE-X03-YG	CNE-X04-YG		Ø0.8 to 1.0
Violet (VT)	CNE-X03-VT	CNE-X04-VT		Ø1.0 to 1.2
Red (RE)	CNE-X03-RE	CNE-X04-RE	0.13 to 0.21 (AWG26 to 24)	Ø0.8 to 1.0
Yellow (YW)	CNE-X03-YW	CNE-X04-YW		Ø1.0 to 1.2
Orange (OG)	CNE-X03-OG	CNE-X04-OG		Ø1.2 to 1.6
Green (GN)	CNE-X03-GN	CNE-X04-GN	0.32 to 0.5 (AWG22 to 20)	Ø1.0 to 1.2
Blue (BL)	CNE-X03-BL	CNE-X04-BL		Ø1.2 to 1.6
Gray (GY)	CNE-X03-GY	CNE-X04-GY		Ø1.6 to 2.0
*X:P (wire mount plug), S (wire mount socket)
