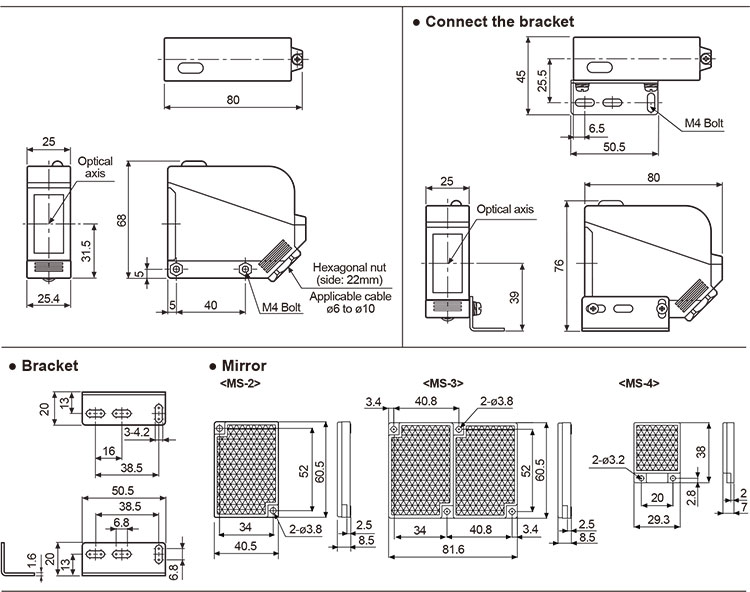

Autonics BX Series General Specifications
(Free power, Relay contact output type) |
| Sensing type |

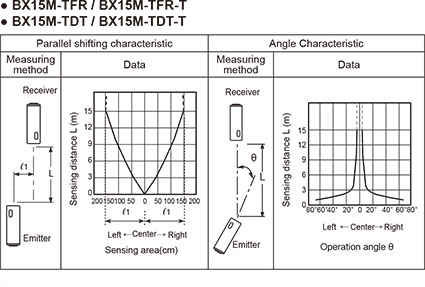

Through-beam |

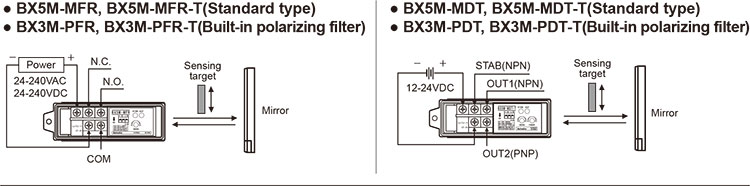

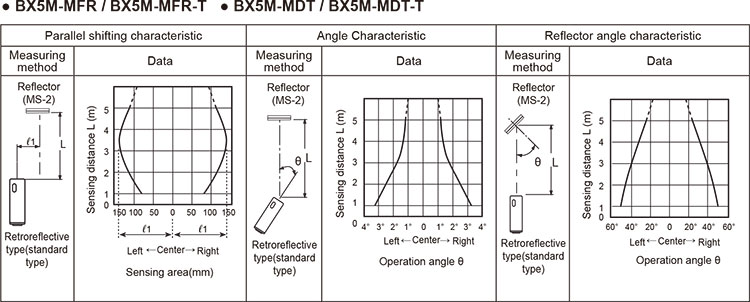

Retroreflective
(Standard type) |

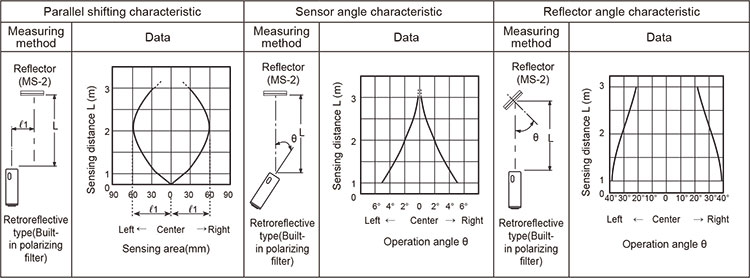

Retroreflective
(Built-in polarizing filter |

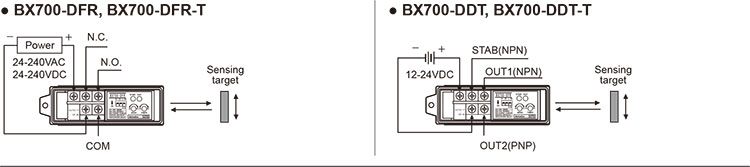

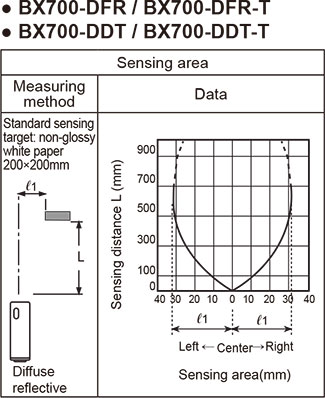

Diffuse reflective |
| Sensing distance |
15m |
0.1 to 5m(MS-2) *1 |
0.1 to 3m(MS-3) *2 |
700mm *3 |
| Sensing target |
Opaque materials of Min. ø15mm |
Opaque materials of Min. ø60mm |
Translucent, opaque material |
| Hysteresis |
- |
Max. 20% at rated setting distance |
| Response time |
Max. 20ms |
| Power supply |
24-240VAC ±10% 50/60Hz, 24-240VDC ±10%(Ripple P-P:Max. 10%) |
| Power consumption |
Max. 3VA |
| Light source |
Infrared LED(850nm) |
Red LED(660nm) |
Infrared LED(940nm) |
| Sensitivity adjustment |
Built-in the adjustment VR |
| Operation mode |
Selectable Light ON or Dark ON by switch |

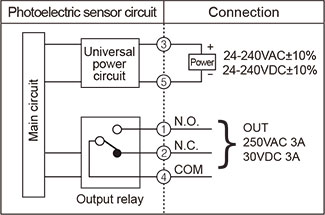

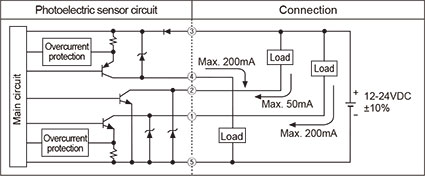

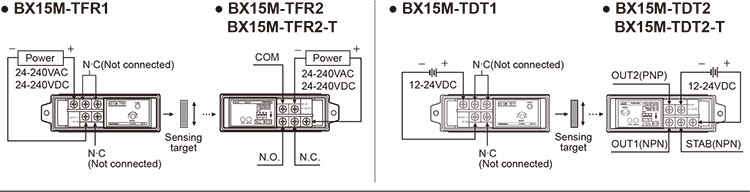

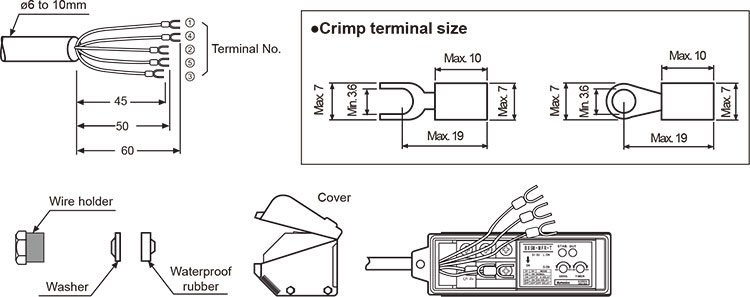

| Control output |
Relay contact output(Contact capacity : 30VDC 3A, 250VAC 3A at resistive load, Contact composition: 1c) *4 |
| Relay life cycle |
Mechanically : Min. 50,000,000, Electrically : Min. 100,000 |

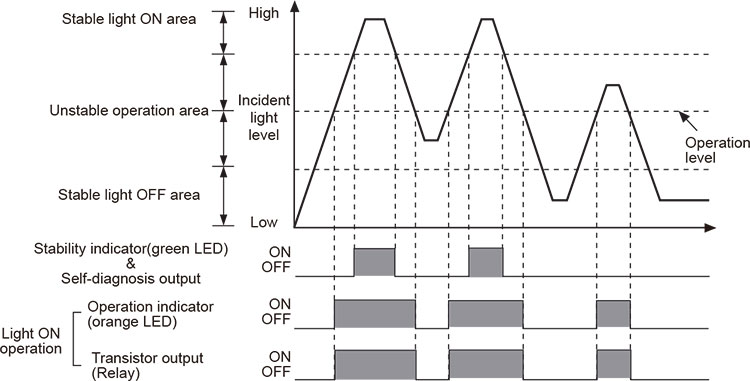

| Self-diagnosis output |
Green LED turns on at stable operation |

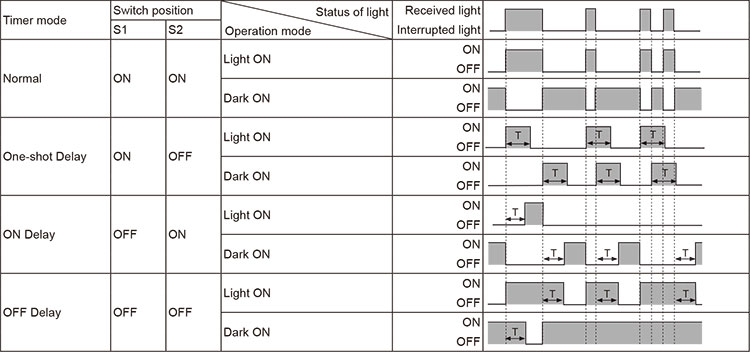

| Timer function |
Selectable ON Delay, OFF Delay, One Shot Delay by slide switch [Delay Time : 0.1 to 5sec.(Adjustable VR)] |

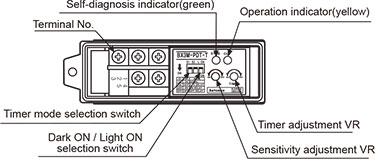

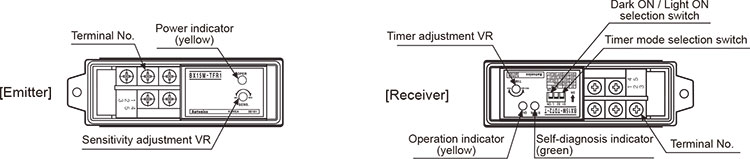

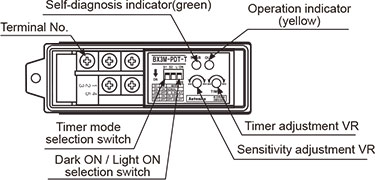

| Indicator |
Operation indicator : yellow LED, Self-diagnosis indicator : green LED |
| Insulation resistance |
Min. 20MΩ(at 500VDC megger) |
| Insulation type |
Double or strong insulation(Mark: Dielectric voltage between the measured input and the power: 1.5kV) |
| Noise resistance |
±1,000V the square wave noise(pulse width : 1μs) by the noise simulator |
| Dielectric strength |
1500VAC 50/60Hz for 1minute |
| Vibration |
Mechanical |
1.5mm amplitude or 300m/s2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
| Malfunction |
1.5mm amplitude or 300m/s2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes |
| Shock |
Mechanical |
500m/s2(approx. 50G) in each of X, Y, Z directions for 3 times |
| Malfunction |
100m/s2(approx. 10G) in each of X, Y, Z directions for 3 times |
| Environment |
Ambient illumination |
Sunlight : Max. 11,000lx, Incandescent lamp : Max. 3,000lx (Receiver illumination) |
| Ambient temperature |
-20 to 55°C, storage : -25 to 70°C |
| Ambient humidity |
35 to 85%RH, storage : 35 to 85%RH |
| Protection |
IP66(IEC standard) |
| Material |
Case, Lens cover: PC, Sensing part: Acrylic |
| Accessory |
Individual |
- |
Mirror(MS-2) |
Mirror(MS-3) |
- |
| Common |
VR adjustment driver, Mounting bracket, Bolts, Nuts |
| Approval |
CE |
| Unit weight |
TFR: Approx. 225g
TFR-T: Approx. 226g |
MFR: Approx. 130g
MFR-T: Approx. 131g |
PFR: Approx. 148g
PFR-T: Approx. 149g |
DFR: Approx. 115g
DFR-T: Approx. 116g |
*1: It is same when using the MS-4 reflector (sold separately). The sensor can detect under 0.1m.
*2: When using the MS-2 reflector, the sensing distance is 0.1 to 2m. The sensor can detect under 0.1m.
*3: It is for Non-glossy white paper(200×200mm)
*4: Relay contact output 1a type is option.
*Relay contact output 1a type is option.
*The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment. |
