Autonics BWPK25-05 Picking Sensor, Through beam type, NPN open collector output. 25mm optical axis pitch

Name: Autonics BWPK25-05 Picking Sensor, Through beam type, NPN open collector output. 25mm optical axis pitch
Brand: Autonics
SKU: AutonicsBWPK25-05
Price: 310.00 USD
Availability: InStock

0 reviews | Model: Autonics BWPK25-05

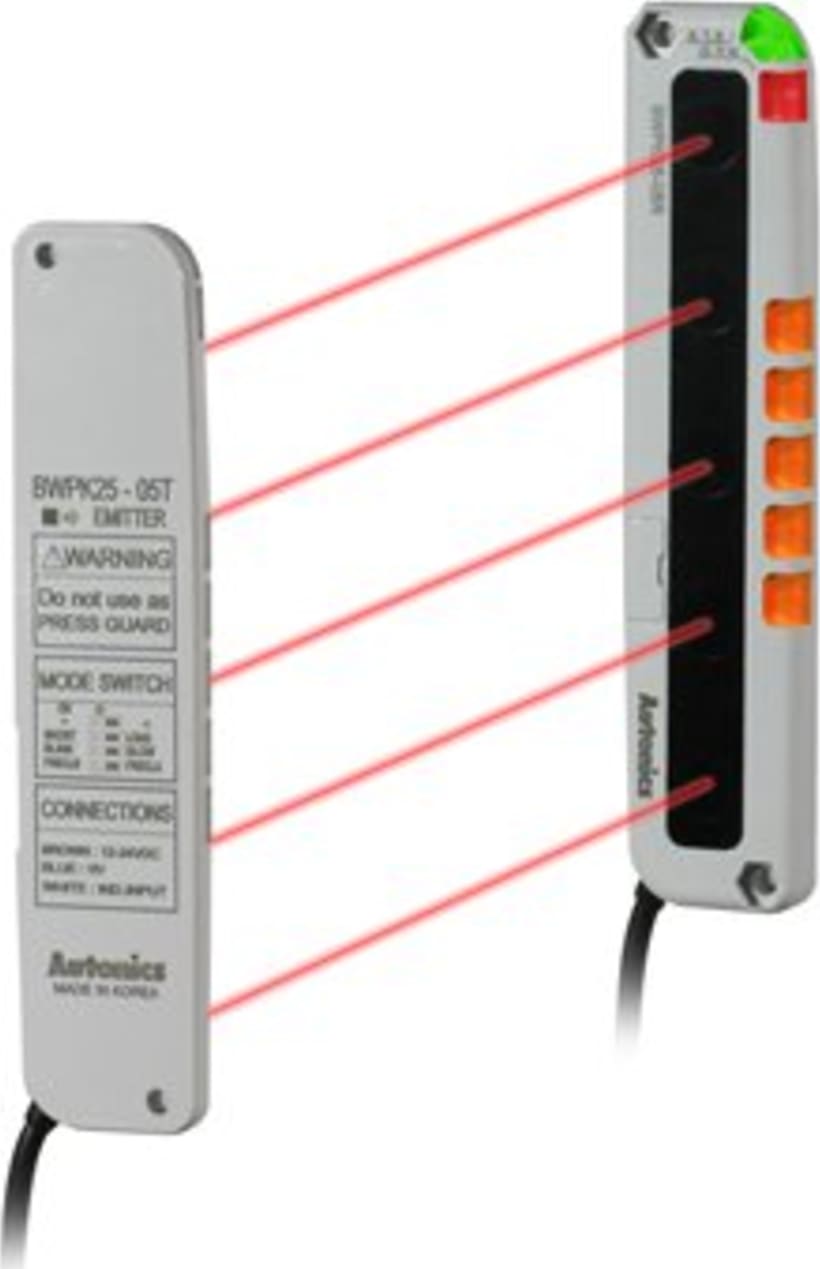

Autonics BWPK Series Ultra-Flat (Width 10mm) Picking Sensor

Compare

Sensor, Picking Through beam type, NPN open collector output. 25mm optical axis pitch, 12-24VDC

Picking Through beam type, NPN open collector output. 25mm optical axis pitch, 12-24VDC
Plastic injection case
Slim body(W30×H140×T10mm)
Long/Short sensing distance mode (sensing distance selection function)
Mutual interference prevention (frequency switching function)
Selectable Light ON/Dark ON operation mode by switch
Picking indicator includes

View Product Details

Your Price: $310.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics BWPK25-05 Sensor, Picking Through beam type, NPN open collector output. 25mm opti ...	Autonics BWPK25-05P Sensor, Picking Through beam type, PNP open collector output. 25mm opt ...	Autonics BK-BWPK-L BWPK Bracket B, Right angle type, 37x140mm	Autonics BK-BWPK-P BWPK Sensor protection bracket	Autonics BK-BWPK-ST BWPK Bracket A, Straight type, 65.4x140mm
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics BWPK25-05

Long/Short sensing distance mode (sensing distance selection function)
Mutual interference prevention (frequency switching function)
Selectable Light ON/Dark ON operation mode by switch
Picking indicator includes
Protection structure IP40(IEC standard)

Sensor, Picking Through beam type, NPN open collector output. 25mm optical axis pitch, 12-24VDC

The BWPK series area sensors feature a flat and compact body (10 mm) made of high strength PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene) plastic. Picking indicators on the emitter and receiver allow clear identification of job status. Installation and wiring is made easier with the removal of synchronization wiring. DIP switches are available to switch between various functions and modes including long/short sensing distance mode, mutual interference prevention function, Light ON/Dark ON switching and picking indicator ON/FLASHING options.

Autonics BWPK Series General Specifications
Model	NPN open collector output	BWPK25-05
	PNP open collector output	BWPK25-05P
Sensing type		Through-beam
Sensing distance	Long distance mode	0.1 to 3m
	Short distance mode	0.05 to 1m
Sensing target		Opaque materials of min.Ø35mm
Optical axis pitch		25mm
Number of optical axis		5EA
Sensing width		100mm
Power supply		12-24VDC ±10% (Ripple P-P : Max. 10%)
Current consumption		Emitter : Max. 60mA, Receiver : Max. 60mA
Control output		NPN or PNP open collector output Load voltage : Max. 30VDC Load current : Max. 150mA Residual voltage - NPN : Max. 1V, PNP : Min.2.5V
Operation mode		Selectable Light ON/Dark ON by switch
Response time		Max. 30ms
Light source		Infrared LED (850nm modulated)
Interference protection		Interference protection by transmission frequency selection
Protection circuit		Reverse power polarity, Output short-circuit (Overcurrent) protection
External picking input		Non-contact or contact input NPN open collector output : Lighting (0-2V), Light out (5-30V or open) PNP open collector output : Lighting (4-30V), Light out (0-3V or open)
Environment	Ambient illumination	Sunlight : Max. 10,000lx, Incandescent lamp : Max. 3,000lx(received light side illumination)
	Ambient temperature	-10 to 55°C, storage : -20 to 60°C
	Ambient humidity	35 to 85%RH, storage : 35 to 85%RH
Insulation resistance		Min. 20MΩ (at 500VDC megger)
Noise resistance		±240V the square wave noise (pulse width: 1μs) by the noise simulation
Dielectric strength		1,000VAC 50/60Hz for 1minute
Vibration		1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Shock		500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Protection structure		IP40 (IEC standard)
Material		Case : PC/ABS, Sensing part: PMMA
Cable		Ø4.0mm, 4-wire, Length : 2m (Emitter : Ø4.0mm, 3-wire, Length : 2m) (AWG 22, Core diameter : 0.08mm, Number of cores : 60, Insulator out diameter : Ø1.25)
Approval		CE
Weight^*1		Approx. 220g (approx. 180g)
1: The weight includes packaging. The weight in parentheses is for unit only. The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
