Autonics BWP20-08P Area Sensor, Plastic housing PNP open collector output. 08pcs and 20mm pitch optical axis, 140mm length

Name: Autonics BWP20-08P Area Sensor, Plastic housing PNP open collector output. 08pcs and 20mm pitch optical axis, 140mm length
Brand: Autonics
SKU: AutonicsBWP20-08P
Price: 356.00 USD
Availability: InStock

0 reviews | Model: Autonics BWP20-08P

Autonics BWP Series Area Sensor with Plastic Case

Compare

Sensor, Area, Plastic housing PNP open collector output. 08pcs and 20mm pitch optical axis, 140mm length, 12-24VDC

Plastic housing PNP open collector output. 08pcs and 20mm pitch optical axis, 140mm length, 12-24VDC
13mm slim body with fresnel lens
Adoption of plastic(PC/ABS) injection case
Various functions; stop transmission, interference prevention, lightening/flashing JOB indicator, Light ON/Dark ON operation by switch
Easy to recognize at side, front, and long-distance by high brightness LED of Emitter and Receiver
Fast response time up to 7ms
Protection structure IP40(IEC standard)

View Product Details

Your Price: $356.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series

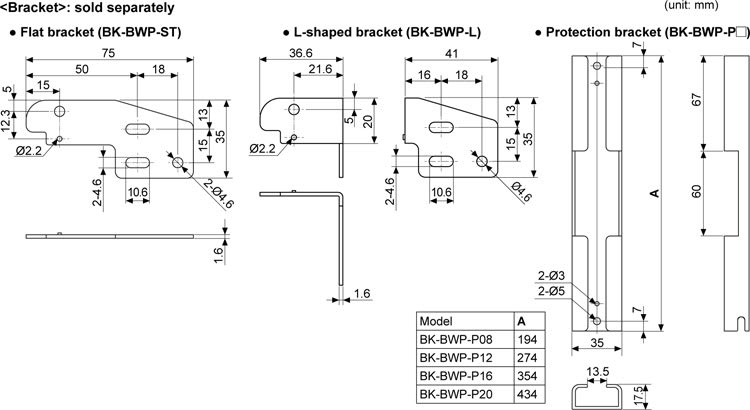

Product	Autonics BWP20-08P Sensor, Area, Plastic housing PNP open collector output. 08pcs and 20mm ...	Autonics BWP20-08 Sensor, Area, Plastic housing NPN open collector output. 08pcs and 20mm ...	Autonics BWP20-12 Sensor, Area, Plastic housing NPN open collector output. 12pcs and 20mm ...	Autonics BWP20-16 Sensor, Area, Plastic housing NPN open collector output. 16pcs and 20mm ...	Autonics BWP20-20 Sensor, Area, Plastic housing NPN open collector output. 20pcs and 20mm ...	Autonics BWP20-12P Sensor, Area, Plastic housing PNP open collector output. 12pcs and 20mm ...	Autonics BWP20-16P Sensor, Area, Plastic housing PNP open collector output. 16pcs and 20mm ...	Autonics BWP20-20P Sensor, Area, Plastic housing PNP open collector output. 20pcs and 20mm ...	Autonics BK-BWP-P16 BWP Sensor protection bracket 354 x 340 mm	Autonics BK-BWP-ST BWP Straight type, 75 x35 mm
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

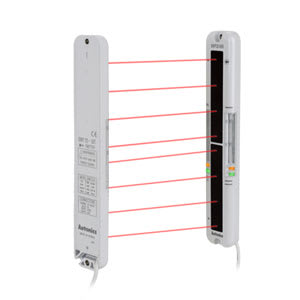

Autonics BWP Area Sensor with Plastic Case

Plastic housing PNP open collector output. 08pcs and 20mm pitch optical axis, 140mm length, 12-24VDC
Adoption of plastic(PC/ABS) injection case
Various functions; stop transmission, interference prevention, lightening/flashing JOB indicator, Light ON/Dark ON operation by switch
Fast response time up to 7ms

BWP Series is an area sensor in plastic case that features superior sensing performance with mutual interference prevention function by selecting emitting light frequency. A wide variety of product line-up fulfils various customer needs. In addition, its compact size with dedicated Fresnel lens and plastic case is another feature of BWP Series that allows more space saving installation.

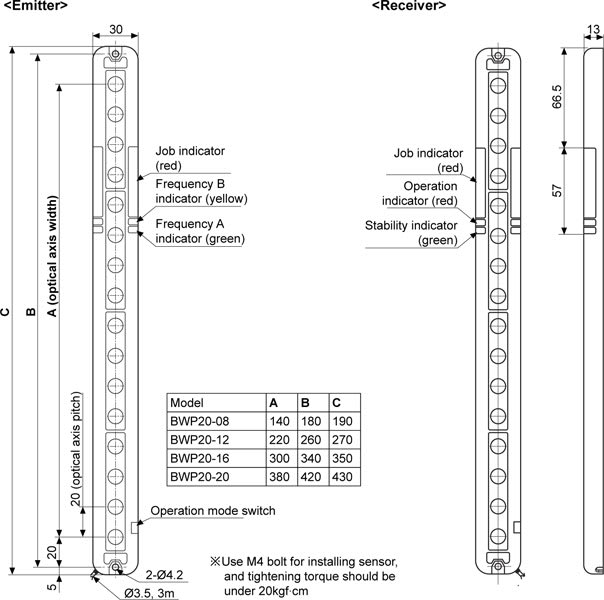

Dimensions

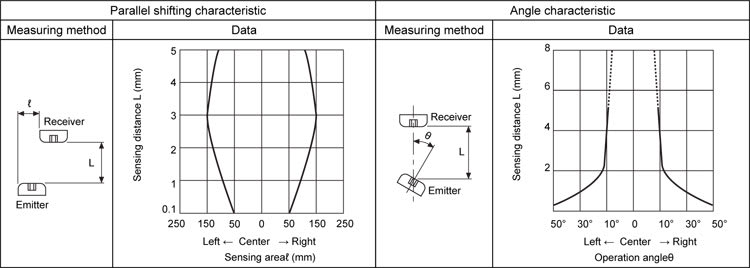

Feature Data

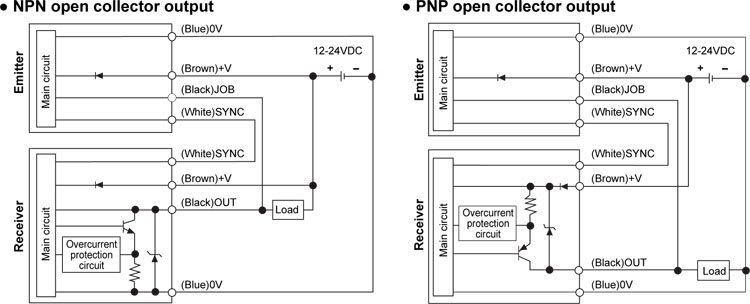

Input/Output Circuit And Connection Diagram

*If the receiver OUT (black) line and the emitter JOB (black) line are not connected each other, the JOB indicator of the emitter is not operated and maintain the light status.

Operation Timing Diagram

*The waveforms of operation indicator, job indicator, and control output are the state of operation for Light ON, but in case of Dark ON, it is opposite operation against Light ON mode.

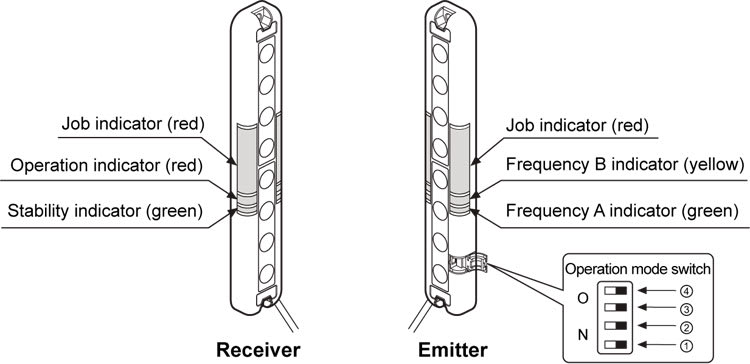

Structure

Autonics BWP Series General Specifications
Model	NPN open collector output	BWP20-08	BWP20-12	BWP20-16	BWP20-20
	PNP open collector output	BWP20-08P	BWP20-12P	BWP20-16P	BWP20-20P
Sensing type		Through-beam
Sensing distance		0.1 to 5m
Sensing target		Opaque materials of min.Ø30mm
Optical axis pitch		20mm
Number of optical axis		8EA	12EA	16EA	20EA
Sensing width		140mm	220mm	300mm	380mm
Power supply		12-24VDC ±10% (Ripple P-P : Max. 10%)
Protection circuit		Built-in
Current consumption		Emitter : Max. 80mA, Receiver : Max. 80mA
Control output		NPN or PNP open collector output Load voltage : Max. 30VDC Load current : Max. 150mA Residual voltage - NPN : Max. 1V, PNP : Min. 2.5V
Operation mode		Light ON/Dark ON by switch
Short-circuit protection		Built-in
Response time		Max. 6ms (Frequency B selection is max. 7ms)
Light source		Infrared LED (850nm modulated)
Synchronization type		Synchronized by synchronous line
Interference protection		Interference protection by transmission frequency selection
Environment	Ambient illumination	Sunlight : Max. 10,000lx (received light side illumination)
	Ambient temperature	-10 to 55°C, storage : -20 to 60°C
	Ambient humidity	35 to 85%RH, storage : 35 to 85%RH
Noise resistance		±240V the square wave noise (pulse width: 1μs) by the noise simulation
Dielectric strength		1,000VAC 50/60Hz for 1 minute
Insulation resistance		Min. 20MΩ (at 500VDC megger)
Vibration		1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Shock		500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Protection structure		IP40 (IEC standard)
Material		Case : PC/ABS, Sensing part : PMMA
Cable		Ø3.5mm, 4-wire, Length : 3m (Emitter: Ø3.5mm, 4-wire, Length : 3m) (AWG 24, Core diameter : 0.08mm, Number of cores : 40, Insulator out diameter : Ø1mm)
Approval		CE
Weight^*1		Approx. 400g (approx. 280g)	Approx. 520g (approx. 320g)	Approx. 620g (approx. 360g)	Approx. 680g (approx. 430g)
1: The weight includes packaging. The weight in parentheses is for unit only. The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
