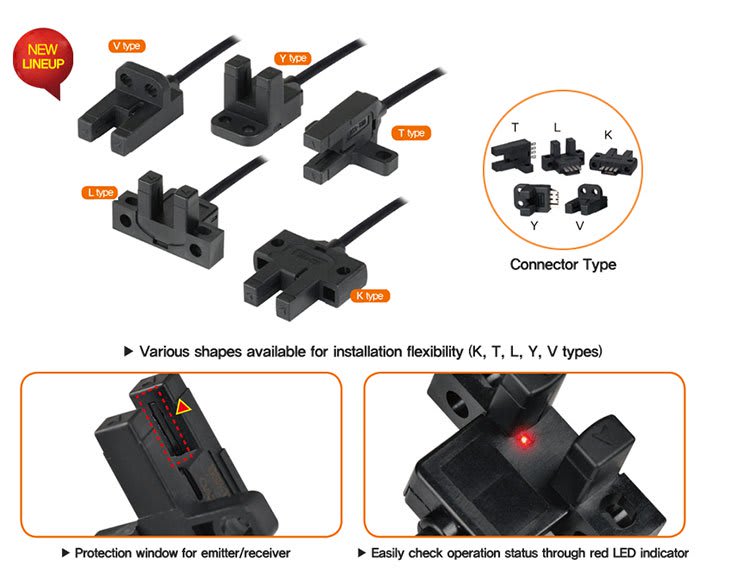

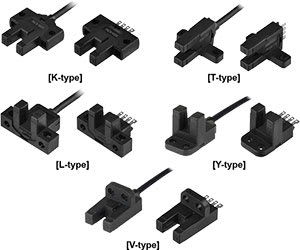

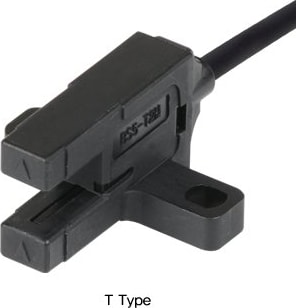

| Autonics BS5 Series General Specifications |
| Sensing type |
Through-beam (Not modulated) |
| Sensing distance |
5mm fixed |
| Sensing target |
ø0.8×2mm Opaque materials |
| Hysteresis |
0.05mm |
| Response time |
Light ON : Max. 20μs
Dark ON : Max. 100μs |
| Response frequency *1 |
2kHz (refer to the measuring range of response frequency) |
| Power supply |
5-24VDC ±10% (Ripple P-P : Max. 10%) |
| Current consumption |
Max. 30mA (at 26.4VDC ) |
| Light source |
Infrared LED (940nm) |

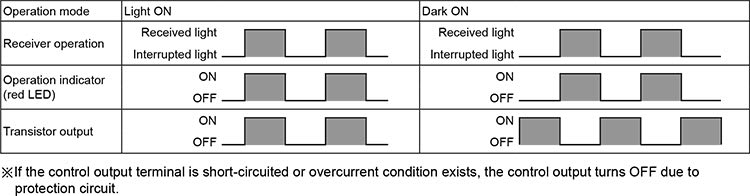

| Operation mode |
Light ON / Dark ON selectable by control wire |
Light ON / Dark ON selectable by control terminal |
| Control output |

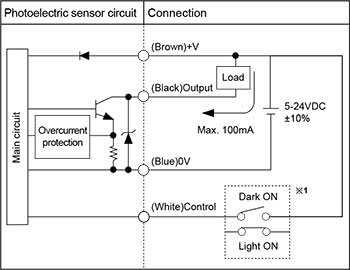

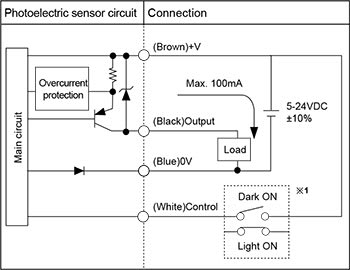

NPN or PNP open collector output
•Load voltage : Max. 30VDC
•Load current : Max. 100mA
•Residual voltage : Max. 1.2V |
| Protection circuit |
Reverse power polarity protection, Overcurrent protection |
| Indicator |
Operation Indicator : red LED |

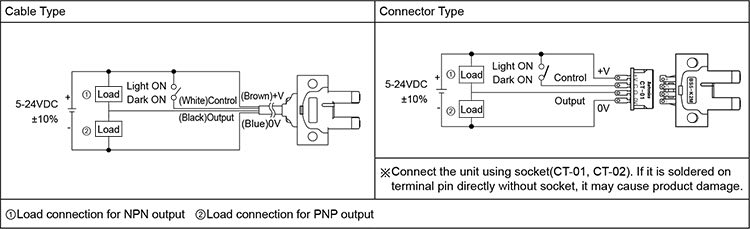

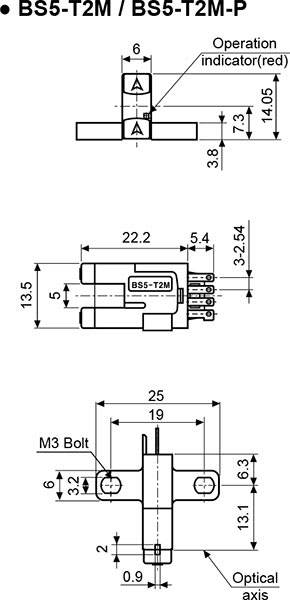

| Connection |
Cable type |
Connector type |
| Insulation resistance |
Min. 20MΩ (at 250VDC megger) |
| Noise resistance |
±240V the square wave noise (pulse width:1μs) by the noise simulator |
| Dielectric strength |
1,000VAC 50/60Hz for 1 minute |
| Vibration |
1.5mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
| Shock |
500m/s2 (approx. 50G) in each X, Y, Z direction for 3 times |
| Environment |
Ambient illumination |
Fluorescent lamp : Max. 1000lx (Receiver illumination) |
| Ambient temperature |
-20 to 55°C, storage : -25 to 85°C |
| Ambient humidity |
35 to 85%RH, storage : 35 to 85%RH |
| Protection structure |
IP50 (IEC standard) |
| Material |
PBT |
| Cable |
Ø3mm, 4-wire, 1m(AWG28, Core diameter: 0.08mm, Number of cores: 19, Insulator out diameter: Ø0.88mm) |
- |
| Approval |
CE |
| Weight *2 |
Approx. 50g (approx. 30g) |
*1 : The value from revolving the circle panel which duty ratio is 1:1.
*2 : The weight includes packaging. The weight in parentheses in for unit only.
* : The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment. |
