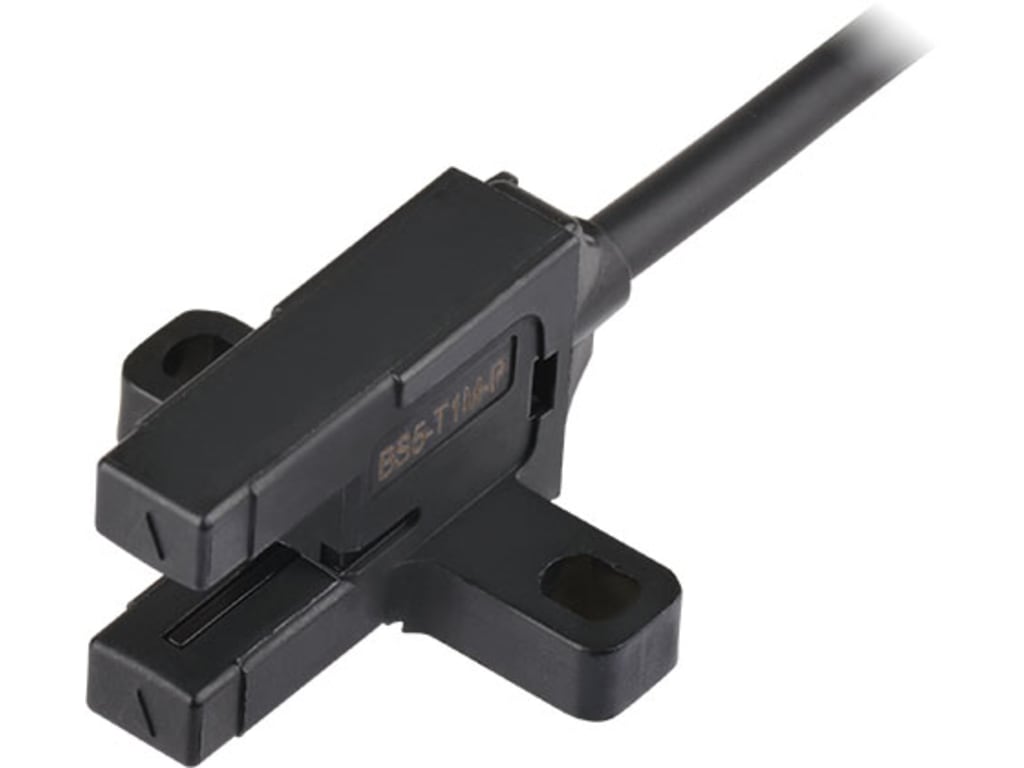

Autonics BS5-T1M-P - Photoelectric Sensors

Name: Autonics BS5-T1M-P - Photoelectric Sensors
Brand: Autonics
SKU: AutonicsBS5-T1M-P
Price: 22.00 USD
Availability: InStock

0 reviews | Model: Autonics BS5-T1M-P

Compare

Sensor, Photo, Micro Style, Light and Dark On, T-Type, Cable Type, PNP Output, 5-24 VDC

Sensing type: Through-beam type(not modulated)
Sensing distance: 5mm(fixed)
Sensing target: Opaque material of min. Ø0.8×2mm
Light source: Infrared LED(940nm)
Response time: Light ON: Max. 20㎲, Dark ON: Max. 100㎲
Dark ON: Max. 100㎲
Power supply: 5-24VDC ±10%(ripple P-P : max. 10%)
Operation mode: Light ON/Dark ON(set by control wire)
Control output: PNP open collector

View Product Details

Your Price: $22.00

Sign-in for EDU Pricing!

Available to Order

Check Lead Time

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics BS5-T1M-P Sensor, Photo, Micro Style, Light and Dark On, T-Type, Cable Type, PNP ...	Autonics BS5-L2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDC	Autonics BS5-T2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDC	Autonics BS5-L2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDC	Autonics BS5-V2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDC	Autonics BS5-Y2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDC	Autonics BS5-K2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDC	Autonics BS5-K2M Sensor, Photo, Micro Style, Light and Dark On, K-Type, Connector Type, NP ...	Autonics BS5-T2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDC	Autonics BS5-V2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDC	Autonics BS5-Y2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDC	Autonics BS5-L1M-P Sensor, Photo, Micro Style, Light and Dark On, L-Type, Cable Type, PNP ...	Autonics BS5-T1M Sensor, Photo, Micro Style, Light and Dark On, T-Type, Cable Type, NPN Ou ...	Autonics BS5-Y1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, Y-Type, 5 ...	Autonics BS5-K1M Sensor, Photo, Micro Style, Light and Dark On, K-Type, Cable Type, NPN Ou ...	Autonics BS5-K1M-P Sensor, Photo, Micro Style, Light and Dark On, K-Type, Cable Type, PNP ...	Autonics BS5-L1M Sensor, Photo, Micro Style, Light and Dark On, L-Type, Cable Type, NPN Ou ...	Autonics BS5-P1ML-P Push Button Type Photomicro Sensor, 0 to 5mm, Light On, 1M Cable, PNP ...	Autonics BS5-P1MD-P Push Button Type Photomicro Sensor, 0 to 5mm, Dark On, 1M Cable, PNP O ...	Autonics BS5-P1MD Push Button Type Photomicro Sensor, 0 to 5mm, Dark On, 1M Cable, NPN Out ...	Autonics BS5-Y1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, Y-Type, 5-2 ...	Autonics BS5-V1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, V-Type, 5 ...	Autonics BS5-V1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, V-Type, 5-2 ...	Autonics BS5-TA2M-P Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, TA-T ...	Autonics BS5-TA2M Photomicro Sensor, Light and Dark On, Connector Type, NPN Output, TA-Typ ...	Autonics BS5-TA1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, TA-Type, ...	Autonics BS5-TA1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, TA-Type, 5 ...	Autonics BS5-R2M-P Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, R-Typ ...	Autonics BS5-R2M Photomicro Sensor, Light and Dark On, Connector Type, NPN Output, R-Type, ...	Autonics BS5-R1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, R-Type, 5 ...	Autonics BS5-R1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, R-Type, 5-2 ...	Autonics BS5-F2M-P Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, F-Typ ...	Autonics BS5-F2M Photomicro Sensor, Light and Dark On, Connector Type, NPN Output, F-Type, ...	Autonics BS5-F1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, F-Type, 5 ...	Autonics BS5-F1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, F-Type, 5-2 ...
Price	$22.00	$4.36	$14.00	$14.00	$14.00	$14.00	$14.00	$14.00	$14.00	$14.00	$14.00	$22.00	$22.00	$22.00	$22.00	$22.00	$22.00	$71.00	$77.00	$77.00
In Stock	Available to Order Check Lead Time	4	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics BS5-T1M-P

Sensing type: Through-beam type(not modulated)
Sensing distance: 5mm(fixed)
Sensing target: Opaque material of min. Ø0.8×2mm
Light source: Infrared LED(940nm)
Response time: Light ON: Max. 20㎲, Dark ON: Max. 100㎲

Sensor, Photo, Micro Style, Light and Dark On, T-Type, Cable Type, PNP Output, 5-24 VDC

The BS5 series photomicro sensors are available in 8 different shapes (K, T, V, L, Y, F, R, TA types), offering maximum flexibility for various user applications and installation settings. The sensors are designed to minimize errors occurring from foreign substances. The sensors offer high visibility with operation indicators viewable from multiple directions.

Sensing type	Through-beam type(not modulated)
Sensing distance	5mm(fixed)
Sensing target	Opaque material of min. Ø0.8×2mm
Light source	Infrared LED(940nm)
Response time	Light ON: Max. 20㎲ Dark ON: Max. 100㎲
Power supply	5-24VDC ±10%(ripple P-P : max. 10%)
Current consumption	Max. 30mA
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(Ø3, 1m)
Environment Ambient illumination	Fluorescent lamp: Max. 1,000lx(received illumination)
Environment Ambient temperature	-20 to 55℃, storage : -25 to 85℃
Protection structure	IP50
Approval	CE
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Response frequency	2kHz
Hysteresis(distance)	0.05mm
Material	Polybutylene terephthalate
Weight	Approx. 50g(approx. 30g)
