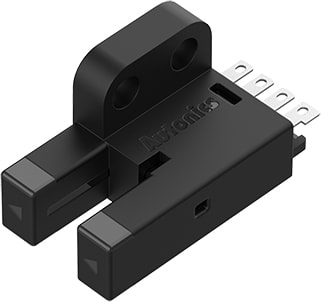

Autonics BS5-R2M-P - Photomicro Sensor Through-beam Type, ≤0.05mm, PNP Open Collector, Light and Dark On, R-Type, Connector Type

0 reviews | Model: Autonics BS5-R2M-P

Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, R-Type, 5-24 VDC (Req. Soket CT-01 or CT-02 Sold Separately)

  • Connection: Connector Type
  • Shape: R-Type
  • Control output: PNP open collector
  • Sensing type: Through-beam type
  • Hysteresis (distance): ≤0.05mm
  • Response time: Light ON: Max. 20µs, Dark ON: Max. 100µs
  • Minimize detection errors and improved visibility
    • Sensing side and body level has been improved to minimize detection errors occurring from foreign substances
    • Added operation indicators viewable from multiple directions
  • Indicator ON when light received and indicator ON when light blocked models available
  • High shock and vibration resistance
    • shock: 15,000 m/s² (approx. 1,500G), vibration: 10 to 2,000 Hz (1.5 amplitude)
  • Switch between Light ON and Dark ON modes using control terminal/wire
  • High-speed response frequency: 2kHz
View Product Details

Your Price: $14.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • View Payment Options
Product Expert

Have a question? Ask an expert.

Live Chat 877.571.7901 Email

Items in This Series

Autonics BS5-R2M-PAutonics BS5-K2MAutonics BS5-L2MAutonics BS5-T2MAutonics BS5-Y2MAutonics BS5-V2MAutonics BS5-K1MAutonics BS5-P1MDAutonics BS5-P1MD-PAutonics BS5-P1ML-PAutonics BS5-K1M-PAutonics BS5-K2M-PAutonics BS5-L1MAutonics BS5-L2M-PAutonics BS5-Y2M-PAutonics BS5-V2M-PAutonics BS5-T2M-PAutonics BS5-T1M-PAutonics BS5-T1MAutonics BS5-L1M-PAutonics BS5-Y1M-PAutonics BS5-Y1MAutonics BS5-V1M-PAutonics BS5-V1MAutonics BS5-TA2M-PAutonics BS5-TA2MAutonics BS5-TA1M-PAutonics BS5-TA1MAutonics BS5-R2MAutonics BS5-R1M-PAutonics BS5-R1MAutonics BS5-F2M-PAutonics BS5-F2MAutonics BS5-F1M-PAutonics BS5-F1M
ProductAutonics BS5-R2M-P Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, R-Typ ...Autonics BS5-K2M Sensor, Photo, Micro Style, Light and Dark On, K-Type, Connector Type, NP ...Autonics BS5-L2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDCAutonics BS5-T2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDCAutonics BS5-Y2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDCAutonics BS5-V2M Sensor, Photo, Micro Style, Light and Dark On, NPN Output, 5-24 VDCAutonics BS5-K1M Sensor, Photo, Micro Style, Light and Dark On, K-Type, Cable Type, NPN Ou ...Autonics BS5-P1MD Push Button Type Photomicro Sensor, 0 to 5mm, Dark On, 1M Cable, NPN Out ...Autonics BS5-P1MD-P Push Button Type Photomicro Sensor, 0 to 5mm, Dark On, 1M Cable, PNP O ...Autonics BS5-P1ML-P Push Button Type Photomicro Sensor, 0 to 5mm, Light On, 1M Cable, PNP ...Autonics BS5-K1M-P Sensor, Photo, Micro Style, Light and Dark On, K-Type, Cable Type, PNP ...Autonics BS5-K2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDCAutonics BS5-L1M Sensor, Photo, Micro Style, Light and Dark On, L-Type, Cable Type, NPN Ou ...Autonics BS5-L2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDCAutonics BS5-Y2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDCAutonics BS5-V2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDCAutonics BS5-T2M-P Sensor, Photo, Micro Style, Light and Dark On, PNP Output, 5-24 VDCAutonics BS5-T1M-P Sensor, Photo, Micro Style, Light and Dark On, T-Type, Cable Type, PNP ...Autonics BS5-T1M Sensor, Photo, Micro Style, Light and Dark On, T-Type, Cable Type, NPN Ou ...Autonics BS5-L1M-P Sensor, Photo, Micro Style, Light and Dark On, L-Type, Cable Type, PNP ...Autonics BS5-Y1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, Y-Type, 5 ...Autonics BS5-Y1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, Y-Type, 5-2 ...Autonics BS5-V1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, V-Type, 5 ...Autonics BS5-V1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, V-Type, 5-2 ...Autonics BS5-TA2M-P Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, TA-T ...Autonics BS5-TA2M Photomicro Sensor, Light and Dark On, Connector Type, NPN Output, TA-Typ ...Autonics BS5-TA1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, TA-Type, ...Autonics BS5-TA1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, TA-Type, 5 ...Autonics BS5-R2M Photomicro Sensor, Light and Dark On, Connector Type, NPN Output, R-Type, ...Autonics BS5-R1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, R-Type, 5 ...Autonics BS5-R1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, R-Type, 5-2 ...Autonics BS5-F2M-P Photomicro Sensor, Light and Dark On, Connector Type, PNP Output, F-Typ ...Autonics BS5-F2M Photomicro Sensor, Light and Dark On, Connector Type, NPN Output, F-Type, ...Autonics BS5-F1M-P Photomicro Sensor, Light and Dark On, Cable Type, PNP Output, F-Type, 5 ...Autonics BS5-F1M Photomicro Sensor, Light and Dark On, Cable Type, NPN Output, F-Type, 5-2 ...
