Autonics BMS2M-MDT Photoelectric Sensor, Retroreflective, Light and Dark On

Name: Autonics BMS2M-MDT Photoelectric Sensor, Retroreflective, Light and Dark On
Brand: Autonics
SKU: AutonicsBMS2M-MDT
Price: 63.00 USD
Availability: InStock

0 reviews | Model: Autonics BMS2M-MDT

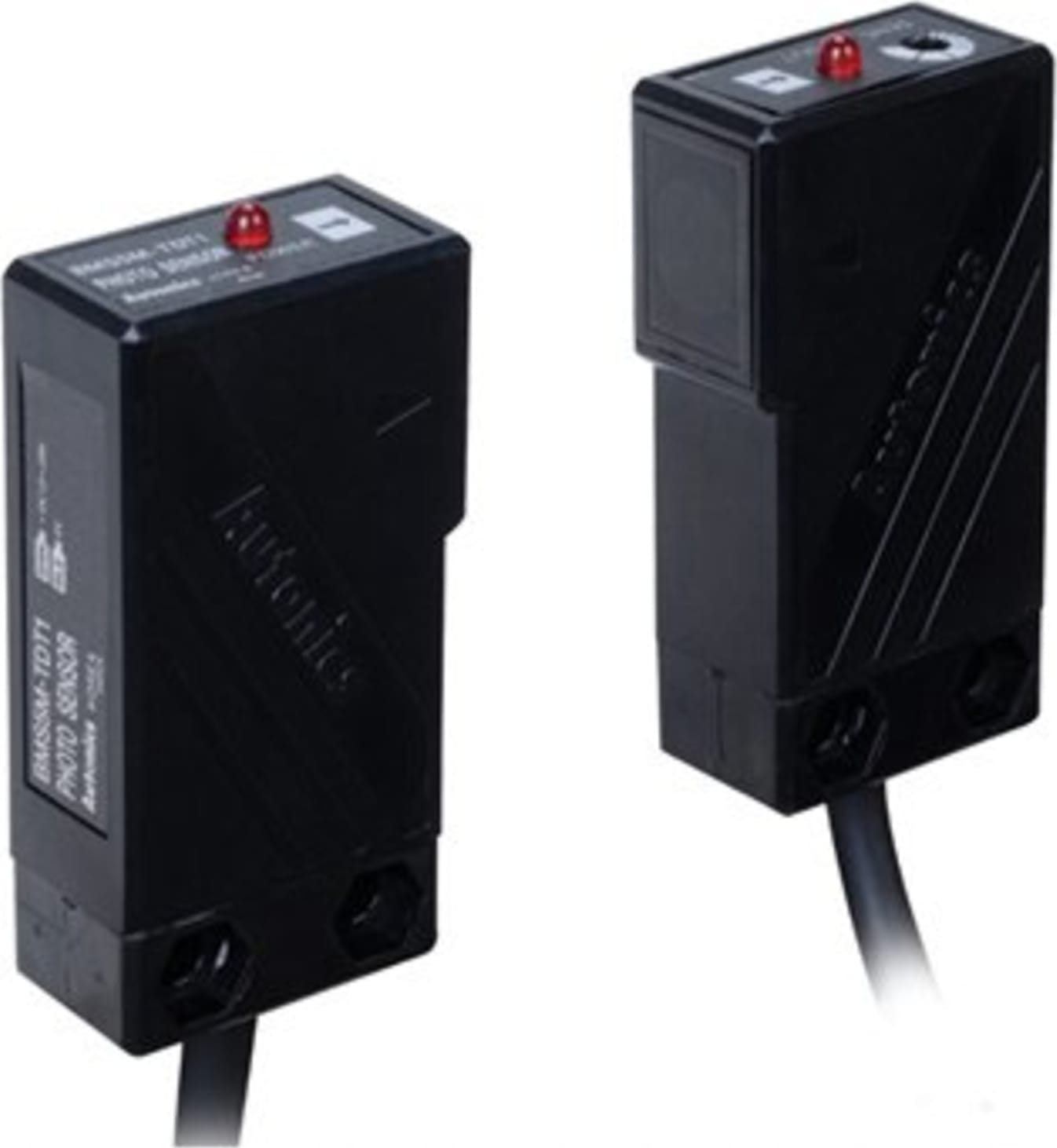

Autonics Amplifier built-in type photoelectric sensor (Side sensing type)

Compare

Sensor, Photo, Retroreflective, Light and Dark On, NPN Output, 12-24 VDC

Sensor, Photo, Retroreflective, Light and Dark On, NPN Output, 12-24 VDC
Reverse power polarity and overcurrent
High speed response : Max. 1ms
Built-in the sensitivity adjustment VR (Except for through-beam type)

View Product Details

List Price: $63.00

Clearance: $29.00

54% OFF!

1 left at this price

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Autonics BMS2M-MDT Sensor, Photo, Retroreflective, Light and Dark On, NPN Output, 12-24 VD ...	Autonics BMS5M-TDT Sensor, Photo, Through Beam, Light and Dark On, NPN, Output, 12-24 VDC	Autonics BMS5M-TDT-P Sensor, Photo, Through Beam, Light and Dark On, PNP, Output, 12-24 VD ...	Autonics BMS2M-MDT-P Sensor, Photo, Retroreflective, Light and Dark On, PNP Output, 12-24 ...	Autonics BMS300-DDT Sensor, Photo, Diffuse Reflective, Light and Dark On, NPN Output, 12-2 ...	Autonics BMS300-DDT-P Sensor, Photo, Diffuse Reflective, Light and Dark On, PNP Output, 12 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics BMS2M-MDT

Reverse power polarity and overcurrent
High-speed response: Max. 1ms
Built-in the sensitivity adjustment VR (Except for through-beam type)

Sensor, Photo, Retroreflective, Light and Dark On, NPN Output, 12-24 VDC

The BMS series side sensing type photoelectric sensors feature high-speed response time under 1 ms. Users can also switch between Light ON and Dark ON modes using the control wire and sensitivity adjuster is included for easier configuration. The sensors are available in through-beam type, retroreflective type, and diffuse reflective types.

Autonics BMS Series General Specifications
Model	NPN open collector output	BMS5M-TDT	BMS2M-MDT	BMS300-DDT
	PNP open collector output	BMS5M-TDT-P	BMS2M-MDT-P	BMS300-DDT-P
Sensing type		Through-beam	Retroreflective	Diffuse reflectiv
Sensing distance		5m	0.1 to 2m ^*1	300mm ^*2
Sensing target		Opaque materials of Min. ø10mm	Opaque materials of Min. ø60mm	Translucent, Opaque materials
Hysteresis		-		Max. 20% at rated settingdistance
Response time		Max. 1ms
Power supply		12-24VDC ±10%(Ripple P-P : Max. 10%)
Current consumption		Max. 50mA	Max. 45mA
Light source		Infrared LED(940nm)
Sensitivity adjustment		-		Adjustable VR
Response time		Selectable Light ON or Dark ON by control wire
Control output		NPN or PNP open collector output Load voltage : Max. 30VDC Load current : Max. 200mA Residual voltage - NPN : Max. 1V, PNP : Max. 2.5V
Protection circuit		Reverse power polarity, Output short-circuit(Overcurrent) protection circuit
Indicator		Operation indicator : red LED, Power indicator : red LED(BMS5M-TDT1)
Insulation resistance		Min. 20MΩ(at 500VDC megger)
Noise resistance		±240V the square wave noise(pulse width : 1μs) by the noise simulator
Dielectric strength		1000VAC 50/60Hz for 1minute
Vibration		1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times
Environment	Ambient illumination	Sunlight : Max. 11,000lx, Incandescent lamp : Max. 3,000lx
	Ambient temperature	-10 to 60°C, storage : -25 to 70°C
	Ambient humidity	35 to 85%RH, storage : 35 to 85%RH
Material		Case : ABS, Sensing part : Acryl (Through-beam : PC)
Cable		ø5, 4-wire, Length : 2m(Emitter of through-beam type: ø5, 2-wire, Length : 2m) (AWG22, Core diameter : 0.08mm, Numner of cores : 60, Insulator out diameter : ø1.25)
Accessories	Individual	-	Reflector(MS-2), VR adjustment driver	VR adjustment driver
	Common	Mounting bracket, Bolts/nuts
Approval		CE
Unit weight		Approx. 180g	Approx. 110g	Approx. 100g
1: It is mounting distance between sensor and reflector MS-2 and it is same when MS-5 is used. It is detectable under 0.1m. 2: It is for Non-glossy white paper(100×100mm) *The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
