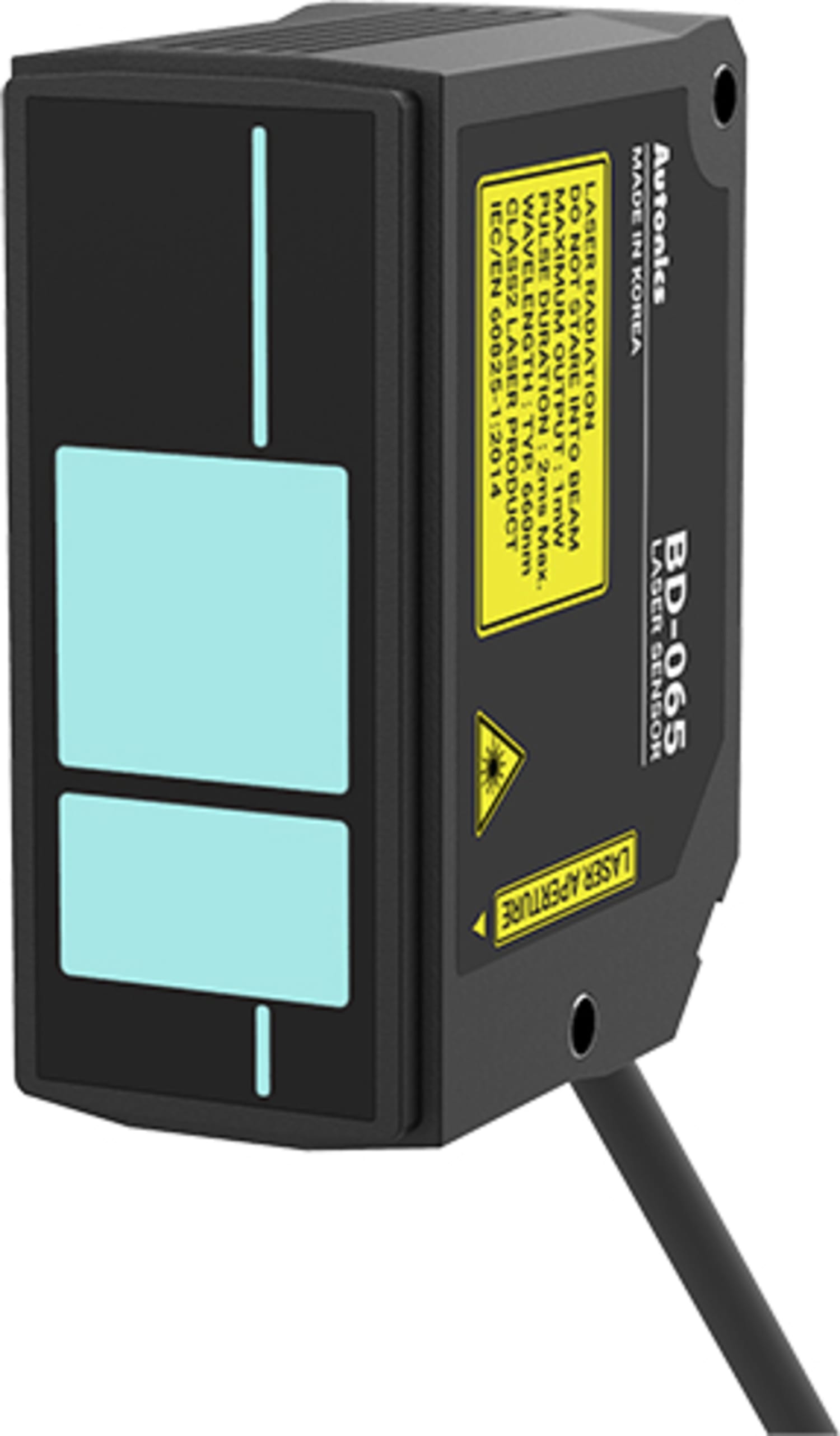

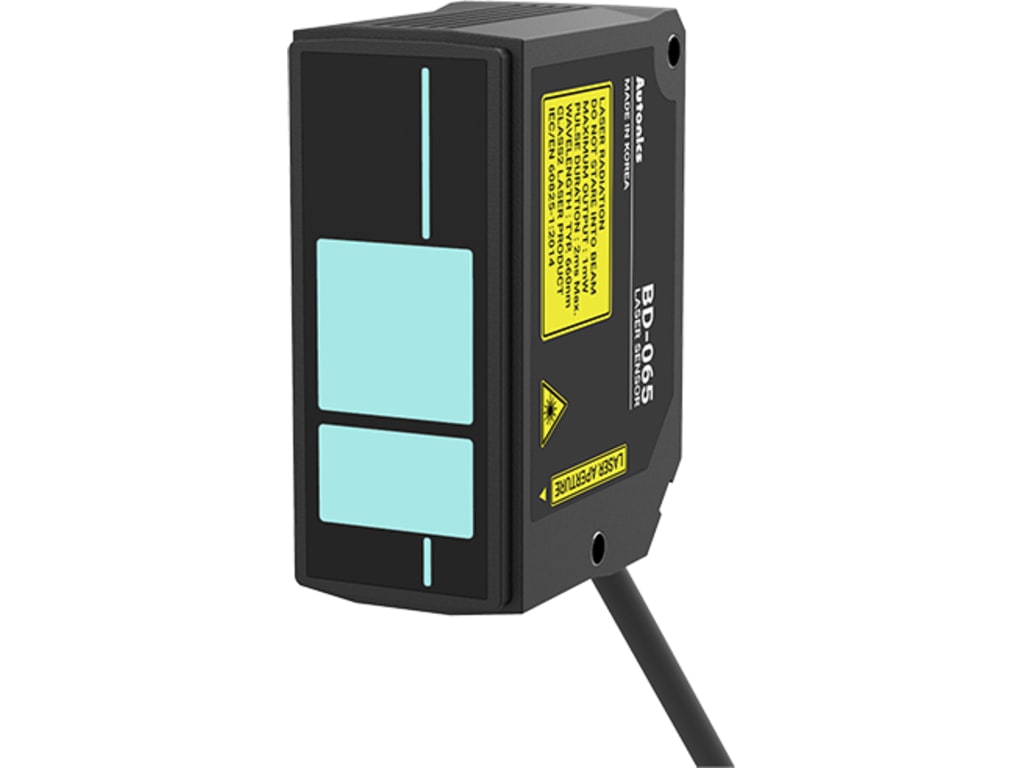

Autonics BD-065 - Laser Displacement Sensor, Resolution: 2㎛, Reference distance: 65mm

Name: Autonics BD-065 - Laser Displacement Sensor, Resolution: 2㎛, Reference distance: 65mm
Brand: Autonics
SKU: AutonicsBD-065
Price: 1044.00 USD
Availability: InStock

0 reviews | Model: Autonics BD-065

Compare

Laser Displacement Sensor, Resolution: 2?, Reference distance: 65mm

Reference(65mm): Approx. 290x1180
Resolution : 2um
Reference distance : 65mm
Max. measurement range : 50 to 80mm
Linearity : 0.1% F.S. (in 55 to 75mm)
Easy maintenance with detachable sensor head/amplifier unit
Accurate measurement regardless of target color or material
Interconnection of up to 8 sensor amplifier units: Mutual interference prevention function and auto channel sorting
Various calculation functions supported (addition, subtraction, average)
Sensor head: IP67 protection structure

View Product Details

Your Price: $1,044.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics BD-065 Laser Displacement Sensor, Resolution: 2?, Reference distance: 65mm	Autonics BD-030 Laser Displacement Sensor, Resolution: 1?, Reference distance: 30mm	Autonics BD-100 Laser Displacement Sensor, Resolution: 4?, Reference distance: 100mm	Autonics BD-A1 Laser Displacement Sensor (Amplifier Unit)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics BD-065 - Laser Displacement Sensor, Reference distance: 65mm

Various filter functions for stable measurement (movement average, differential, median)
Auto sensitivity adjustment (1-point, 2-point teaching)
DIN rail and wall mount support (bracket accessory required for wall mount)
Sensor head: IP67 protection structure

The BD series laser displacement sensors can measure thickness, width, level difference, disparity, curve, evenness of target objects by detecting the amount of displacement. The sensors offer accurate and stable measurement regardless of target color or material. The sensor head and amplifier unit are detachable for easier maintenance and up to 8 sensor amplifier units can be interconnected with mutual interference prevention function.

Spot diameter	Near(55mm): Approx. 360×1590 ㎛ Reference(65mm): Approx. 290×1180 ㎛ Far(75mm): Approx. 210×830 ㎛
Resolution	2㎛
Reference distance	65mm
Max. measurement range	50 to 80mm
Linearity	0.1% F.S. (in 55 to 75mm)
Temperature Characteristics	0.06% F.S./℃
Power supply	Using power from the amplifier unit.
Light source	Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014)
Light Source_Optical method	Diffuse reflection
Light Source_Laser class	Class I (FDA(CDRH) CFR Part 1002)
Light Source_Output	Max. 1㎽
Operation indicator	Power indicator: red LED, Laser emission indicator: green LED, NEAR/FAR indicator: green LED
Connection method	Connector type
Insulation resistance	Over 20MΩ (at 500VDC megger)
Noise immunity	Square shaped noise by noise simulator (pulse width: 1㎲, cycle: 10ms) ±500V
Dielectric strength	1,000VAC 50/60Hz for 1 minute
Vibration	1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment_Ambient illumination	Max. Incandescent lamp 10,000 lx
Environment_Ambient temperature	-10 to 50℃, storage: -15 to 60℃
Environment_Ambient humidity	Under 85%RH, storage: under 85%RH
Protection structure	except connector of extension cable)
Material	Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride
Amplifier unit compatibility	BD Series amplifier unit: 1
Accessories	Ferrite core (made by TDK co. ZCAT2132-1130), Mounting bracket, Bolt, Nut
Weight	Approx. 233g (approx. 68g)
