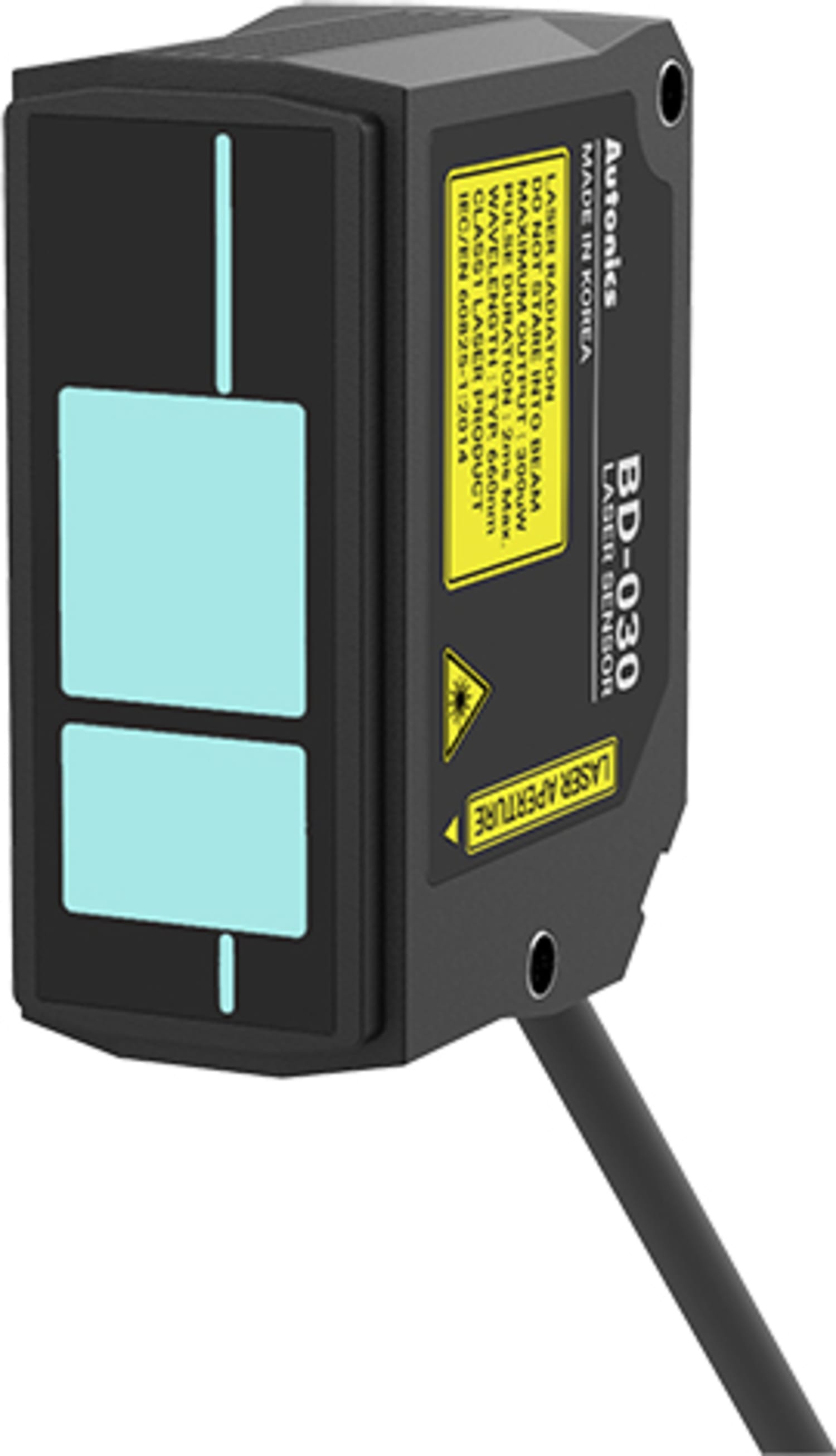

| Spot diameter |
Near(25mm): Approx. 290x790 ㎛
Reference(30mm): Approx. 240x660 ㎛
Far(35mm): Approx. 190x450 ㎛ |
| Resolution |
1㎛ |
| Reference distance |
30mm |
| Max. measurement range |
20 to 40mm |
| Linearity |
0.1% F.S. (in 25 to 35mm) |
| Temperature Characteristics |
0.05% F.S./℃ |
| Power supply |
Using power from the amplifier unit. |
| Light source |
Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method |
Diffuse reflection |
| Light Source_Laser class |
Class 1 (IEC/EN) |
| Light Source_Output |
Max. 300㎼ |
| Operation indicator |
Power indicator: red LED, Laser emission indicator: green LED, NEAR/FAR indicator: green LED |
| Connection method |
Connector type |
| Insulation resistance |
Over 20MΩ (at 500VDC megger) |
| Noise immunity |
Square shaped noise by noise simulator (pulse width: 1㎲, cycle: 10ms) ±500V |
| Dielectric strength |
1,000VAC 50/60Hz for 1 minute |
| Vibration |
1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination |
Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature |
-10 to 50℃, storage: -15 to 60℃ |
| Environment_Ambient humidity |
Under 85%RH, storage: under 85%RH |
| Protection structure |
except connector of extension cable) |
| Material |
Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride |
| Amplifier unit compatibility |
BD Series amplifier unit: 1 |
| Accessories |
Ferrite core (made by TDK co. ZCAT2132-1130), Mounting bracket, Bolt, Nut |
| Weight |
Approx. 209g (approx. 56g) |
