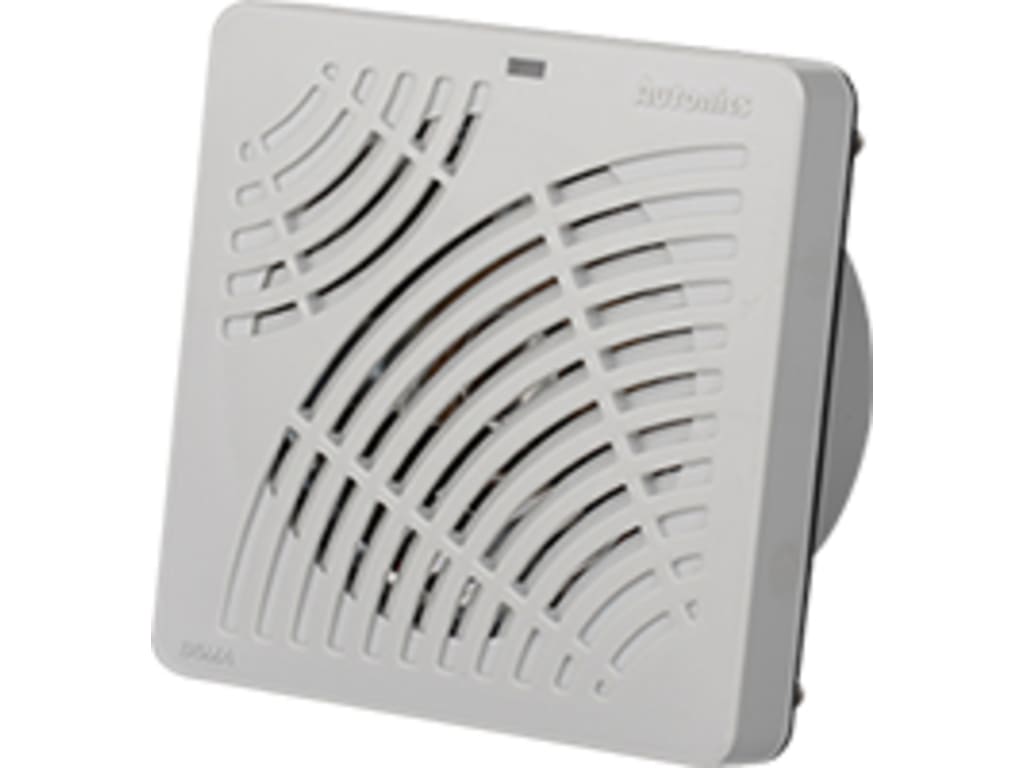

Autonics B6MA-4GDN Melody Buzzer

Name: Autonics B6MA-4GDN Melody Buzzer
Brand: Autonics
SKU: AutonicsB6MA-4GDN
Price: 75.00 USD
Availability: InStock

0 reviews | Model: Autonics B6MA-4GDN

Compare

Melody Buzzer, 12-24VDC, Max 105dB (0.1m) Max 95dB(1m), 4 Type Sound, IP65, Green LED, NPN Open Collector Input

Green LED, NPN Open Collector Input
Selectable melody among 4 types and adjustable sound pressure, sound pressure: approx. 105dB (0.1m)
Flashes red LED during operating buzzer
Mounting hole: Ø66mm
IP65 protection structure (front panel)
One-touch screwless connection with end sleeve (ferrule) crimp terminal

View Product Details

Your Price: $75.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics B6MA-4GDN Melody Buzzer, 12-24VDC, Max 105dB (0.1m) Max 95dB(1m), 4 Type Sound, I ...	Autonics B6MA-4GDP Melody Buzzer, 12-24VDC, Max 105dB (0.1m) Max 95dB(1m), 4 Type Sound, I ...	Autonics B6MA-4GLN Melody Buzzer, 110 - 220 VAC 50/60 Hz, Max 105dB (0.1m) Max 95dB(1m), 4 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics B6MA-4GDN - Melody Buzzer

Green LED, NPN Open Collector Input
Selectable melody among 4 types and adjustable sound pressure, sound pressure: approx. 105dB (0.1m)
Flashes red LED during operating buzzer
Mounting hole: Ø66mm
IP65 protection structure (front panel)

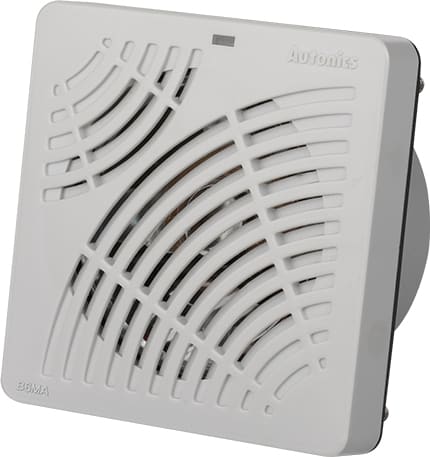

The B6MA series Ø66 mm melody buzzers offer 4 different melodies (ambulance, police siren, phone ring, Fur Elise). The buzzers provide rich sound with volume up to 95 ㏈ (at 1 meter). The front plate also has an IP65 rating and can be safely applied in wet or dusty environments.

General Specifications
Item		Melody Buzzer
Model		B6MA-4GD-X^※1	B6MA-4GL-X^※1
Power supply		12-24VDC	110-220VAC~ 50/60Hz
Power consumption		Max. 3W	Max. 5VA
Sound pressure		Max. 105±10%dB (0.1m), max. 95±10%dB (1m)
Sound type		4 types (ambulance, police, ringtone, for elise)^※3
Mounting hole		Ø66mm
Operation indicator		Red LED
Insulation resistance		Over 1,000MΩ (between all terminals and case at 500VDC megger)
Dielectric strength		500VAC 50/60Hz for 1 min (between all terminals and case)	2,000VAC 50/60Hz for 1 min (between all terminals and case)
Vibration		0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock		500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Environment	Ambient temperature	-10 to 55℃, storage: -20 to 65℃
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Protection structure		IP65 (front panel)
Material	Body	Polycarbonate
	Cap	Polycarbonate
Tightening torque		4.08 to 6.12kgf.cm (0.4 to 0.6N.m)
Approval		CE
Weight		Approx. 170g (approx. 130g)^※5
※1.X indicates input type: N (NPN open collector input), P (PNP open collector input) ※2. It is rated at power supply 24VDC. (Sound pressure may be decreased when using 12VDC.) ※3. You may sample the melodies at www.autonics.com. ※4. The weight is for 10 units including packaging. The weight in parenthesis is for a single unit. ※5. The weight includes packaging. The weight in parenthesis is for unit only. ※Environment resistance is rated at no freezing or condensation
