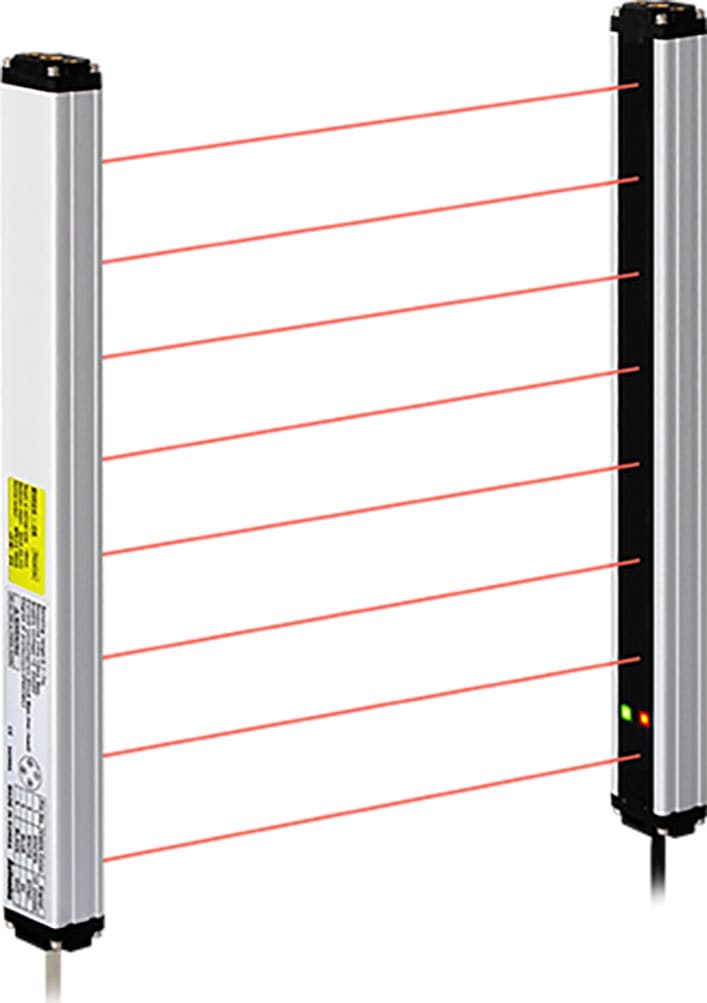

Autonics Area Demo, Area Sensor, BW20 and BW40 Series

Name: Autonics Area Demo, Area Sensor, BW20 and BW40 Series
Brand: Autonics
SKU: AutonicsArea
Price: 100.00 USD
Availability: InStock

0 reviews | Model: Autonics Area

Compare

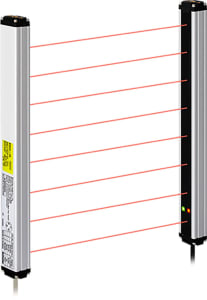

Demo, Area Sensor, BW20 and BW40 Series

Demo, Area Sensor, BW20 and BW40 Series
Ambient illuminance: 100,000lux (upgraded feature)
Long sensing distance up to 7m
22 configurations (number of optics: 4 to 48/optical pitch: 20, 40mm /detection area: 120 to 940mm)
20mm optical pitch minimizes non-detection area (BW20-□)
Bright LED indicators on emitter and receiver
Mutual interference prevention function, self-diagnosis function, stable operation test
IP65 protection structure (IEC standard)

View Product Details

List Price: $100.00

In Stock:

View Payment Options

Recommended for you

Autonics Area Demo, Area Sensor, BW20 and BW40 Series

Demo, Area Sensor, BW20 and BW40 Series

Ambient illuminance: 100,000lux (upgraded feature)
Long sensing distance up to 7m
22 configurations (number of optics: 4 to 48/optical pitch: 20, 40mm /detection area: 120 to 940mm)
20mm optical pitch minimizes non-detection area (BW20-□)
Bright LED indicators on emitter and receiver
Mutual interference prevention function, self-diagnosis function, stable operation test

The BW series general purpose area sensors feature long sensing distance up to 7 m and are available in 22 different configurations based on the number of optics, optical pitch, and detection area size. With ambient illuminance limit of 100,000 lux, the sensors can operate error-free even under direct sunlight. Bright LED indicators are present in both the emitter and the receiver, making it easy to identify the operation status. Mutual interference prevention is possible with master/slave connection method, allowing multiple units to be installed in a row.

Autonics BW Series General Specifications
Model	NPN open collector output (standard)	BW20-08	BW20-20	BW20-32	BW20-44	BW40-04	BW40-10	BW40-16	BW40-22
		BW20-12	BW20-24	BW20-36	BW20-48	BW40-06	BW40-12	BW40-18	BW40-24
		BW20-16	BW20-28	BW20-40		BW40-08	BW40-14	BW40-20
	PNP open collector output	BW20-08P	BW20-20P	BW20-32P	BW20-44P	BW40-04P	BW40-10P	BW40-16P	BW40-22P
		BW20-12P	BW20-24P	BW20-36P	BW20-48P	BW40-06P	BW40-12P	BW40-18P	BW40-24P
		BW20-16P	BW20-28P	BW20-40P		BW40-08P	BW40-14P	BW40-20P
Sensing type		Through-beam
Sensing distance		0.1 to 7m
Sensing target		Opaque materials of Min.Ø30mm				Opaque materials of Min.Ø50mm
Optical axis pitch		20mm				40mm
Number of optical axis		8 to 48EA				4 to 24EA
Sensing width		140 to 940mm				120 to 920mm
Power supply		12-24VDC ±10%(Ripple P-P : Max. 10%)
Reverse polarity protection		Built-in
Current consumption		Emitter : Max. 80mA, Receiver : Max. 80mA
Control output		NPN or PNP open collector output Load voltage : Max. 30VDC Load current : Max. 100mA Residual voltage - NPN : Max. 1V, PNP : Min. 2.5V
Operation mode		Light ON (fixed)
Short-circuit protection		Built-in
Response time		Max. 12ms
Light source		Infrared LED(850nm modulated)
Synchronization type		Synchronized by synchronous line
Self-diagnosis		Ambient light monitoring, Emitter/Receiver light circuit monitoring, Output circuit monitoring
Interference protection		Interference protection by master/slave function
Environment	Ambient illumination	Sunlight : 10,000lx (received light side illumination)
	Ambient temperature	-10 to 55°C, storage : -20 to 60°C
	Ambient humidity	35 to 85%RH, storage : 35 to 85%RH
Noise resistance		±240V the square wave noise (pulse width: 1μs) by the noise simulation
Dielectric strength		1,000VAC 50/60Hz for 1minute
Insulation resistance		Min. 20MΩ(at 500VDC megger)
Vibration		1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hour
Shock		500m/s² (approx. 50G) in X, Y, Z directions for 3 times
Protection		IP65(IEC standard)
Material		• Case : Aluminum • Cover, Sensing part : Acrylic
Cable		Ø5, 4-core, length: 300mm, M12 connector
Accessory		Bracket A : 4EA, Bracket B : 4EA, Fixing bolt : 8EA
Approval		CE
Unit weight		Approx. 1.4kg(for 48 optical axises)
*The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
