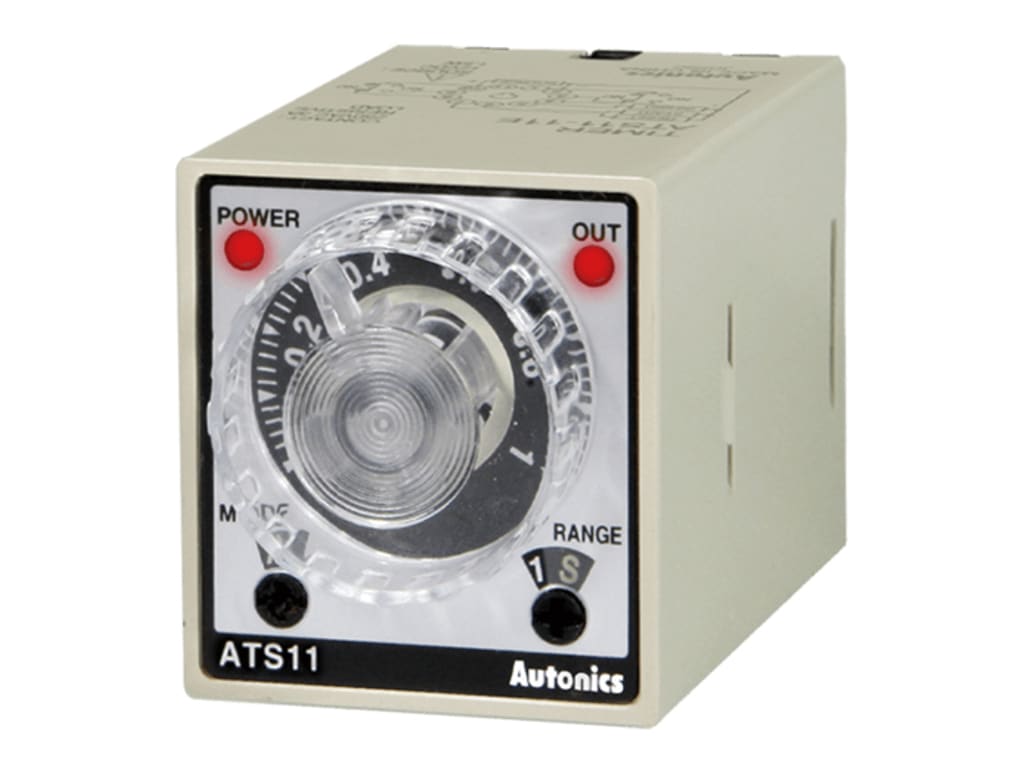

Autonics ATS11-21E - Compact Multi-Function Analog Timers

Name: Autonics ATS11-21E - Compact Multi-Function Analog Timers
Brand: Autonics
SKU: AutonicsATS11-21E
Price: 32.00 USD
Availability: InStock

0 reviews | Model: Autonics ATS11-21E

Compare

Small Analog Timer, 6-Mode, Multi-Range(0.1 Sec-10Hours), 2 SPDT, 24VAC/VDC, 11-Pin, (socket req'd)

Operation method: Time setting
Time operation: Signal on start
Terminal: 11-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC
Signal Input Method: No-voltage input(NPN)
Control output: Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
Approval: CE

View Product Details

Your Price: $32.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics ATS11-21E Small Analog Timer, 6-Mode, Multi-Range(0.1 Sec-10Hours), 2 SPDT, 24VAC ...	Autonics KRN100-12001-00-0S Recorder, 100mm, 12Channel, 4Alarm output, 100 to 240VAC
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Autonics ATS11-21E - Small Analog Timer, 6-Mode, Multi-Range(0.1 Sec-10Hours), 2 SPDT, 24VAC/VDC, 11-Pin, (socket required)

Operation method: Time setting
Time operation: Signal on start
Terminal: 11-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC
Signal Input Method: No-voltage input(NPN)
Control output: Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
Approval: CE

The ATS8W/11W series analog twin timers feature 6 output operation modes and 12 time setting ranges for application in diverse timing control tasks. The timers feature independent dials for separate ON/OFF timing control. Simple time configuration and operation is possible with dual analog dials. The ATS8W models support 8-pin connection and the ATS11W models support 11-pin connection.

Operation method	Time setting
Output Operation	SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
Time operation	SIGNAL ON START
Terminal	11-pin plug
Power supply	24VAC~ 50/60Hz, 24VDC
Setting range	0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
Signal Input Method	No-voltage input(NPN)
Control output	Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
Approval	CE
Min. signal Width	START, INHIBIT, RESET: [No-voltage input] - Short-circuit impedance: Max. 1kΩ,
Residual voltage	Max. 0.5V, Open-circuit impedance: Min. 100kΩ
Accessories	Bracket
Environment Ambient temperature	-10 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH
Weight	Approx. 95g (approx. 70g)

Tech Specs

Environmental Testers / Physical Property/Stopwatches / Timers / Clocks Template
Timer	Yes
Test Equipment General Attributes
Safety Approval	CE, RoHS
Product Weight	0.2 LBS
Shipping Weight	1 LBS
Power Supply Voltage	120V 50/60 Hz
Country of Origin	Korea
