Autonics AT11DN Multi-Function Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 100-240VAC/24-240 VDC, 11-Pin

Name: Autonics AT11DN Multi-Function Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 100-240VAC/24-240 VDC, 11-Pin
Brand: Autonics
SKU: AutonicsAT11DN
Price: 47.00 USD
Availability: InStock

0 reviews | Model: Autonics AT11DN

Autonics ATN Series Universal Voltage Multi-Function Timer

Compare

Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 100-240VAC/24-240 VDC, 11-Pin, (socket req''d)

AT11DN Universal Voltage Multi-Function Timer
Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 100-240VAC/24-240 VDC, 11-Pin, (socket required)
Realization of wide range of power supply :100-240VAC 50/60Hz / 24-240VDC universal, 24VAC 50/60Hz / 24VDC universal, 12VDC
Various output operation (6 kinds modes)
Multi time range (16 kinds of time range)
Wide control time (0.05sec. to 100hour)
Easy setting of time, time range, output operation mode
Easy to check output status by LED display

View Product Details

Your Price: $47.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics AT11DN Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 100-240VAC/24-240 VDC, 11-Pi ...	Autonics AT11EN Timer, Analog, 6-Mode, Multi-Range, 2 SPDT, 100-240VAC/24-240 VDC, 11 Pin ...	Autonics AT8N Timer, Analog, 6-Mode, Multi-Range, DPDT or SPDT Timed/Instant.,100-240VAC/ ...	Autonics AT11DN-1 Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 12 VDC, 11-Pin, (socket re ...	Autonics AT11DN-2 Timer, Analog, 6-Mode, Multi-Range, DPDT(2c), 24VAC/24VDC, 11-Pin, (sock ...	Autonics AT11EN-1 Timer, Analog, 6-Mode, Multi-Range, 2 SPDT, 12VDC, 11 Pin (socket req'd)	Autonics AT11EN-2 Timer, Analog, 6-Mode, Multi-Range, 2 SPDT, 24VAC/24VDC, 11 Pin (socket ...	Autonics AT8N-1 Timer, Analog, 6-Mode, Multi-Range, DPDT or SPDT Timed/Instant., 12VDC (so ...	Autonics AT8N-2 Timer, Analog, 6-Mode, Multi-Range, DPDT or SPDT Timed/Instant., 24VAC/24V ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics ATN Series Universal Voltage Multi-Function Timer

Various output operation (6 kinds modes)
Multi time range (16 kinds of time range)
Wide control time (0.05sec. to 100hour)
Easy setting of time, time range, output operation mode
Easy to check output status by LED display

Free voltage Multi Function timer ATN Series realizes wide range of power supply (100-240VAC 50/60Hz / 24-240VDC, 24VAC 50/60Hz / 24VDC, 12VDC) and control time (0.05sec~100hour) to increase customer's convenience. Moreover, it is easy to check output status by built-in LED display. The series provides suitable time solution for customers' environment with 6 kinds of various output operation modes and 16 kinds of time range.

*Sockets (PG-08, PS-08(N)) are sold separately.

*Sockets (PG-11, PS-11(N)) are sold separately.

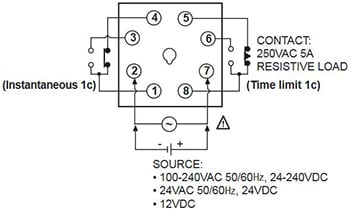

Connections

AT8N

[A], [F] mode

[A1], [B], [F1], [I] mode

AT11DN

AT11DEN

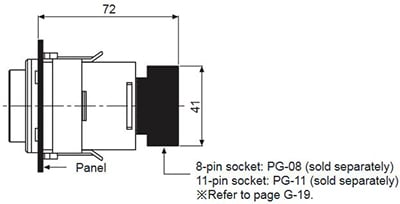

Dimensions

(unit: mm)

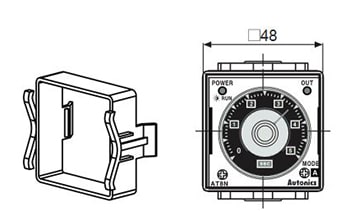

Bracket

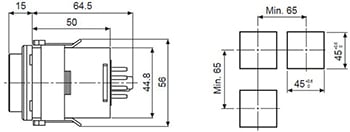

Panel cut-out

ATN Series

Unit Description

*Please rotate the time range switch and operation mode switch to CW (Clockwise) direction.

Autonics ATN Series General Specifications
Model		AT8N-[]	AT11EN-[]	AT11DN-[]
Function		Multi function timer
Control time setting range		0.05 sec. to 100 hour
Power supply		• 100-240VAC 50/60Hz, 24-240VDC universal • 24VAC 50/60Hz, 24VDC universal • 12VDC
Allowable voltage range		90 to 110% of rated voltage
Power consumption		• Max. 4.3VA (100-240VAC), Max. 2W (24-240VDC) • Max. 4.5VA (24VAC), Max. 2W (24VDC) • Max. 1.5W (12VDC)		• Max. 3.5VA (100-240VAC), Max. 1.5W (24-240VDC) • Max. 4VA (24VAC), Max. 1.5 (24VDC) • Max. 1W (12VDC)
Reset time		Max. 100ms
Min. input signal width	START	—	Min. 50ms
	INHIBIT
	RESET
Input	START	—	No-voltage input - Short-circuit impedance: Max. 1kΩ Residual voltage: Max. 0.5V Open-circuit impedance: Min. 100kΩ
	INHIBIT
	RESET
Timing operation		Power ON start type	Signal ON Start type
Control output	Contact type	Time limit DPDT (2c), Time limit DPDT (1c)+ Instantaneous DPDT (1c) by selecting output operation mode	Time limit SPDT (1c), Instantaneous SPDT (1c)	Time limit DPDT (2c)
	Contact capacity	250VAC 5A resistive load
Relay life cycle	Mechanical	Min. 10,000,000 operations
	Electrical	Min. 100,000 operations (250VAC 5A resistive load)
Repeat error		Max. ±0.2% ±10ms
SET error		Max. ±5% ±50ms
Voltage error		Max. ±0.5%
Temperature error		Max. ±2%
Insulation resistance		Min. 100MΩ (at 500VDC megger)
Dielectric strength		2000VAC 50/60Hz for 1 minute
Environment	Ambient temperature	-10 to 55°C, storage: -25 to 65°C
	Ambient humidity	35 to 85%RH
Accessory		Bracket
Unit weight		Approx. 90g
*Environment resistance is rated at no freezing or condensation.

Test Equipment General Attributes
Country of Origin	Korea
