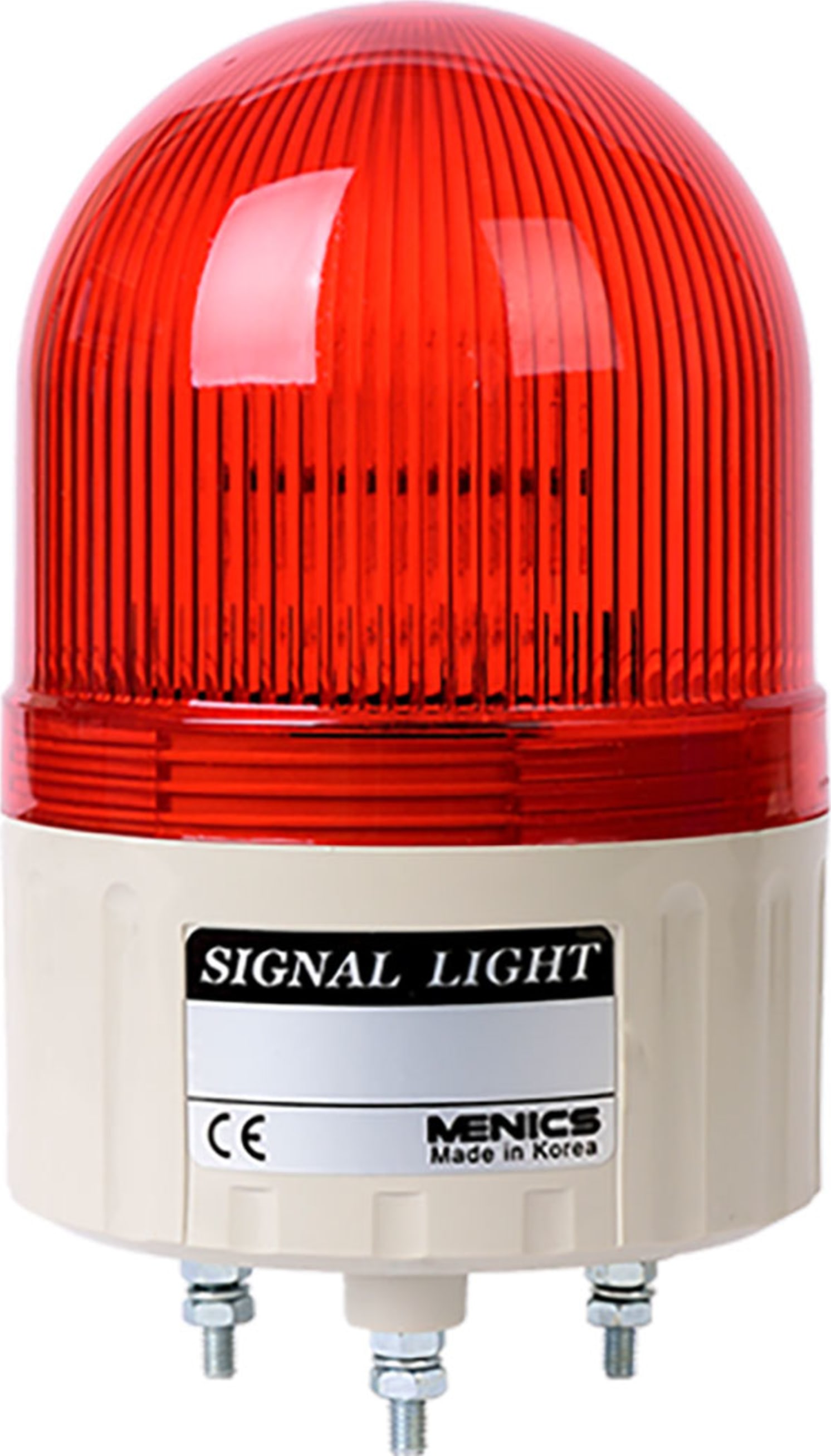

Autonics ASGS-20-R 86mm Bulb Type Warning Signal Light

Name: Autonics ASGS-20-R 86mm Bulb Type Warning Signal Light
Brand: Autonics
SKU: AutonicsASGS-20-R
Price: 68.00 USD
Availability: InStock

0 reviews | Model: Autonics ASGS-20-R

Compare

Light, Strobe, 86mm, Stud Mount, Red Dome Lens, 220 VAC

Function: Flashing(Prism Lens)
Power supply(Xenon lamp type): 220VAC
Current consumption: 0.11A
Bulb specification: 6W
Connection type: Lead wire connection
Ambient temperature: -15~40℃
Approval: CE/ROHS
Protection structure: IP42
Bright light by prism cut design of the lens
Strong flash by rotation reflector

View Product Details

Your Price: $68.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Autonics ASGS-20-R Light, Strobe, 86mm, Stud Mount, Red Dome Lens, 220 VAC	Autonics ASGS-20-Y Light, Strobe, 86mm, Stud Mount, Yellow Dome Lens, 220 VAC	Autonics ASG-20-R Light, Rotating, 86mm, Stud Mount, Red Dome Lens, 220 VAC	Autonics ASG-20-Y Light, Rotating, 86mm, Stud Mount, Yellow Dome Lens, 220 VAC
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

General Specifications
Function	Flashing(Prism Lens)
Power supply(Xenon lamp type)	220VAC
Current consumption	0.11A
Bulb specification	6W
Lens color	Red
Dimension	D86mm
Flashing rate	80±10times/minute
Connection type	Lead wire connection
Cable specification	VSF/0.75mm
Ambient temperature	-15~40℃
Storage ambient temperature	-20~70℃
Ambient humidity	45 to 85%RH
Insulation resistance	100MΩ or more (500VDC megger basis)
Vibration	0.75mm at 10~55Hz
Approval	CE/ROHS
Protection structure	IP42
