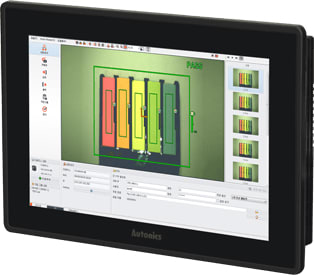

| Model: APC-1011-EN Specifications |
| Language |
English |
| Power supply |
24VDC |
| Allowable voltage range |
90 to 110% of rated voltage |
| Power consumption |
Max. 30W |
| Hard disk |
mSATA 64GB SSD |
| System memory |
DDR3L 4GB |
| Indicator |
Power indicator: green LED |
| Speaker |
Stereo speaker 2W+2W |
| Watch dog timer |
Watch Dog Timer (1 to 255 sec, software setting) |
| Battery life cycle |
5 years at 25℃ |
| Real-time controller |
RTC embedded |
| Insulation resistance |
100MΩ or more (500VDC megger basis) |
| Ground |
3rd grounding (max. 100Ω) |
| Noise immunity |
±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator |
| Dielectric strength |
500VAC 50/60Hz for 1 minute |
| Vibration |
0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each X, Y, Z direction for 1 hour |
| Vibration Malfunction |
0.5mm amplitude at frequency of 10 to 55Hz (for 1 minute) in each X, Y, Z direction for 10 minutes |
| Shock |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Shock Malfunction |
100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
| Environment Ambient temperature |
0 to 50℃, storage: -20 to 60℃ |
| Environment Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Protection structure |
IP65(front panel, IEC standard) |
| Accessories |
Fixing bracket: 8, mold bracket: 1, M3 bolt for mold bracket: 2 |
| Approval |
CE |
| Weight |
Approx. 2kg (approx. 1.6kg) |
