| General Specifications |
| Driver Operation Method |
Bipolar constant current Drive |
| Driver Applied Motor |

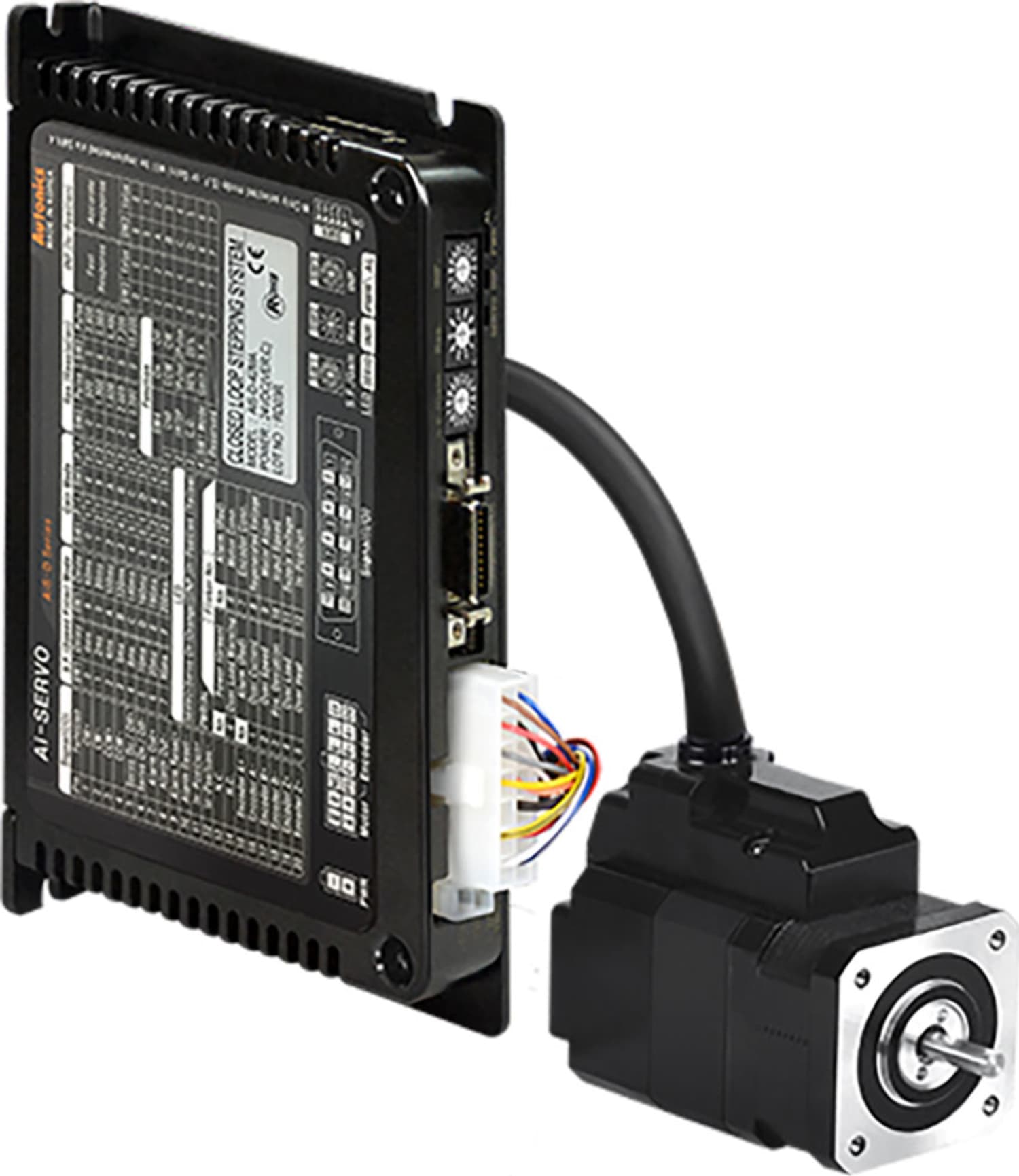

Frame size 60mm 2-phase closed loop stepper motor |
| Driver Resolution |
500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2) |
| Driver Power supply |
24VDC |
| Driver Max. Run Current |
3.5A/Phase |
| Driver Max. Power consumption |
240W |
| Driver Output |
In-Position, Alarm Out, Encoder signal (A, , B, , Z, ) |
| Driver Protection structure |
IP20 |
| Driver Approval |
CE |
| Motor Basic Step Angle [FULL/HALF] |
1.8º/0.9º |
| Motor Max. Holding Torque |
29.57kgf.cm |
| Motor Rotor Moment Of Inertia |
690g·cm² |
| Motor Winding Resistance |
1.3Ω |
| Motor Rated Current |
3.5A/Phase |
| Motor Motor length |
119.8mm |
| Motor Shaft Type |
Single shaft |
| Motor Operation Method |
Bipolar |
| Motor Resolution |
10,000PPR(2,500PPR×4-multiply) |
| Motor Output phase |
A, , B, , Z, |
| Motor Max. response frequency |
300kHz |
| Motor Protection structure |
IP30 |
| Motor phase |
2-Phase |
| Driver Environment Ambient temperature |
0 to 50℃, storage: -10 to 60℃ |
| Driver Environment Ambient humidity |
35 to 85%RH, storage: 10 to 90%RH |
| Driver Weight |
Approx. 400g(approx. 290g) |
| Motor Number Of Axes |
1-axis |
| Motor Environment Ambient temperature |
0 to 50℃, storage: -20 to 70℃ |
| Motor Environment Ambient humidity |
20 to 85%RH, storage: 15 to 90%RH |
| Motor Weight |
Approx. 1.58kg(approx. 1.44kg) |
