AiC-CL Series



• Driver Applied Motor: Frame size 42mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-42MA-B)
• Driver Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2)
• Driver Power supply: 24 VDC
• Driver Max. Run Current: 1.7A/Phase
• Driver Max. Power consumption: 60W

Closed-Loop System

CC-Link Communication

No Hunting

Quick Response

Built-in Brake

Control up to 42 Axes

Closed Loop Stepper Motor Control

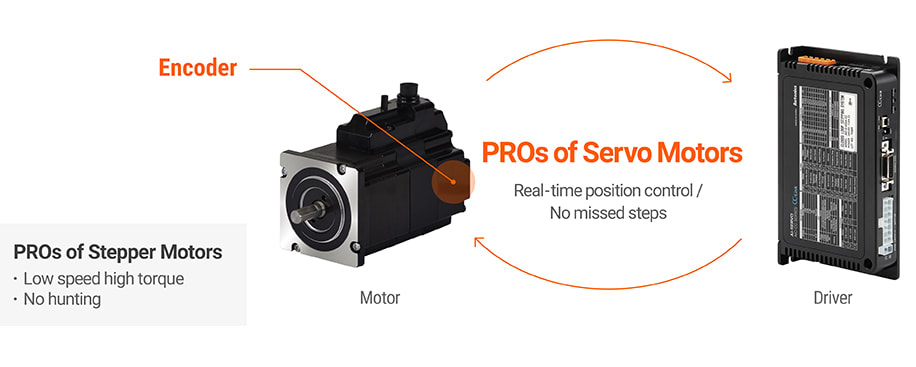

The stepper motor system offers accurate and precise position control through feedback from the integrated encoder without the hassle of tuning and vibration of conventional servo motors.

CC-Link Communication Control

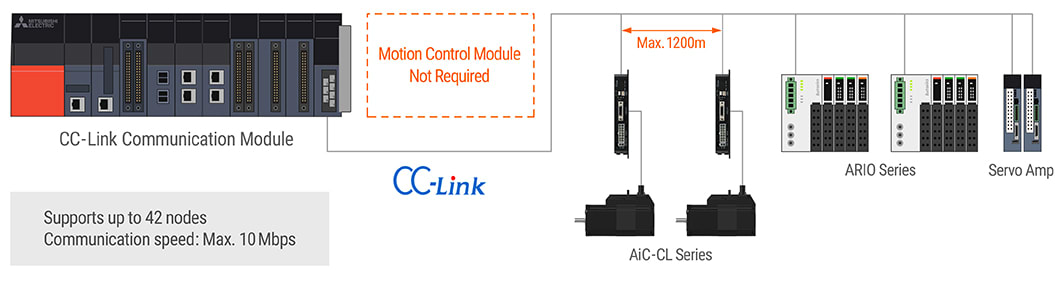

The AiC-CL series Ai-SERVO motors feature support for CC-Link communication. The motors can be used with Mitsubishi PLCs through CC-Link communication, offering easy connection, installation, and control without additional modules or controllers. Up to 42 axes can be controlled simultaneously or independently.

Motion Control Software Provided (atMotion)

The intuitive user interface of the atMotion motion control software allows users to easily set parameters and monitor data.

Built-in Brake Type Motors Available

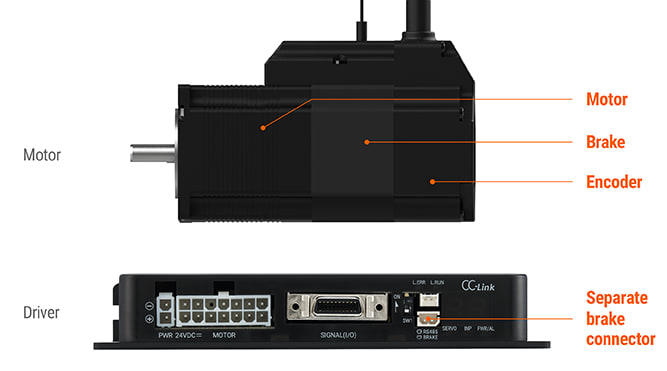

The built-in brake type motor and drivers allow safer control of vertical loads. The brakes are located towards the rear and the separate brake connector allows easy connection.

Sorters

Closed loop stepper motor system used in automatic sorters to sort products to proper destinations.

Conveyor Belts

Closed loop stepper motor system used to control distance on conveyor belts in SMT machinery.

PCB Loader

Closed loop stepper motor system used to control move PCB boards into conveyors in PCB loaders.

Camera Module Inspection Machine

Closed loop stepper motor system used to control movement and location of tables in camera module inspection machines.

Wafer Cassette Transfer Machine

Closed loop stepper motor system used to control movement and location of wafer cassettes in semiconductor transfer machines.
