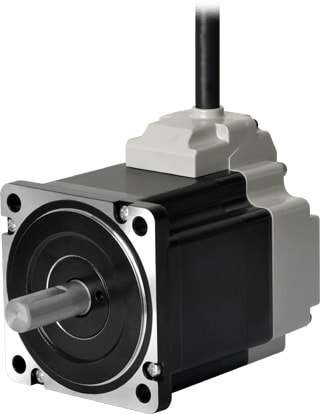

Autonics AIA-M-86LA - AC Power 2-Phase Closed Loop Stepper Motors

Name: Autonics AIA-M-86LA - AC Power 2-Phase Closed Loop Stepper Motors
Brand: Autonics
SKU: AutonicsAIA-M-86LA
Price: 652.00 USD
Availability: InStock

0 reviews | Model: Autonics AIA-M-86LA

Compare

2-Phase Closed-Loop Stepper Motor, 86mm Square, Single Shaft, 2.0A/Phase, 40.8Kgf.cm/4.0N.m

Motor phase: 2-Phase
Motor Applied Driver: Frame size 86mm AC type 2-phase
Max. holding torque: 40.8 kgf.cm
Winding Resistance: 1.9 Ω
Rotor Moment Of Inertia: 1,800 g·cm²
IP30 Protection structure
CE Approval

View Product Details

Your Price: $652.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics AIA-M-86LA 2-Phase Closed-Loop Stepper Motor, 86mm Square, Single Shaft, 2.0A/Pha ...	Autonics AIA-M-60LA 2-Phase Closed-Loop Stepper Motor, 60mm Square, Single Shaft, 2.0A/Pha ...	Autonics AIA-M-60MA 2-Phase Closed-Loop Stepper Motor, 60mm Square, Single Shaft, 2.0A/Pha ...	Autonics AIA-M-86MA 2-Phase Closed-Loop Stepper Motor, 86mm Square, Single Shaft, 2.0A/Pha ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics AIA-M-86LA - AC Power 2-Phase Closed Loop Stepper Motors

AiA-M Series

Motor phase: 2-Phase
Motor Applied Driver: Frame size 86mm AC type 2-phase
Max. holding torque: 40.8 kgf.cm
Winding Resistance: 1.9 Ω
Rotor Moment Of Inertia: 1,800 g·cm²

The AiA-M series AC powered 2-phase closed loop stepper motors maintain higher torque during high speed drive compared to DC powered motors The AiA-M series is available in 60 mm and 86 mm frame sizes.

Ordering Information

Product Dimensions

Basic Step Angle [FULL/HALF]	1.8º/0.9º
Max. holding torque	40.8 kgf.cm
Motor Applied Driver	Frame size 86mm AC type 2-phase closed-loop stepper motor driver
Rotor Moment Of Inertia	1,800 g·cm²
Winding Resistance	1.9 Ω
Rated current	2A/Phase
Motor length	109.4 mm
Shaft type	Single shaft
Operation method	Bipolar constant current Drive
Resolution	10,000 PPR(2,500 PPR×4-multiply)
Max. response frequency	300 kHz
Protection structure	IP30
Approval	CE
Motor phase	2-Phase
Environment Ambient temperature	0 to 50℃, storage: -20 to 70℃
Environment Ambient humidity	20 to 85%RH, storage: 15 to 90%RH
Weight	Approx. 2.60 kg(approx. 2.30 kg)
