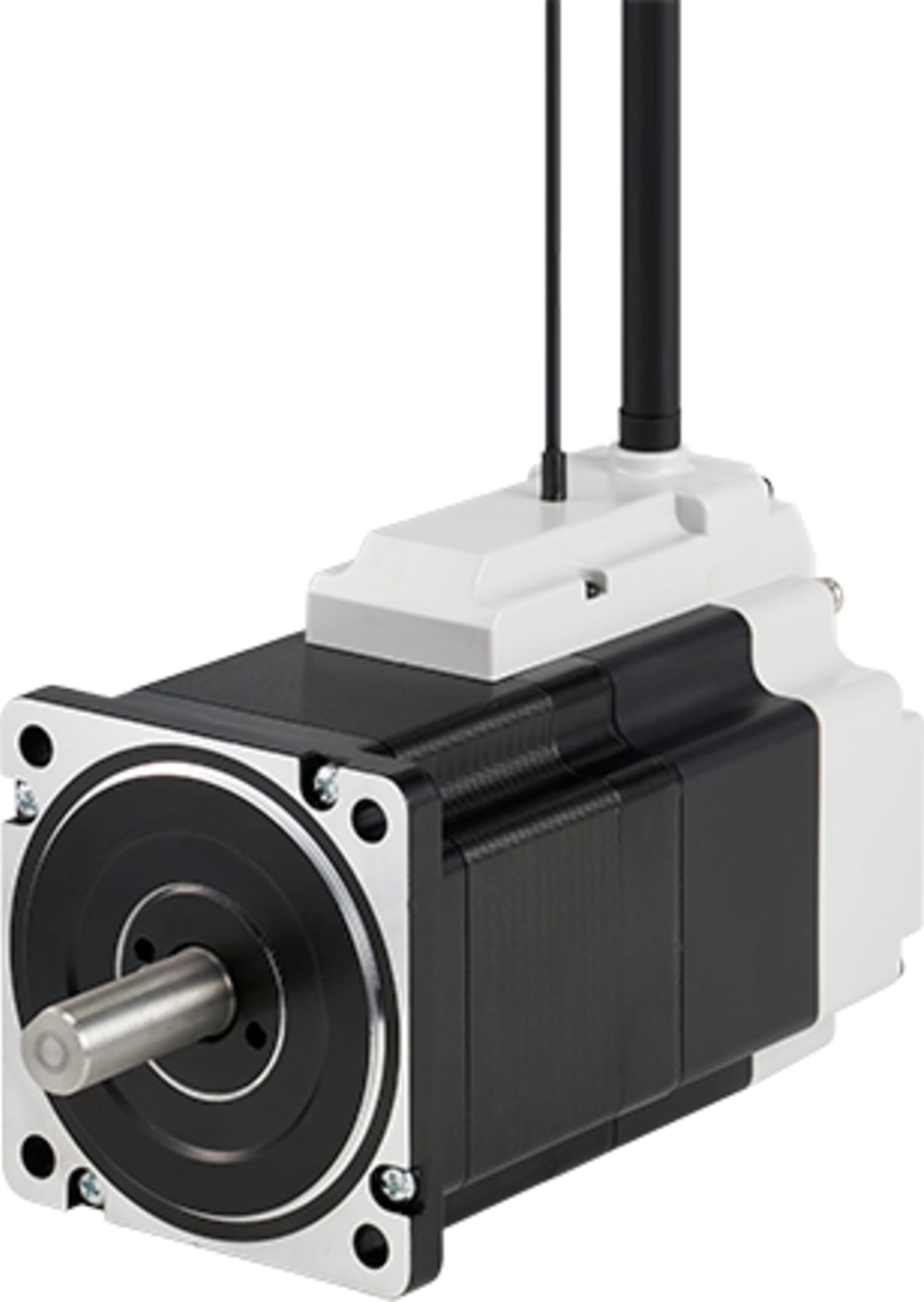

Autonics AIA-M-86LA-B - AC Power 2-Phase Closed Loop Stepper Motors with Built-in Brakes

Name: Autonics AIA-M-86LA-B - AC Power 2-Phase Closed Loop Stepper Motors with Built-in Brakes
Brand: Autonics
SKU: AutonicsAIA-M-86LA-B
Price: 917.00 USD
Availability: InStock

0 reviews | Model: Autonics AIA-M-86LA-B

Compare

2-Phase Closed-Loop Stepper Motor, 86mm Square, Single Shaft, 2.0A/Phase, 40.8Kgf.cm/4.0N.m, Built-in brake

Max. holding torque: 40.8kgf.cm
Rotor Moment Of Inertia: 1,800g·cm²
Rated current: 2 A/Phase
Winding Resistance: 1.9 Ω
Inductance: 16.2 mH/Phase
Weight: Approx. 2.60kg(approx. 2.30kg)
Frame sizes: 60 mm, 86 mm
Compatible motor driver: AiSA-D, AiCA-D Series
Brakes are released when power is applied to the brake wire

View Product Details

Your Price: $917.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics AIA-M-86LA-B 2-Phase Closed-Loop Stepper Motor, 86mm Square, Single Shaft, 2.0A/P ...	Autonics AIA-M-60LA-B 2-Phase Closed-Loop Stepper Motor, 60mm Square, Single Shaft, 2.0A/P ...	Autonics AIA-M-60MA-B 2-Phase Closed-Loop Stepper Motor, 60mm Square, Single Shaft, 2.0A/P ...	Autonics AIA-M-86MA-B 2-Phase Closed-Loop Stepper Motor, 86mm Square, Single Shaft, 2.0A/P ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics AIA-M-86LA-B - AC Power 2-Phase Closed Loop Stepper Motors with Built-in Brakes

Max. holding torque: 40.8kgf.cm
Rotor Moment Of Inertia: 1,800g·cm²
Rated current: 2 A/Phase
Winding Resistance: 1.9 Ω
Inductance: 16.2 mH/Phase

The AiA-M-B series 2-phase closed loop stepper motors with built-in brakes are ideal for controlling vertical loads. The AiA-M-B series motors are available in 60 mm, and 86 mm frame sizes.

Ordering Information

Product Dimensions

Max. holding torque	40.8 kgf.cm
Rotor Moment Of Inertia	1,800 g·cm²
Rated current	2 A/Phase
Winding Resistance	1.9 Ω
Inductance	16.2 mH/Phase
Weight	Approx. 2.60 kg(approx. 2.30 kg)
Basic Step Angle [FULL/HALF]	1.8º/0.9º
Motor phase	2-Phase
Operation method	Bipolar constant current Drive
Resolution	10,000 PPR(2,500 PPR×4-multiply)
Max. response frequency	300 kHz
Protection structure	IP30
Approval	CE
Environment Ambient temperature	0 to 40℃, storage: -20 to 70℃
Environment Ambient humidity	20 to 85%RH, storage: 15 to 90%RH
