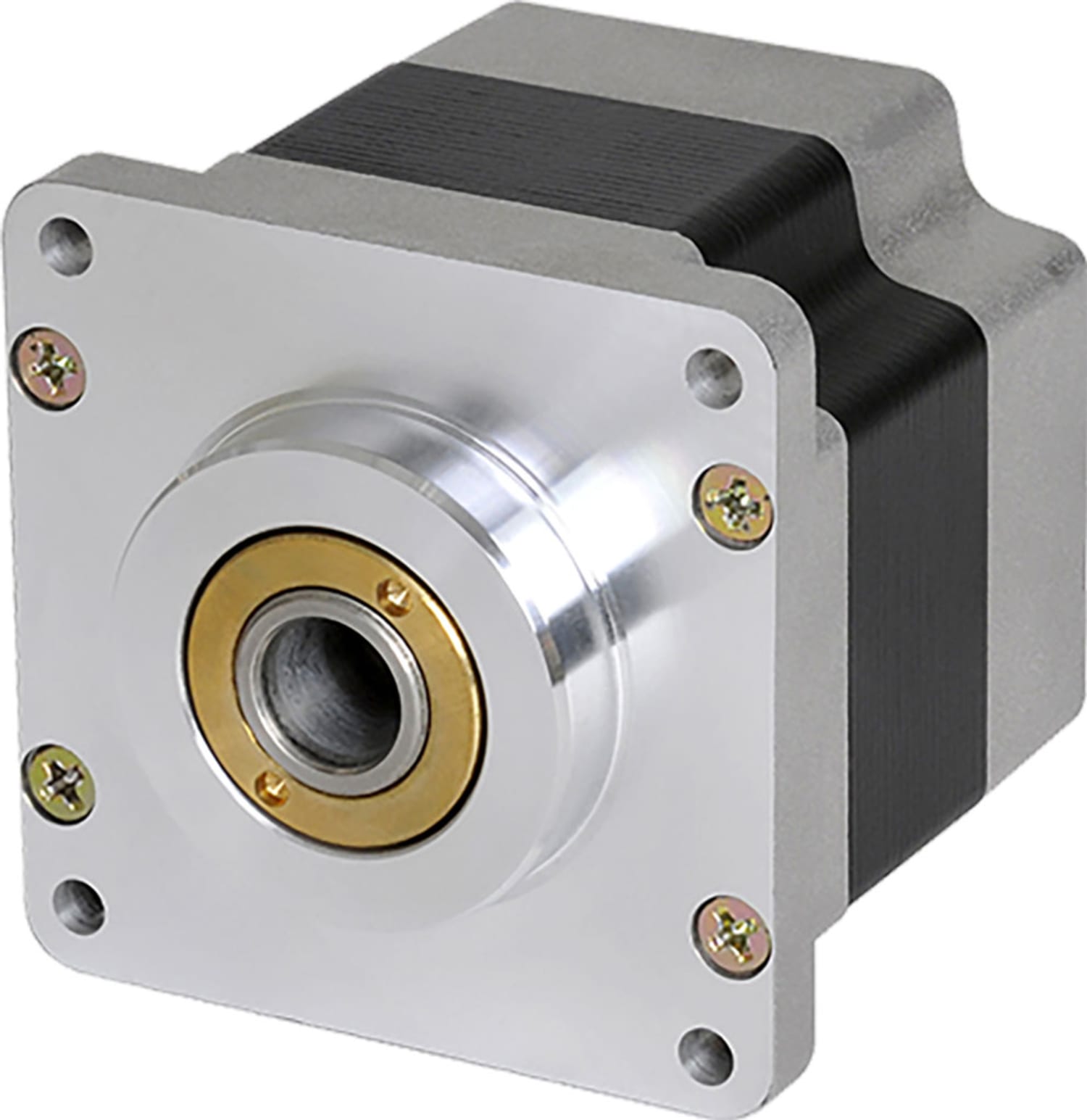

Autonics AH16K-M569W 5-Phase Stepper Motors (Hollow Shaft Type)

0 reviews | Model: Autonics AH16K-M569W

5 Phase Stepper Motor, 60mm Square, Hollow Dual Shaft Type, 1.4A/Phase, 16.6 kgf-cm Torque

  • Basic Step Angle [FULL/HALF]: 0.72º/0.36º
  • Max. holding torque: 16.6kgf.cm
  • Rotor Moment Of Inertia: 560g·cm²
  • Winding Resistance: 1.8Ω
  • Rated current: 1.4A/Phase
  • Wire connection: Pentagon
  • Protection structure: IP30
  • Approval: CE
  • Compact and lightweight design with high accuracy, speed, and torque
  • Connect ball-screws or TM-screws directly without couplings
  • No resonance (vibration, noise) caused by couplings
  • Space-saving design ideal for building compact-sized systems
  • Low, economical prices for improved cost efficiency
  • Frame sizes: 42mm, 60mm, 85mm
View Product Details

Your Price: $397.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • View Payment Options

Have a question? Ask an expert.

Live Chat 877.571.7901 Email

Items in This Series

Autonics AH16K-M569WAutonics AH3K-S545Autonics AH4K-S564WAutonics AH1K-S543Autonics AH21K-G596WAutonics AH21K-M596WAutonics AH41K-G599Autonics AH41K-G599WAutonics AH41K-M599Autonics AH41K-M599WAutonics AH4K-M564Autonics AH63K-G5913WAutonics AH63K-M5913W
ProductAutonics AH16K-M569W 5 Phase Stepper Motor, 60mm Square, Hollow Dual Shaft Type, 1.4A/Phas ...Autonics AH3K-S545 5 Phase Stepper Motor, 42mm Square, Hollow Shaft Type, 0.75A/Phase, 2.4 ...Autonics AH4K-S564W 5 Phase Stepper Motor, 60mm Square, Hollow Dual Shaft Type, 0.75A/Phas ...Autonics AH1K-S543 5 Phase Stepper Motor, 42mm Square, Hollow Shaft Type, 0.75A/Phase, 1.3 ...Autonics AH21K-G596W 5 Phase Stepper Motor, 85mm Square, Hollow Dual Shaft Type, 2.8 amps, ...Autonics AH21K-M596W 5 Phase Stepper Motor, 85mm Square, Hollow Dual Shaft Type, 1.4 amps, ...Autonics AH41K-G599 5 Phase Stepper Motor, 85mm Square, Hollow Shaft Type, 2.8A/Phase, 41 ...Autonics AH41K-G599W 5 Phase Stepper Motor, 85mm Square, Hollow Dual Shaft Type, 2.8 amps, ...Autonics AH41K-M599 5 Phase Stepper Motor, 85mm Square, Hollow Shaft Type, 1.4A/Phase, 41 ...Autonics AH41K-M599W 5 Phase Stepper Motor, 85mm Square, Hollow Dual Shaft Type, 1.4 amps, ...Autonics AH4K-M564 5 Phase Stepper Motor, 60mm Square, Hollow Shaft Type, 1.4A/Phase 4.2 k ...Autonics AH63K-G5913W 5 Phase Stepper Motor, 85mm Square, Hollow Dual Shaft Type, 2.8 amps ...Autonics AH63K-M5913W 5-Phase Stepper Motor, 85mm Square, Hollow Dual Shaft Type, 1.4 amps ...
