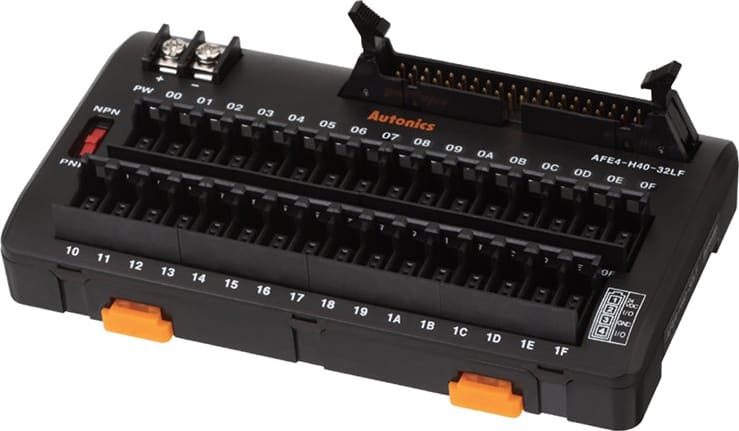

Autonics AFE4-H40-32LF Sensor Connector Terminal Block, 40 Pin, 32 Sensors

Name: Autonics AFE4-H40-32LF Sensor Connector Terminal Block, 40 Pin, 32 Sensors
Brand: Autonics
SKU: AutonicsAFE4-H40-32LF
Price: 119.00 USD
Availability: InStock

0 reviews | Model: Autonics AFE4-H40-32LF

Compare

Sensor Connector Terminal Block, 40Pin, 32Sensors, Selectable NPN/PNP, 12-24VDC, Terminal Pitch 7mm, Din Rail

40Pin, 32Sensors, Selectable NPN/PNP, 12-24VDC, Terminal Pitch 7mm
Quicker and easier wiring with sensor connectors [wire mount plug (CNE-P,sold separately)]
Wire stripping and other tools not required
Compact, space-saving design
Easily check operation status and cable connection with LED light
2 mounting methods (DIN rail, screw mount)

View Product Details

Your Price: $119.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics AFE4-H40-32LF Sensor Connector Terminal Block, 40Pin, 32Sensors, Selectable NPN/P ...	Autonics AFE4-H20-16LF Sensor Connector Terminal Block, 20Pin, 16Sensors, Selectable NPN/P ...
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Autonics AFE Series Sensor Connector Terminal Block

40Pin, 32Sensors, Selectable NPN/PNP, 12-24VDC, Terminal Pitch 7mm
Easily check operation status and cable connection with LED light
Wire stripping and other tools not required
Compact, space-saving design

A Quicker and easier wiring with sensor connectors and Easily check operation status and cable connection with LED light.

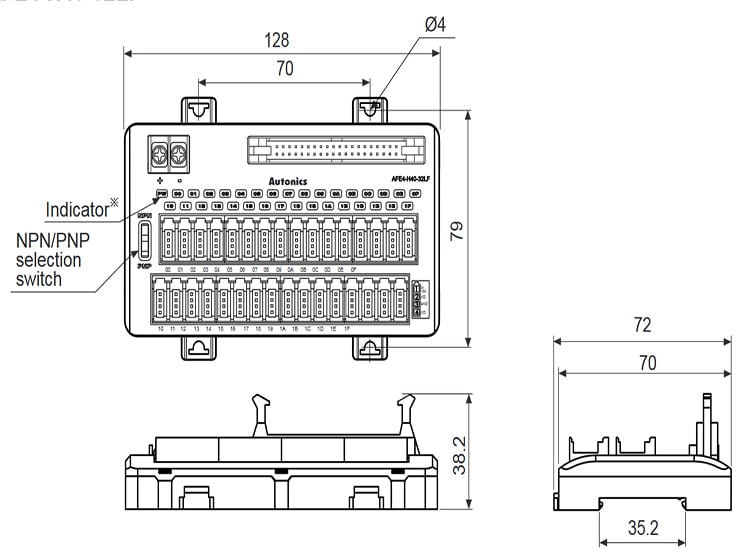

Dimension

General Specifications
Model		AFE4-H20-16LF AFE4-H40-32LF
Power supply		12-24VDC
Allowable voltage range		90 to 110% of rated voltage
Rated current		Max. 1A*¹
No. of connector pins		20-pin 40-pin
Insulation resistance		Min. 1,000 ㏁ (at 500VDC megger)
Dielectric strength		600VAC 50/60Hz for 1 min.
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55 Hz (for 1 min.) in each X, Y, Z direction for 1 hour
	Malfunction	0.75mm amplitude at frequency of 10 to 55 Hz (for 1 min.) in each X, Y, Z direction for 10 min.
Shock	Mechanical	150 m/s 2 (15G) in each X, Y, Z direction for 3 times
	Malfunction	-15 to 55 °C , storage: -25 to 65 °C
Environment	Ambient temperature	35 to 85%RH, storage: 35 to 85%R
	Ambient humidity	100 m/s 2 (10G) in each X, Y, Z direction for 3 times
Material		CASE, BASE: PC
Tightening torque		7.14 to 8.16 kgf·cm (0.7 to 0.8 N·m)
Weight*²		Approx. 121g (approx. 69g)
1: The rated current includes LED current of terminal block. 2: The weight includes packaging. The weight in parentheses is for unit only. *Environment resistance is rated at no freezing or condensation.
