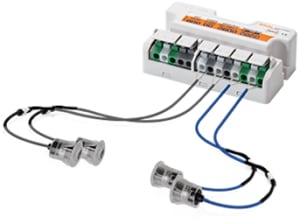

| Model: ADS-SE2 Specifications |
| Sensing type |
Through-beam type |
| Sensing distance |
0 to 10m |
| Light source |
Infrared LED(850nm modulated) |
| Power supply |
12-24VAC~ ±10% 50/60Hz, 12-24VDC |
| Current consumption and Power consumption |
Current Consumption: Max. 2VA, Power Consumption: Max. 50mA |
| Control output |
Relay(SPST(1a)) |
| Sensing Cannel |
2-channel |
| Sensitivity adjustment |
Set by button |
| Sensor cable length |
5m |
| Environment_Ambient illumination |
Sunlight: Max. 100,000lx(receiver illumination) |
| Environment_Ambient temperature |
-20 to 55°C, storage: -25 to 60°C |
| Protection structure |
IP30 |
| Approval |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Response time |
Approx. 50ms(from light OFF) |
| Output holding time |
Approx. 500ms(from light ON) |
| Available sensor set |
2-channel |
| Sensor cable |
Ø2.4mm, 1-wire, 5m(AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm) |
| Material |
Sensor - Holder: Acrylonitrile butadiene styrene, Lens: Polymethyl methacrylate, Lens guide: Polycarbonate, Nut: Polycarbonate |
| Controller - Housing |
Acrylonitrile butadiene styrene, Cover: Acrylonitrile butadiene styrene, Bolt: Steel chromium molybden |
| Accessories |
Sensor 1set(ADS-SHP), Fixing bolt(M4×20) for controller: 2 |
| Weight |
Approx. 450g(approx. 300g) |
