| General Specifications |
| Model |

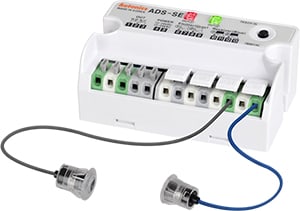

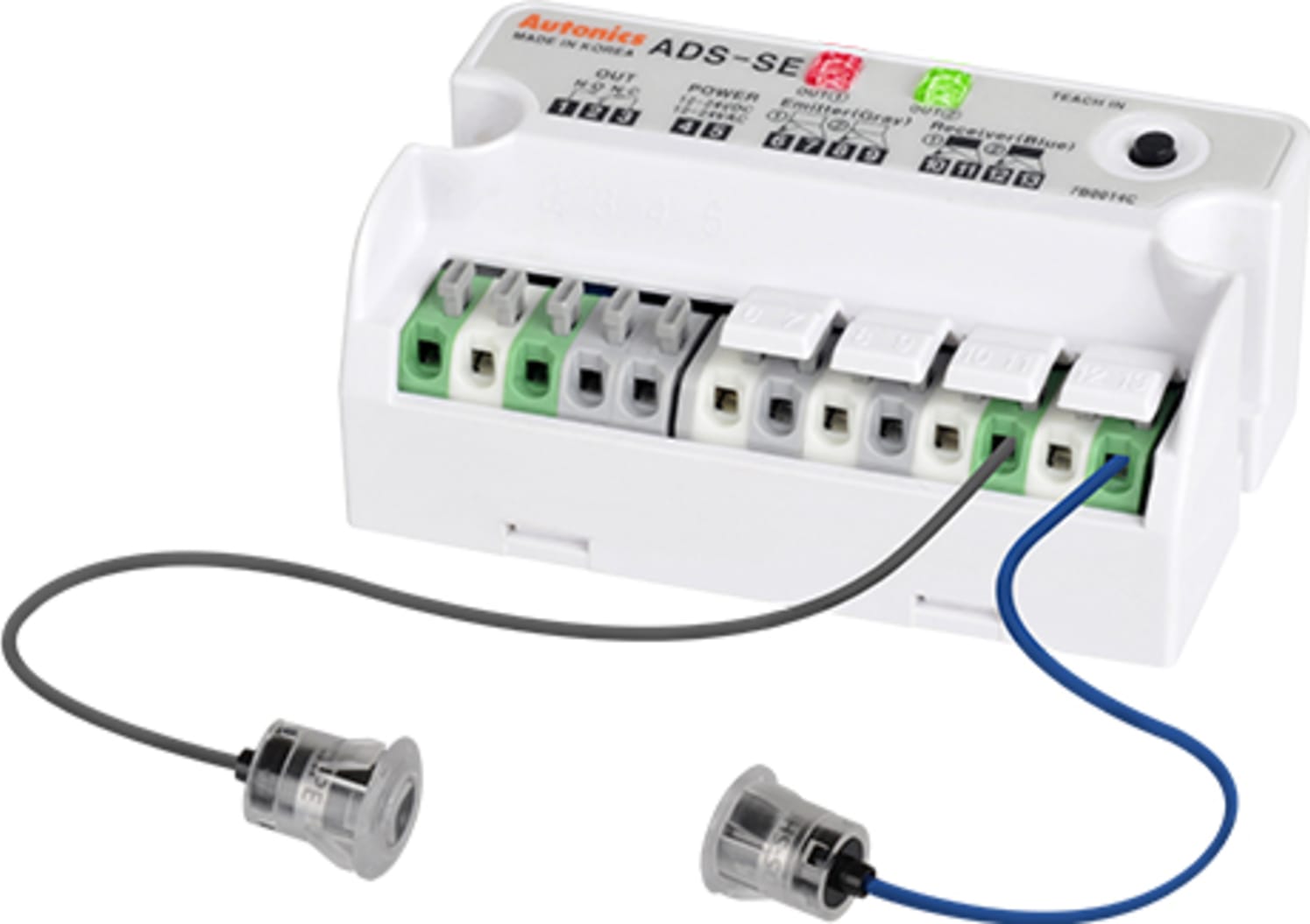

ADS-SE |
| Sensing type |
Through-beam type |
| Sensing distance |
0 to 10m |
| Power supply |
12-24VAC ±10% 50/60Hz / 12-24VDC ±10% (ripple P-P: max. 10%) |
| Power/Current consumption |
AC: Max. 2VA / DC: Max. 50mA |
| Contact output |
Contact composition |
1c |
| Contact capacity※1 |
50VDC 0.3A (resistive load) |
| Relay life cycle |
Mechanical- Min. 5,000,000 operations, Electrical- Min. 100,000 operations |
| Response time |
Approx. 50ms (from light OFF) |
| Output holding time |
Approx. 500ms (from light ON) |
| Available sensor set |
2set |
| Indicator |
Operation indicator: Red LED, Green LED(Refer to C-14 to 15 for the display status in operation) |
| Light source |
Infrared LED (850nm modulated) |
| Environment |
Ambient illumination |
Sunlight: Max. 100,000㏓ (receiver illumination) |
| Ambient temperature |
-20 to 55℃, storage: -25 to 60℃ |
| Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
| Protection structure |
IP30 (IEC standard) |
| Sensor cable length |
10m |
| Sensor cable |
Ø2.4mm, 1-wire, 5m (AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm) |
| Material |
Sensor - Holder: Acrylonitrile butadiene styrene, Lens: Polymethyl methacrylate, Lens guide: Polycarbonate, Nut: Cu-Zn
Controller - Housing: Acrylonitrile butadiene styrene, Cover: Acrylonitrile butadiene styrene, LED CAP: Polymethyl methacrylate, Bolt: Steel chromium molybdenum (brass, Ni-plate) |
| Accessory |
Sensor: 1 set (ADS-SH), Fixing bolt for controller: 2 pieces |
| Unit weight |
Approx. 300g |
※1: Do not use Load which is beyond the rated capacity of contact point of Relay. It can cause bad insulation, contact fusion, bad contact, relay breakdown, and fire etc.
※Please purchase 1 set of sensor separately when mounting 2 sets of sensor.
※The mounting bracket of sensor (ADS-SB12, ADS-SB10) is sold separately.
※It is enable to purchase a controller separately.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment |
