Autonics AD105-IN Compact Thumbwheel Switches

Name: Autonics AD105-IN Compact Thumbwheel Switches
Brand: Autonics
SKU: AutonicsAD105-IN
Price: 4.30 USD
Availability: InStock

0 reviews | Model: Autonics AD105-IN

Compare

Digital switch, Ivory Color,6mm x 18mm

Ivory Color,6mm x 18mm
High durability and long life cycle (30,000 operations)
Compact size : mounting height 16.5 mm
Easy one-touch mount installation

View Product Details

List Price: $4.30

In Stock:

View Payment Options

Recommended for you

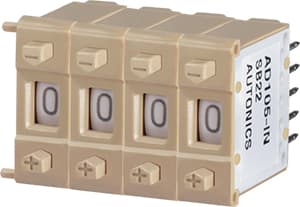

Autonics AD105 Series Compact Thumbwheel Switches

Ivory Color,6mm x 18mm
Image for reference only, may not be the exact model
Compact size
One-touch mount installation
High durability
Long life cycle
Thumbwheel Switches

The AD105 series compact thumbwheel switches from Autonics can be easily installed or connected to various control devices. The units boast high durability and have a mechanical life cycle of over 30,000 operations.

General Specifications
Operating force	Max. 500gf(4.9N)
Switching load capacity	5-28VDC , 1mA to 0.1A
Continuous current	Max. 100mA
Contact resistance	Max. 200mΩ
Insulation resistance_Between power off terminals	Min. 100MΩ(250VDC for 1 min.)
Insulation resistance_Between each terminal and power off section	Min. 100MΩ(500VDC for 1 min.)
Dielectric strength_Between power off terminals	250VAC~ 50/60Hz for 1 min.
Dielectric strength_Between each terminal and power off section	500VAC~ 50/60Hz for 1 min.
Vibration	0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each X, Y, Z direction for 1 hour
Shock	500m/s²(approx. 50G) in each X, Y, Z direction for 3 times
Life cycle_Electrical	Min. 20,000 operations
Life cycle_Mechanical	Min. 30,000
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 80℃
Environment_Ambient humidity	45 to 85%RH
Weight	1.3g
Order as option for other display range. Environment resistance is rated at no freezing or condensation.
