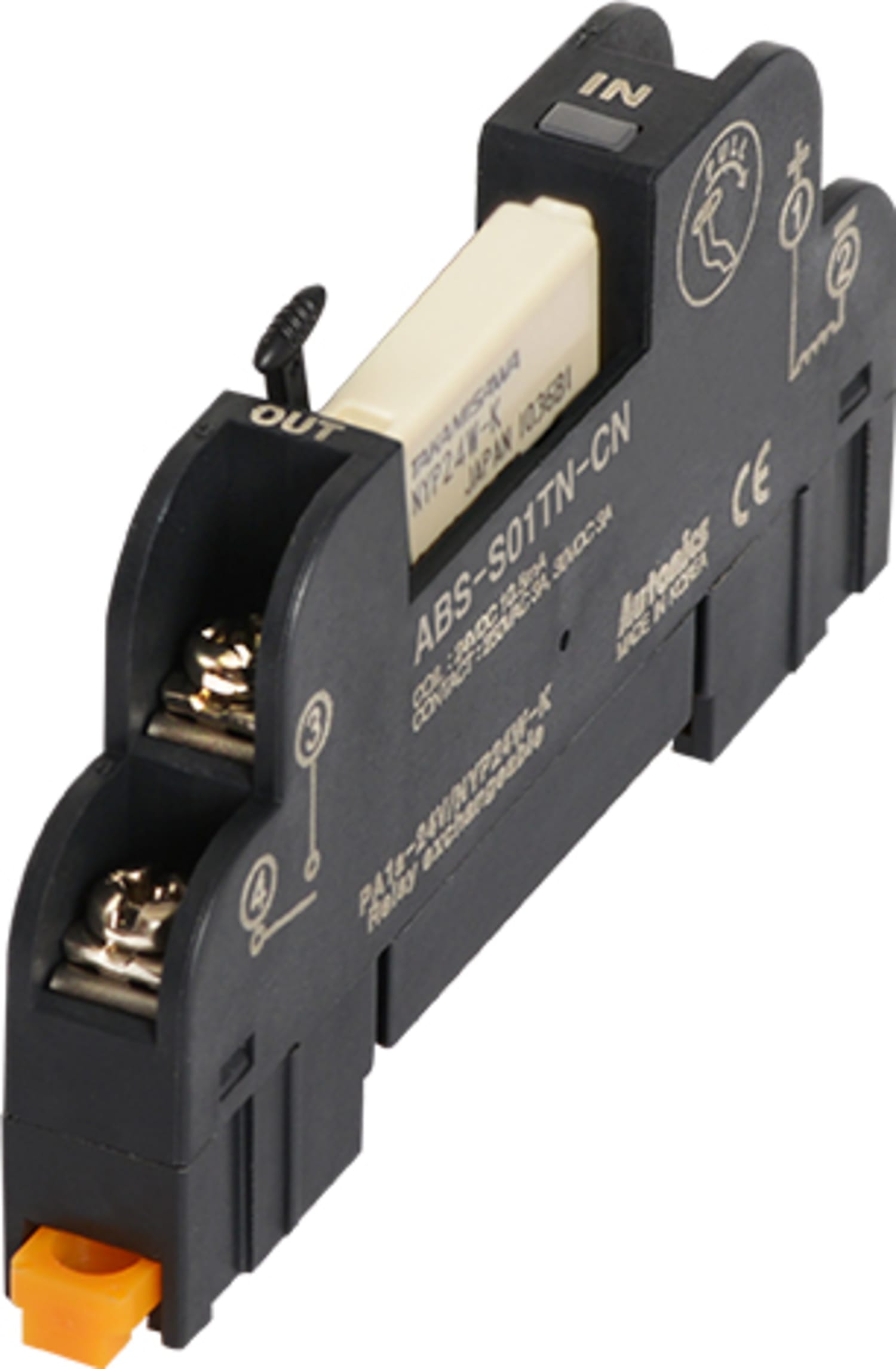

Autonics ABS-S01TN-CN Relay Terminal Block, Screw type, 1Relay, Takamisawa(Fujitsu)NYP

Name: Autonics ABS-S01TN-CN Relay Terminal Block, Screw type, 1Relay, Takamisawa(Fujitsu)NYP
Brand: Autonics
SKU: AutonicsABS-S01TN-CN
Price: 19.00 USD
Availability: InStock

0 reviews | Model: Autonics ABS-S01TN-CN

Compare

Relay Terminal Block, Screw type, 1Relay, Takamisawa(Fujitsu)NYP, NON-COM, 250VAC 3A,30VDC 3A

1Relay, Takamisawa(Fujitsu)NYP, NON-COM, 250VAC 3A,30VDC 3A
Male & female interface allows easier expansion and compact mounting (1-point relay terminal block)
Easy to check operation status and cable break from LED display lamp
Can be used with 2 types of relays (TAKAMISAWA(Fujitsu) NYP / MATSUSHITA(Panasonic) PA)
Suitable for operating various loads using PLC signals
- Two-way ejector for relay replacement provided
- Easy relay replacement with relay removal lever (1-point relay terminal block)
2 mounting options (DIN rail or screw fix)
Autonics CJ Series I/O cables are recommended for use. (Connector transmission cable)

View Product Details

Your Price: $19.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics ABS-S01TN-CN Relay Terminal Block, Screw type, 1Relay, Takamisawa(Fujitsu)NYP, NO ...	Autonics ABS-H16PA-NN Relay Terminal Block, Hirose connector, 16Relays, Matsushita(Panason ...	Autonics ABS-H16PA-PN Relay Terminal Block, Hirose connector, 16Relays, Matsushita(Panason ...	Autonics ABS-H32PA-PN Relay Terminal Block, Hirose connector, 32Relays, Matsushita(Panason ...	Autonics ABS-H32PA-NN Relay Terminal Block, Hirose connector, 32Relays, Matsushita(Panason ...	Autonics ABS-S01PA-CN Relay Terminal Block, Screw type, 1Relay, Matsushita(Panasonic)PQ, N ...	Autonics ABS-H32TN-NN Relay Terminal Block, Hirose connector, 32Relays,Takamisawa(Fujitsu) ...	Autonics ABS-H32TN-PN Relay Terminal Block, Hirose connector, 32Relays, Takamisawa(Fujitsu ...	Autonics ABS-H16TN-NN Relay Terminal Block, Hirose connector, 16Relays,Takamisawa(Fujitsu) ...	Autonics ABS-H16TN-PN Relay Terminal Block, Hirose connector, 16Relays, Takamisawa(Fujitsu ...	Autonics ABS-S01R6-CN Relay Terminal Block, Screw type, 1Relay, Omron G6B, NON-COM, 250VAC ...	Autonics ABS-S04PA-CN Relay Terminal Block, Screw type, 4Relays, Matsushita(Panasonic)PA, ...	Autonics ABS-S04TN-CN Relay Terminal Block, Screw type, 4Relays, Takamisawa(Fujitsu)NYP, N ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics ABS Series Relay Terminal Block

Relay Terminal Block, Screw type, 1Relay, Takamisawa(Fujitsu)NYP, NON-COM, 250VAC 3A,30VDC 3A
Suitable for operating various loads using PLC signals
Easy to check operation status and cable break from LED display lamp
Male & female interface allows easier expansion and compact mounting (1-point relay terminal block)

Relay terminal block ABS Series provides optimal solution to drive various loads using PLC output signals. This series supports 2 types of relays [TAKAMISAWA (Fujitsu) NYP / MATSUSHITA (Panasonic) PA], and is equipped with LED lamp used for checking operation status and cable break status. Also, user convenience has been enhanced by allowing mounting on DIN rail or using screws.

ABS-H16PA- _N / ABS-H16TN-_N
ABS-H32PA-_N / ABS-H32TN-_N

Connection

ABS-H16_-PN

Ordering Information

General Specifications
Rated load current 2/3A
Model		ABS-S01PA-CN ABS-S01TN-CN	ABS-S04PA-CN ABS-S04TN-CN	ABS-H16PA-NN(PN) ABS-H16TN-NN(PN)	ABS-H32PA-NN(PN) ABS-H32TN-NN(PN)
Power supply		24VDC ±10%
Rated load voltage & current^*1		250VAC 3A, 30VDC 3A			250VAC 2A, 30VDC 2A (2A/1-point, 8A/1COM)
Current consumption	PA type	Max. 10.5mA ^*2		Max. 10.5mA^2/Max. 15.5mA^3
	TN type	Max. 8.5mA^*2		Max. 8.5mA^2/Max. 13.5mA^3
Output type		1a contact relay output
Applicable relay		PA: PA1a-24V [MATSUSHITA (Panasonic)], TN: NYP24W-K [TAKAMISAWA (Fujitsu)]
No. of relay points		1-point	4-point	16-point	32-point (8-point/1COM)
No. of connector pins		-		20-pin	40-pin
Indicator		Operation indicator: Blue LED		Power indicator: Red LED, Operation and disconnection indicator: Blue LED
Applicable wire		AWG22-16 (0.30 to 1.25mm^*2)
Insulation resistance		Min. 1,000MΩ (at 500VDC megger)
Dielectric strength	Between coil-contact	2,000VAC 50/60Hz for 1 minute
	Between same contacts	1,000VAC 50/60Hz for 1 minute^*4
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours
	Malfunction	0.75mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 10 minute
Shock	Mechanical	500m/s^*2(approx. 50G) in each X, Y, Z direction for 3 times
	Malfunction	147m/s^*2(approx. 15G) in each X, Y, Z direction for 3 times
Environment	Ambient temperature	-15 to 55?, storage: -25 to 65?
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Material		CASE & BASE: Polyamide 6, TERMINAL PIN: Brass	CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass	CASE: MPPO, BASE: Polyamide 66 (G25%) TERMINAL PIN: Brass
Tightening torque		5.1 to 6.1kgf^.cm (0.5 to 0.6 N^.m)
Accessories^*5		-	Jumper bar: 2 (Model: JB-7.62-04)	Jumper bar: 2 (Model: JB-7.62-08)	-
Weight^*7	PA type	Approx. 314.5g (approx. 21.5g)^*8	Approx. 104g (approx. 68g)	Approx. 307g (approx. 224g)	Approx. 438g (approx. 345g)
	TN type	Approx. 324.5g (approx. 22.2g)^*8	Approx. 107g (approx. 71g)	Approx. 318g (approx. 235g)	Approx. 463g (approx. 370g)

Rated load current 5A, 10A
Model		ABS-S01PQ-CN ABS-S01R6-CN	ABS-S01PH-CN	ABS-S01PH6-CN	ABS-S01PH5-CN	ABS-S01R2-CN	ABS-S01R26-CN	ABS-S01R25-CN
Power supply		24VDC±10%	24VDC	100/110VAC~	200/220VAC~	24VDC	100/110VAC~	200/220VAC~
Rated load voltage & current*1		250VAC~ 5A, 30VDC 5A	250VAC~ 10A, 30VDC 10A*1
Current consumption*2	PQ/R6 type	≤20mA	---
	PH/R2 type	---	≤25mA	≤15mA	≤10mA	≤25mA	≤15mA	≤10mA
Output type		1a contact relay output	1c contact relay output
Applicable relay		PQ: PQ1a-24V [MATSUSHITA (Panasonic)]	AHN12024 [MATSUSHITA (Panasonic)]	AHN111X0 [MATSUSHITA (Panasonic)]	AHN111Y0 [MATSUSHITA (Panasonic)]	G2R-1-S24VDC [OMRON]	G2R-1-S100/ (110) VAC [OMRON]	G2R-1-S200/ (220) VAC [OMRON]
		R6: G6B-1174P-FD-US [OMRON]
No. of relay points		1-point
Applicable wire		AWG 19 to 14 (0.65 to 2.0mm2 )	AWG 17 to 14 (1.0 to 2.0mm2)
Insulation resistance		≥1,000MΩ (at 500VDC megger)
Dielectric strength	Between coil-contact	4,000 VAC 50/60Hz for 1 minute*4	5,000VAC 50/60Hz for 1 minute
	Between same contacts	1,000VAC 50/60Hz for 1 minute*4	1,000VAC 50/60Hz for 1 minute
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55 Hz (for 1 min.) in each X, Y, Z direction for 2 hours	1.5mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours
	Malfunction	0.75mm amplitude at frequency of 10 to 55 Hz (for 1 min.) in each X, Y, Z direction for 10 minute	1.5mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 10 minute
Shock	Mechanical	1,000m/s2 (approx. 100G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s2 (approx. 10G) in each X, Y, Z direction for 3 times
Environment	Ambient temperature	-15 to 55℃, storage: -25 to 65℃
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Material		CASE & BASE: PA6, TERMINAL PIN: Brass	CASE, BASE: PBT, TERMINAL PIN: Brass, Phosphor bronze
Tightening torque		0.7 to 0.8N.m
Approval		CE
Weight*8		PQ: Approx. 430g (approx. 31g), R6: Approx. 416g (approx. 30g	Approx. 720g (approx. 53g)	Approx. 711g (approx. 52g)	Approx. 715g (approx. 52g)	Approx. 719g (approx. 53g)	Approx. 711g (approx. 52g)	Approx. 712g (approx. 52g)
^1: Relay contact capacity for resistive load. ^2: The current consumption including LED current by one relay. ^3: The current consumption including power LED at '1'. ^4: R6 type (OMRON relay) is 3,000VAC. TN type (Fujitsu relay) is 750VAC. ^5: ABS-H32_ _-NN(PN) does not supply jumper bars. ^6: Except 30VDC of rated load voltage for UL Listed . ^7: The weight includes packaging. The weight in parentheses is for unit only. ^8: The weight of 1-point relays is per 10 units with packing and the weight of parenthesis is per 1. Environment resistance is rated at no freezing or condensation.
