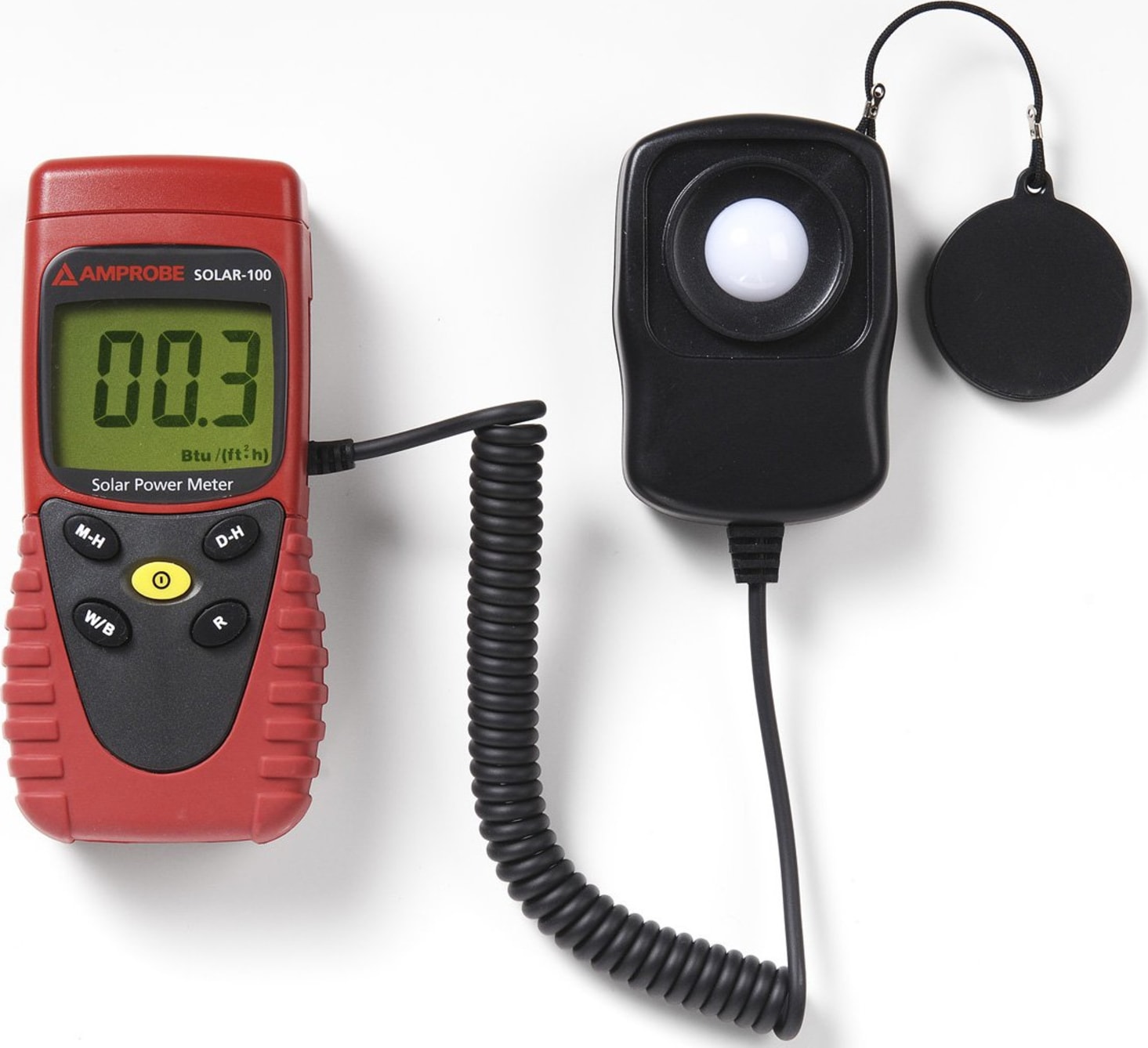

Amprobe SOLAR-100 Solar Power Meter

Name: Amprobe SOLAR-100 Solar Power Meter
Brand: Amprobe
SKU: AmprobeSOLAR-100
Price: 298.68 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | UPC: 095969499217 | Model: Amprobe SOLAR-100

Compare

SOLAR POWER METER

Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh)
Power Mode – measurement of the power per unit area of incident solar radiation
Transmission Mode - calculates the solar power transmission percentage of the material for example how much solar power in % will be transmitted through the window
Convenient to read display with remote sensor technology
Selectable measurement units either W/m2 or BTU / ( ft2 x h)
Data Hold
MAX/MIN functions to indentify locations with maximum or minimum power

View Product Details

List Price: $386.99

Your Price: $298.68

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Amprobe SOLAR-100 SOLAR POWER METER
Rating	(1)
Price
In Stock
I-V Curve Test	No
Auto Scan for Power Pmax	No
Vmax @ Pmax	No
Compare	Add to compare

Recommended for you

Amprobe SOLAR-100 - Solar Power Meter

Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh)
Power Mode – measurement of the power per unit area of incident solar radiation
Convenient to read display with remote sensor technology
Selectable measurement units either W/m2 or BTU / ( ft2 x h)
MAX/MIN functions to indentify locations with maximum or minimum power

Optimize the placement of solar systems and verify window efficiency. The SOLAR-100 measures solar output that is used to calculate overall energy, efficiency and placement of solar systems.

Applications:

Windows performance - calculation and verification of the heating or heat reduction caused by direct sunlight
Solar radiation measurements
Solar power research for location of the solar panels or solar water heater
Physics and optical laboratories
Meteorology
Agriculture

Display	3½ digits, 2000 readings
Range	1999 W/m2, 634BTU / (ft2xh)
Battery	1 X 9V Alkaline Battery (NE DA 1604A, IE C 6LR61) included
Size	132(L) x 60(W) x 38(H) mm (5.2 x 2.4 x 1.5 in)
Weight	About 150g (0.3 lb)
Safety	N10140

Tech Specs

Power Measurement/Solar Analyzer Template
I-V Curve Test	No
Auto Scan for Power Pmax	No
Vmax @ Pmax	No
Imax @ Pmax	No
Power Selection	BTU, W/m2
Vopen	No
Ishort	No
Test Equipment General Attributes
Unique Features	Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh) Power Mode – measurement of the power per unit area of incident solar radiation Transmission Mode - calculates the solar power transmission percentage of the material for example how much solar power in % will be transmitted through the window Convenient to read display with remote sensor technology Selectable measurement units either W/m2 or BTU / ( ft2 x h) Data Hold
Warranty	1 YEARS
Product Weight	0.3 LBS Product Weight 150gr.
Product Height	1.5 IN
Product Length	5.2 IN
Product Width	2.4 IN
Data Logging	No
HTS/Schedule B Number	9030.31.0000
ECCN Number	3A992
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Shipping Height	3.00 IN
Shipping Length	12.00 IN
Shipping Width	6.75 IN
