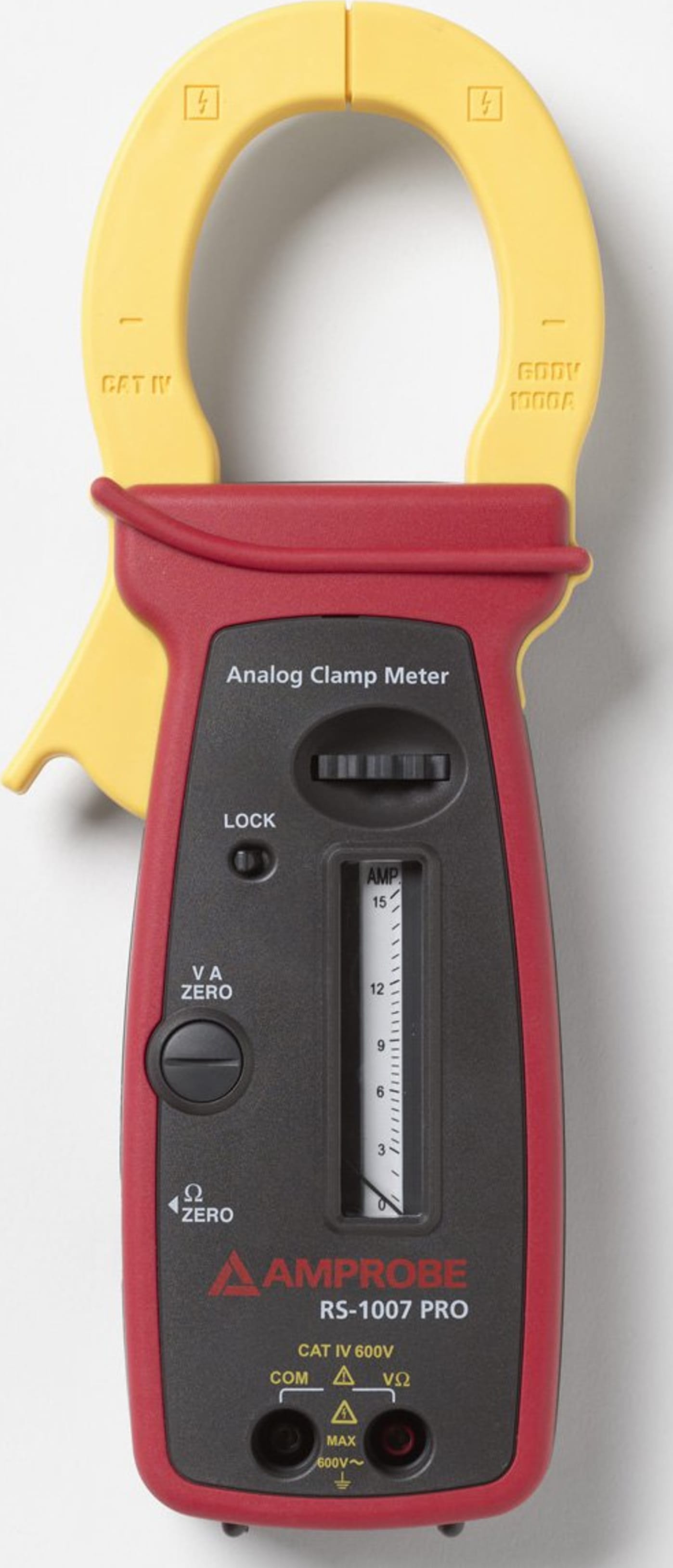

Amprobe RS-1007 PRO CAT IV Analog Clamp

Name: Amprobe RS-1007 PRO CAT IV Analog Clamp
Brand: Amprobe
SKU: AmprobeRS-1007 PRO
Price: 217.51 USD
Availability: InStock

0 reviews | UPC: 095969497725 | Model: Amprobe RS-1007 PRO

Compare

CLAMP METER ANALOG CAT IV 600V-1000A, 2 INCH JAW

Measures AC current up to 1000A
Voltage up to 600 VAC
Resistance and continuity
Pointer lock - data hold
Easy to use rotary scale
Measures volts and amps, no batteries required
Works in temperatures from 5°F to 122°F
Operates on 50 and 60 Hz frequency
CAT IV, 600V safety rated
Includes test leads, battery (installed, for resistance measurement only), users manual, carrying case

View Product Details

List Price: $274.99

Your Price: $217.51

Sign-in for GSA Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Amprobe RS-1007 PRO Accessories

Choose a Category

DMM Probes with Leads
Line Splitters

for the Amprobe RS-1007 PRO

Amprobe TL1500 TEST LEADS, ALLIGATOR CLIPS, HD DMMS, CAT IV 1000V

Catalog: 2696277

(4)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe RS-1007 - PRO CAT IV Analog Clamp

Works in temperatures from 5°F to 122°F
Resistance and continuity
Measures AC current up to 1000A
Measures volts and amps, no batteries required
Operates on 50 and 60 Hz frequency
Easy to use rotary scale

Take this clamp meter to extremes. Most digital clamp meters have LCD screens that tend to freeze below 32 degrees (0 degrees Celcius) but the Amprobe RS-1007 PRO, an analog clamp meter can take extreme heat or cold and keep on measuring amps and volts-without problems or batteries.

Display	Analog scales with clamping needle
Dimension	261 x 102 x 41 mm (10.3 x 4.0 x 1.6 in.)
Weight	0.474 kg (1.05 lb.)
Jaw opening / Conductor diameter	47mm (1.88") max
Volt/ amp	powered by circuit under test
Ohm	1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03)
Low Battery	Below approx. 1.2 V
Environmental	Indoor operation; below 2000m (6,562ft)
Operating Temperature	-15°C to 50°C (5°F to 122°F) ; < 80%
Storage Temperature	-20ºC to 60ºC (-4ºF to 140ºF), < 80% R.H. (with battery removed)
Temperature Coefficient	nominal 0.15 x (specified accuracy)/ ºC @ 0ºC - 18ºC or 28ºC - 40ºC (32°F - 64°F or 82°F - 104°F)
Safety LVD	Category IV – 600 Volts ac Meets EN60101-1:2001; EN61010-2-032(2002; pollution degree : II; class 2
Electrical	[23ºC ± 5ºC (73ºC ± 9ºC)]
AC Voltage (50/60 Hz)
Ranges	150 / 300 / 600 Vrms
Accuracy	± 3 % of Full Scale.
Input Impedance	1.5 MΩ
OL Protection	600 V ac rms
AC Amp (50/60 Hz)
Ranges	6 / 15 / 40 / 100 /600 Arms
Accuracy	± 3 % of Full Scale
Ohms
Range	1000 ohms; 25 Ohms mid-scale
Accuracy	± 3 degrees of Arc
Open Circuit voltage	1.5v
Short circuit Current	xx mA
OL Protection	(F 0.5 A / 1000 V, size 6 x 32 mm IR fast blow ceramic)

Clamp Meters/Clamp Meters Template
True RMS	No
Maximum Current AC	1000 A
Maximum Voltage AC	600 V
Maximum Conductor Size	1.88 IN
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Manual
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Pointer Lock - Data Hold, Easy to Use Rotary Scale, Operates on 50Hz and 60Hz Frequency, No Batteries Required
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Additional Info/Comments	Test Leads with Set of Alligator Clips, Deluxe Carrying Case
Product Weight	1.05 LBS
Product Height	1.6 IN
Product Length	10.3 IN
Product Width	4 IN
Data Logging	No
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan Country of Origin Value not available
Shipping Height	4.25 IN Shipping Height Value not available
Shipping Length	14.00 IN Shipping Length Value not available
Shipping Width	8.00 IN Shipping Width Value not available
