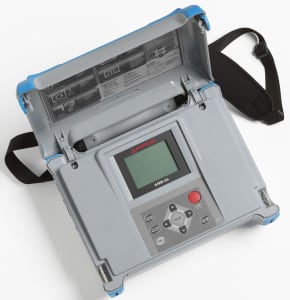

Amprobe AMB-55 Advanced Insulation Resistance Tester (5,000V)

Name: Amprobe AMB-55 Advanced Insulation Resistance Tester (5,000V)
Brand: Amprobe
SKU: AmprobeAMB-55
Price: 2212.11 USD
Availability: InStock

0 reviews | UPC: 095969557009 | Model: Amprobe AMB-55

Compare

5000V ADVANCED INSULATION RESISTANCE TESTER

Test insulation of wires, cables, transformers, motors, surge arrestors and generators
Selectable testing voltages - one testing instrument for low and high voltage systems:
- from 250V to 5000V with 25V increments
Insulation resistance measurement up to 10TΩ
- R(t) graph - Real time resistance against time graph plotting facility to graphically illustrate the response of a material to an applied test voltage
- User selectable Programmable Timer (1s to 99 min)
- Automatic discharge of test object after completion of measurement
- Capacitance Measurement
Diagnostic tools
- Polarization index (PI)
- Dielectric discharge (DD)
- Dielectric Absorption Ratio (DAR) with automated resistance ranging (AR).
Step voltage test - Insulation resistance will be measured at five different, equality sequenced test voltages for in-depth insulation system diagnostics

View Product Details

List Price: $3,065.99

Your Price: $2,212.11

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Amprobe AMB-55 5000V ADVANCED INSULATION RESISTANCE TESTER
Price
In Stock
Minimum Insulation Resistance	0 M Ohms (0 G Ohms)
Variable Incremental Voltage	No
Continuity Test	No
Compare	Add to compare

Recommended for you

Amprobe AMB-55 - Advanced Insulation Resistance Tester (5,000V)

Eliminate downtime, predict the lifetime of equipment and reduce safety hazards
You can accurately test cables, transformers, motors, surge arrestors and generators in noisy environments such as high voltage switchyards.
It also boasts built-in noise rejection filters and shielded test leads to provide high EMI immunity.

High Voltage Digital Megohmmeters

Amprobe Industrial High-Voltage Insulation Testers have all necessary features for advanced professional insulation diagnostics. Automated calculation of PI, DD and DAR, combined with a possibility to perform a step voltage test make these instruments suitable for the most demanding customers and applications. Large LCD display allows real time R(t) graphs to be displayed. Windows compatible PC Software and either RS232 or USB communications ports serve for connecting the instrument to the PC and management of the recorded test data.

All parameters can be measured and displayed in one single measurement.
High charging capacity - With 5 mA charging current insulation systems up to 50 μF can be quickly charged and tested.
High EM (noise) immunity - Built in noise rejection filters and shielded test leads supplied in a standard set make the instrument suitable for accurate insulation testing in environments with high EM interferences like HV switch-yards or similar environments
Handy, rugged carrying case
Dual power source – receptacle or rechargeable batteries
Built in internal memory storing 1000 measurements with time and date
CAT IV 600V overvoltage category for industrial applications

Key Descriptions

START/STOP key to start or stop any measurement.
ON/OFF key to switch the instrument ON or OFF.
MEM key to store, recall and erase results.
SELECT key to enter set-up mode for the selected function or to select the active parameter to be set.
▲ Cursor key to select an option upward.
▼ Cursor key to select an option downward.
◄ Cursor key to decrease the selected parameter.
► Cursor key to increase the selected parameter.
ESC key to exit the selected mode.
Light key to turn the display backlight ON or OFF.

Features	AMB-55	AMB-110	Accuracy
Insulation Resistance	0 – 999 kΩ 1.00 – 9.99, 10.0 – 99.9, 100 – 999 MΩ 1.00 – 9.99, 10.0 – 99.9, 100 – 999 GΩ 1.00 – 10.00 TΩ		±(5% rdg + 3 dgts) below 1TΩ ±(15% rdg + 3 dgts) @ 1TΩ and above
DC Test Voltage and Step Voltage	250 V to 5 kV, steps by 25 V	500 V to 10 kV, steps by 25 V
Display Range Test Voltage	0 – 5500V	0 – 9999V	±(3% rdg + 3V)
Display Range Test Voltage		≥10kV	±(3% of reading)
Current Display Range	0.00 – 9.99, 10.0 – 99.9, 100 – 999 nA 1.00 – 9.99, 10.0 – 99.9, 100 – 999 µA 1.00 – 5.5 mA		±(5% rdg + 0.05 nA)
Dielectric Absorption Ratio (DAR)	0 – 99.9		±(5% rdg + 2 dgts)
Polarization Index (PI)	0 – 99.9		±(5% rdg + 2 dgts)
Dielectric Discharge Test (DD)	0 – 99.9		±(5% rdg + 2 dgts)
Leakage Current Display Range	0 – 5.50 mA		±(5% rdg + 2 dgts)
External Voltage Measurement	0 – 600V		±(3% rdg + 4V) @ 45 to 65Hz and DC
Capacitance Measurement	0.0– 99.9, 100 – 999 nF 1.00 – 50.00 µF		±(5% rdg + 4 nF)
Discharging Resistance	300 kΩ	425 kΩ	±10%
Mains Power Supply	90 - 260VAC, 45 - 60 Hz, 60VA
Battery Power Supply	6 x 1.2V Ni-MH, IEC LR14	6 x 1.2V Ni-MH, IEC LR20
Dimension (w x h x d)	31 x 13 x 25 cm (12 x 5 x 10 in)	36 x 16 x 33 cm (14.2 x 6.3 x 13 in)
Weight (without accessories, with batteries)	3 kg (6.6 lb)	5.5 kg (12.1 lb)

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
Minimum Insulation Resistance	0 M Ohms (0 G Ohms)
Variable Incremental Voltage	No
Continuity Test	No
Live Circuit Voltage Detection	No
Timer	No
Test Equipment General Attributes
Product Height	5.40 IN
Product Length	17.25 IN
Product Width	13.00 IN
Data Logging	No
HTS/Schedule B Number	9030.33.3400
ECCN Number	3A992
Country of Origin	Slovakia (Slovak Republic)
Shipping Height	5.40 IN
Shipping Length	17.25 IN
Shipping Width	13.00 IN
