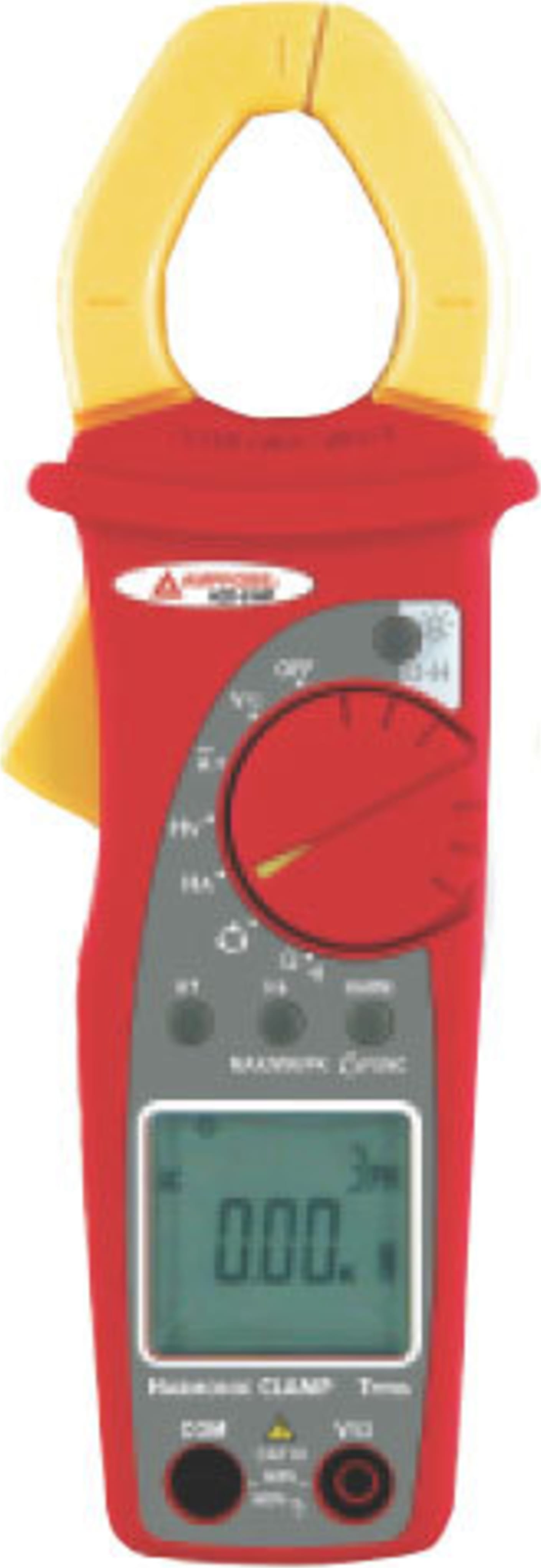

Amprobe ACD-56-HPQ-0106 - 400A AC Power Clamp-on Multimeter

Name: Amprobe ACD-56-HPQ-0106 - 400A AC Power Clamp-on Multimeter
Brand: Amprobe
SKU: AmprobeACD-56-HPQ-0106
Price: 456.24 USD
Availability: InStock

0 reviews | Model: Amprobe ACD-56-HPQ-0106

Compare

Power Clamp-on

TRMS Measurements
AC Current up to 400A
AC/DC Voltage up to 600V
Voltage and Current Harmonics up to 25th with THD%
Active, Reactive and Apparent Power Single/Three Phase
Power Factor, Cos Ø Single/Three Phase / Energy
Frequency (with test leads and jaw)
Phase sequence with single wire (patented)
Auto ranging
Auto Power OFF

View Product Details

List Price: $599.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Amprobe ACD-56-HPQ-0106

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe ACD-56-HPQ-0106

TRMS Measurements
AC Current up to 400A
AC/DC Voltage up to 600V
Backlight
Data Hold
MAX / MIN / AVG recording
Fast PEAK function (1ms)
Low battery indication
Safety CAT III 600V

400A AC Power Clamp-on Multimeter

Enjoy the versatility of improved technology. Amprobe offers basic power quality capability combined with TRMS clamp-on ammeter functionality.

Technical
AC/DC Voltage	1.6 - 599.9V ±(1% Rdg + 3 LSD)
AC Peak Voltage @ 1ms response time	10 - 850V ±(5% Rdg + 10 LSD)
AC Current	0 - 399.9V ±(1% Rdg + 3 LSD)
AC Peak Current @ 1ms response time	10 - 800A ±(5% Rdg + 10 LSD)
Resistance	0 ? 499.9/999/1999? ±(1% Rdg + 5 LSD)
Frequency (with test leads and jaw)	40.0 - 399.9Hz ±(0.5% Rdg + 1 LSD)
Voltage/Current Harmonics	THD, Individual harmonics 1 to 25 Harmonics 1 to 16 @ ±(10.0% Rdg + 5 dgt)
Active, Reactive and Apparent Power	0.00 ? 99.99/999.9 kW, kVAR, kVA ±(3.5% Rdg + 3 LSD)
Power Factor, Cos Ø	0.20 - 1.00 ±(2% Rdg + 2 LSD)
Safety Standards
Comply with	EN 61010
Insulation	Class 2, double reinforced insulation
Pollution	Level 2
For inside use, max height	2000m
Over voltage	CAT III 600V between terminals and ground
Mechanical Characteristics
Size	205(L) x 64 (W) x 39(D)mm
Weight (including battery)	about 280g
Jaws opening	30mm
Max conductor size	30mm
Power Supply
Battery type	2 batteries 1.5V AAA.
Low battery indication	Symbol "" is displayed when battery level is too low.
Battery life	About 90 hours of continued measurement
Display Characteristics	4 dgt LCD with maximum reading 9999 units plu decimal point and sign.
Sample rate	64 samples in 20ms
Conversion mode	TRMS
Environmental Conditions
Reference temperature	23° ± 5°C
Operating temperature	5 - 40 °C
Operating humidity	<80% RH
Storage temperature	-10 - 60 °C
Storage humidity	<80% RH
EMC	This apparatus was designed in accordance with EMC standards in force and its compatibility has been tested in accordance EN61326 (1997) + A1 (1998) + A2 (2001). This product conforms to the prescriptions of the European directive on low voltage 73/23/EEC (LVD) and to EMC directive 89/336/EEC, amended by 93/68/EEC.
Accessories
The accessories contained inside the packaging are the following	Instrument, Rubber holster (MTL-CAP), Test leads (MTL-90B), Carrying Case (SV-U), User?s manual

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	400 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	30 MM (1.18 IN)
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Data Hold, AVG Recording, Fast PEAK Function, Low Battery Indication, Voltage and Current Harmonics up to 25th with THD%
Warranty Details	Limited lifetime warranty, Limited Lifetime Warranty
Additional Info/Comments	Line Splitter (Energizer), 3000A AC Flexible Clamp-on Attachment, Single Input Thermocouple Temperature Attachment, Alligator Clips
Product Weight	280 GRAMS (0.617 LBS)
Product Height	39 MM (1.54 IN)
Product Length	205 MM (8.07 IN)
Product Width	64 MM (2.52 IN)
Data Logging	No
Battery Type	AAA
Power Supply Voltage	Battery Powered
Other Information	AC/DC Voltage: 1.6 - 599.9V ±(1% Rdg + 3 LSD) AC Peak Voltage @ 1ms response time: 10 - 850V ±(5% Rdg + 10 LSD) AC Current: 0 - 399.9V ±(1% Rdg + 3 LSD) AC Peak Current @ 1ms response time: 10 - 800A ±(5% Rdg + 10 LSD) Resistance: 0 ? 499.9/999/1999? ±(1% Rdg + 5 LSD) Frequency (with test leads and jaw): 40.0 - 399.9Hz ±(0.5% Rdg + 1 LSD) Voltage/Current Harmonics: THD, Individual harmonics 1 to 25 Harmonics 1 to 16 @ ±(10.0% Rdg + 5 dgt) Active, Reactive and Apparent Power: 0.00 ? 99.99/999.9 kW, kVAR, kVA ±(3.5% Rdg + 3 LSD) Power Factor, Cos Ø: 0.20 - 1.00 ±(2% Rdg + 2 LSD) Comply with: EN 61010 Insulation: Class 2, double reinforced insulation Pollution: Level 2 For inside use, max height: 2000m Over voltage: CAT III 600V between terminals and ground Size: 205(L) x 64 (W) x 39(D)mm Weight (including battery): about 280g Jaws opening: 30mm Max conductor size: 30mm Battery type: 2 batteries 1.5V AAA. Low battery indication: Symbol "" is displayed when battery level is too low. Battery life: About 90 hours of continued measurement Display Characteristics: 4 dgt LCD with maximum reading 9999 units plu decimal point and sign. Sample rate: 64 samples in 20ms Conversion mode: TRMS Reference temperature: 23° ± 5°C Operating temperature: 5 - 40 °C Operating humidity: 80% RH Storage temperature: -10 - 60 °C Storage humidity: 80% RH EMC: This apparatus was designed in accordance with EMC standards in force and its compatibility has been tested in accordance EN61326 (1997) + A1 (1998) + A2 (2001). This product conforms to the prescriptions of the European directive on low voltage 73/23/EEC (LVD) and to EMC directive 89/336/EEC, amended by 93/68/EEC. The accessories contained inside the packaging are the following: Instrument, Rubber holster (MTL-CAP), Test leads (MTL-90B), Carrying Case (SV-U), User?s manual
