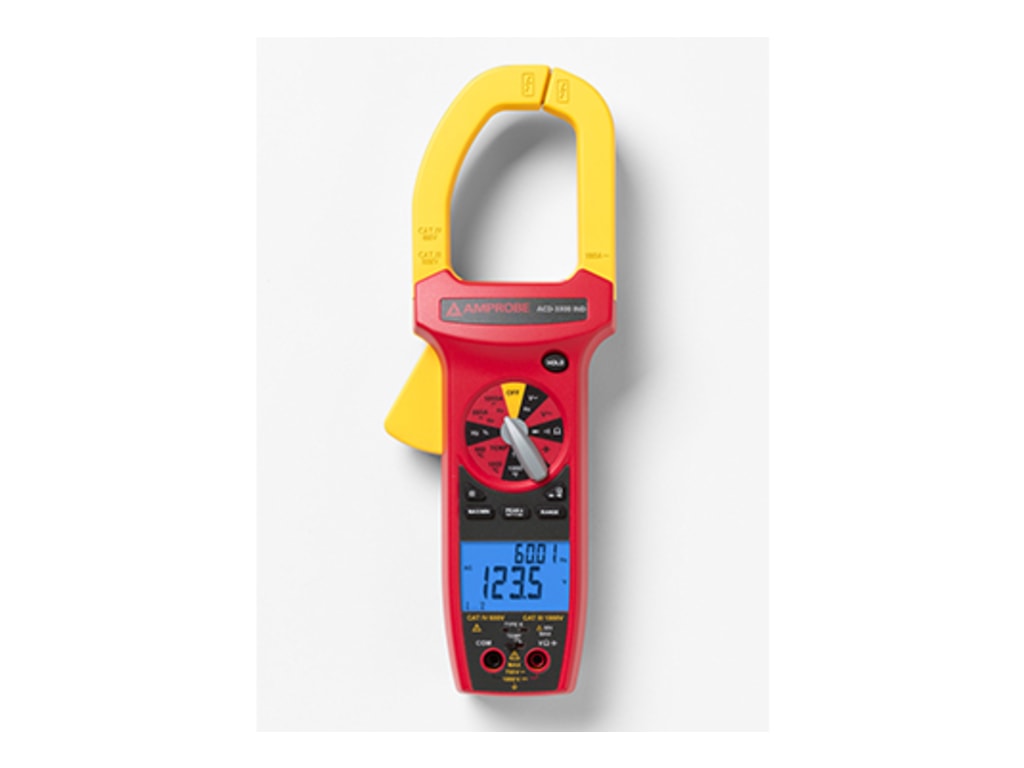

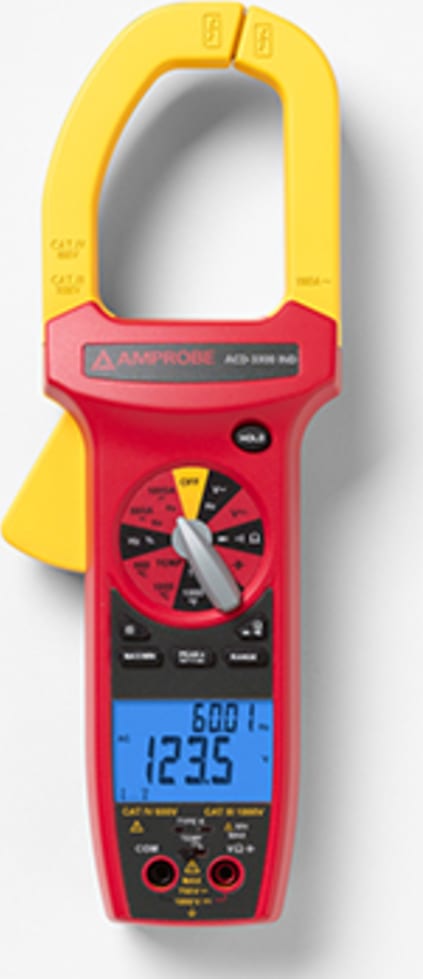

Amprobe ACD-3300 IND - CAT IV Industrial True RMS Clamp Meter

Name: Amprobe ACD-3300 IND - CAT IV Industrial True RMS Clamp Meter
Brand: Amprobe
SKU: AmprobeACD-3300 IND
Price: 388.98 USD
Availability: InStock

0 reviews | UPC: 095969492676 | Model: Amprobe ACD-3300 IND

Compare

CAT IV Industrial True RMS Clamp Meter

True RMS
Measures AC Current up to 1000 ACA, Voltage up to 750 VAC / 1000 VDC, Frequency, Resistance and Capacitance and Duty Cycle
Temperature to 1832°F or 1000°C
Peak Hold
Audible continuity
Auto and manual ranging
Auto power off
Diode Test
Duty Cycle
Accommodates conductors up to 2” (51mm) in diameter

View Product Details

List Price: $503.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probes with Leads
Line Splitters

for the Amprobe ACD-3300 IND

Amprobe TL1500 TEST LEADS, ALLIGATOR CLIPS, HD DMMS, CAT IV 1000V

Catalog: 2696277

(4)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe ACD-3300 IND

True RMS
Measures AC Current up to 1000 ACA, Voltage up to 750 VAC / 1000 VDC, Frequency, Resistance and Capacitance, and Duty Cycle
Temperature to 1832°F or 1000°C
Peak Hold
Safety CAT IV 600 V, CAT III 1000 V

CAT IV Industrial True RMS Clamp Meter

This CAT IV-rated clamp is ideal for industrial applications and utilities that require an extra level of safety. Includes True RMS sensing for accuracy and dependability. Extra-large jaw to accommodate wide diameter wires.

DC Volts Ranges	660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
Accuracy	± (0.5% rdg + 2 dgts)
Input impedance	660 mV: >100 M?; 6.6 V:10 M?; 66 V to 1000 V: 9.1 M?
Overload protection	1000 VDC or 750 VAC rms
AC Volts True RMS Range	660.0 mV Frequency 50 to 100 Hz
Accuracy	± (1.5% rdg + 8 dgts)
AC Volts True RMS Range	6.600V, 66.00V Frequency 50 to 500 Hz
Accuracy	± (1.5% rdg + 8 dgts)
AC Volts True RMS Range	660.0V, 750V Frequency 50 to 500 Hz
Accuracy	± (1.5% rdg + 8 dgts)
Frequency* (* Frequency	10% to 100% of voltage range): 50 to 1 kHz +/- (0.1% rdg + 5 dgts)
AC coupled TRMS	5% to 100% of range
Overload protection	1000 VDC or 750 VAC rms
Power	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Jaw opening capability	57 mm (2.0 in) conductor
Battery Life	typically 75 hours with carbon-zinc; 150 hour with alkaline
Size	283 x 105 x 50 mm (11 x 4 x 2.1 in.)
Weight	500g (1.1 lb)
Safety	LVD Meets EN61010-1:2001 and EN61010-2-032:2002, CAT III 1000V, CAT IV 600V, class II and pollution

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	1000 A
Maximum Voltage AC	750 V
Maximum Voltage DC	1000 V
Maximum Conductor Size	2 IN
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Both
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Duty Cycle, Low Battery Indication
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Additional Info/Comments	Test Leads with Set of Alligator Clips
Product Weight	1.1 LBS
Product Height	2.1 IN
Product Length	11 IN
Product Width	4.1 IN
Data Logging	No
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan Country of Origin Value not available
