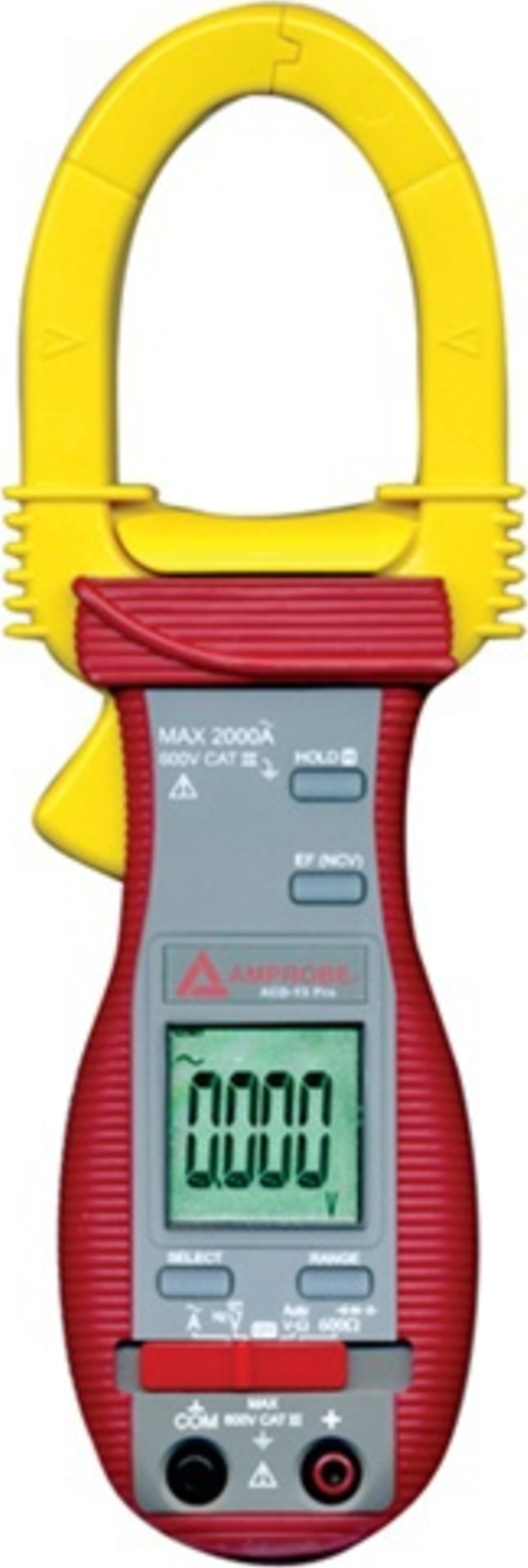

Amprobe ACD-16 PRO - 1000A Data-Logging Clamp-on Multimeters

Name: Amprobe ACD-16 PRO - 1000A Data-Logging Clamp-on Multimeters
Brand: Amprobe
SKU: AmprobeACD-16 PRO
Price: 132.76 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | UPC: 0 95969 36580 2 | Model: Amprobe ACD-16 PRO

Compare

1000A Data-Logging Clamp-on Multimeters

Measurements: AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency and Temperature
Data-logging 5400 points
Audible continuity
Auto power off
Automatic polarity
Low battery indication
Data hold
Large, easy to read LCD display
Accommodates conductors up to 1.77” (45mm) in diameter
Voltage overload protection for all functions up to 600V AC/DC

View Product Details

List Price: $179.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Amprobe ACD-16 PRO

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe ACD-16 PRO

Measurements: AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency and Temperature
Data-logging 5400 points
Audible continuity
Auto power off
Automatic polarity

1000A Data-Logging Clamp-on Multimeters

Need the perfect tool to troubleshoot a system? The ACD-16’s provide a full range of measurements, enhanced with data logging capabilities, to catch what the eye can’t see. Double the efficiency, with an optional PC interface kit.

Safety CAT III 600V
Optional PC interface capability (RS-232 KIT2)

General
TRMS	No
AC Current	40.0 / 400.0 / 1000 A
AC Current Basic Accuracy	+/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz
DC Voltage	600.0V
DC Voltage Basic Accuracy	+/-(0.5% Rdg + 5 LSD)
AC Voltage	600.0V
AC Voltage Basic Accuracy	+/-(1.0% Rdg + 5 LSD) @ 50 / 60 Hz
Resistance	999.9 Ohms
Resistance Basic Accuracy	+/-(1.0% Rdg + 6 LSD)
Frequency	5.00Hz to 500.0Hz
Frequency Basic Accuracy	+/-(0.5% Rdg +4 LSD)
Temperature	58 F to 572 F (-50 C to 300 C)
Temperature Basic Accuracy	+/-(2.0% Rdg + 6F) +/-(2.0 % Rdg + 3C)
Safety	CAT III 600V

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Amprobe ACD-16

4.0

Recently purchased 3 Amprobe recording amp meters. Advanatage: good price for what it does. Disadvantage: Must have 3 meters to record 3 phase equipment. Takes a lot of room for all 3 meters to fit in tight spaces or must leave door(s) open. If you don't need a power analyzer, this is a great alternative. I would recommend it to others.

Billy on Jan 31, 2018
