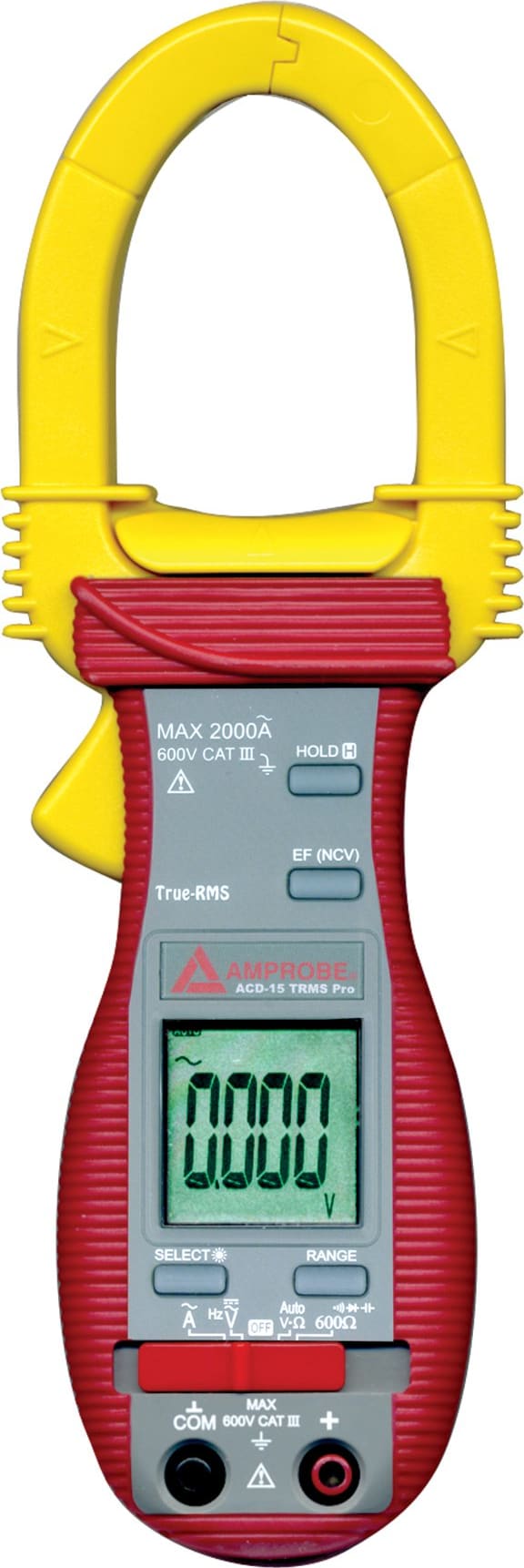

Amprobe ACD-15 TRMS-PRO - 2000A Digital Clamp-on Multimeter, TRMS

Name: Amprobe ACD-15 TRMS-PRO - 2000A Digital Clamp-on Multimeter, TRMS
Brand: Amprobe
SKU: AmprobeACD-15 TRMS-PRO
Price: 184.40 USD
Availability: InStock

0 reviews | UPC: 095969365796 | Model: Amprobe ACD-15 TRMS-PRO

Amprobe ACD-15 TRMS-PRO 2000A Digital Clamp Multimeter with VolTect

Compare

2000A Digital Clamp-on Multimeter, TRMS

True-RMS and backlight screen
Measurements: AC/DC Voltage up to 600 V, AC Current up to 2000 A Resistance, Frequency and Capacitance
Non-contact Voltage Level Detection
Audible continuity
Auto-check feature automatically selects DCV, ACV or Resistance (W)
Auto power off
Low battery indication
Data hold
Large, easy to read LCD display
Accommodates conductors up to 1.77” (45 mm) in diameter

View Product Details

List Price: $249.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Amprobe ACD-15 TRMS-PRO

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe ACD-15 TRMS-PRO

True-RMS and backlight screen
Measurements: AC/DC Voltage up to 600 V, AC Current up to 2000 A Resistance, Frequency, and Capacitance
Non-contact Voltage Level Detection
Audible continuity
Auto-check feature automatically selects DCV, ACV, or Resistance (W)

2000A Digital Clamp-on Multimeter, TRMS

The Amprobe ACD-15 TRMS-PRO offers a wide range of features built into one professional TRMS meter to improve performance and reliability.

AC Current	400.0 / 2000 A
AC Current Basic Accuracy	+/-(1.5% Rdg + 5 LSD) @ 50 and 60Hz
AC / DC Voltage	6.000 / 60.00 / 600V
AC / DC Voltage Basic Accuracy	+/-(2.0% Rdg + 5 LSD) @ DC & 50 / 60 Hz
Resistance	6.000 /60.00 / 600.0 kOhms 6.000 MOhms
Resistance Basic Accuracy	+/-(1.0% Rdg + 4 LSD) @ 60.00 to 600.0 kOhms ranges
Frequency	10Hz to 1kHz
Frequency Basic Accuracy	0.5%+4d
Capacitance	100.0, 1000 nF 10.00, 100.0, 2000 μF
Capacitance Basic Accuracy	3.5%+5d
Non-contact Voltage	15V to 85V, 40V to 130V,60V to 210V,90V to 300V,Above 120V
TRMS	YES
Safety	CAT III 600V

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	1.77 IN
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Auto Ranging
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Non-contact Voltage Level Detection, Low Battery Indication, Data Hold
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase
Additional Info/Comments	Line splitter (Energizer), 3000A AC Flexible Clamp-On Attachment, Temperature Adapter, Industry Test Leads with Threaded Alligator Clips
Product Weight	220 GRAMS (0.485 LBS)
Product Height	40 MM (1.57 IN)
Product Length	224 MM (8.82 IN)
Product Width	78 MM (3.07 IN)
Data Logging	No
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan Country of Origin Value not available
Shipping Height	3.50 IN Shipping Height Value not available
Shipping Length	12.00 IN Shipping Length Value not available
Shipping Width	7.00 IN Shipping Width Value not available
Other Information	AC Current: 400.0 / 2000 A AC Current Basic Accuracy: +/-(1.5% Rdg + 5 LSD) @ 50 and 60Hz AC / DC Voltage: 6.000 / 60.00 / 600V AC / DC Voltage Basic Accuracy: +/-(2.0% Rdg + 5 LSD) @ DC & 50 / 60 Hz Resistance: 6.000 /60.00 / 600.0 kOhms 6.000 MOhms Resistance Basic Accuracy: +/-(1.0% Rdg + 4 LSD) @ 60.00 to 600.0 kOhms ranges Frequency: 10Hz to 1kHz Frequency Basic Accuracy: 0.5%+4d Capacitance: 100.0, 1000 nF 10.00, 100.0, 2000 µF Capacitance Basic Accuracy: 3.5%+5d Non-contact Voltage: 15V to 85V, 40V to 130V,60V to 210V,90V to 300V,Above 120V TRMS: YES Safety: CAT III 600V
