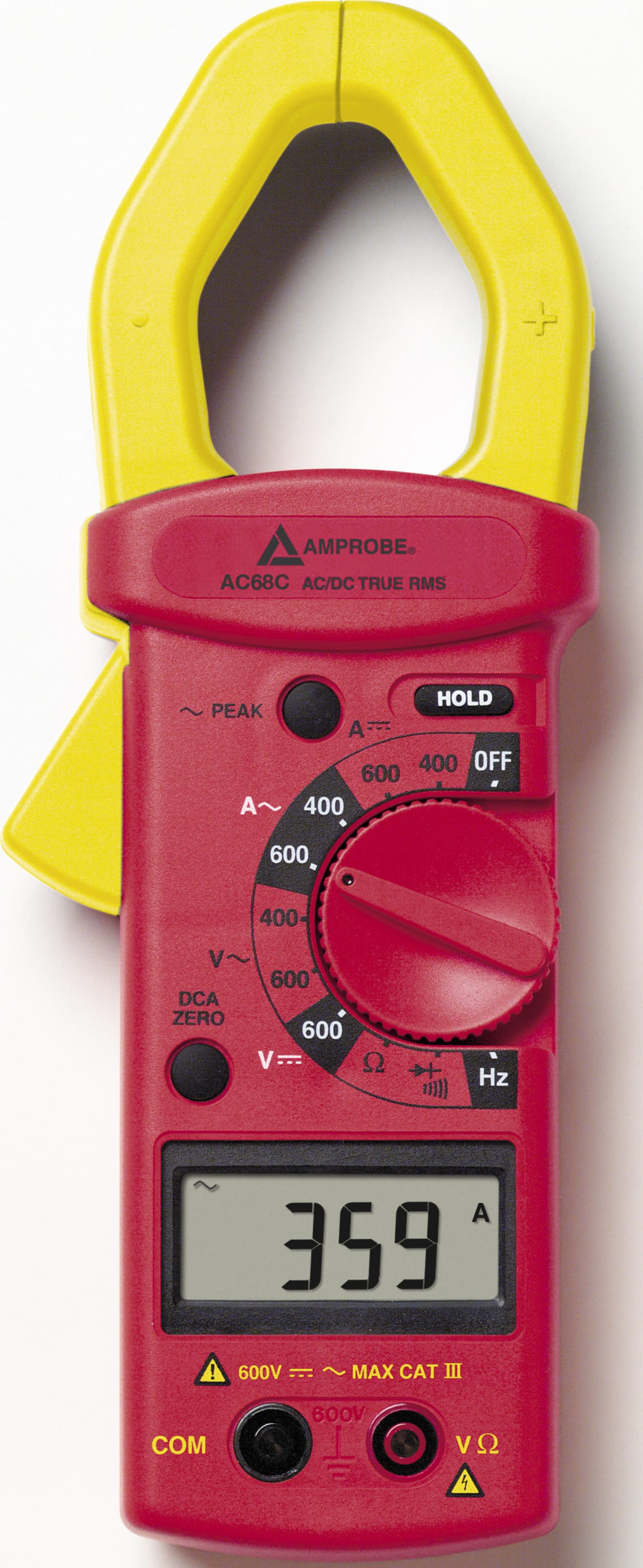

Amprobe AC68C - TRMS 600 A Clamp Meter

Name: Amprobe AC68C - TRMS 600 A Clamp Meter
Brand: Amprobe
SKU: AmprobeAC68C
Price: 380.49 USD
Availability: InStock

0 reviews | UPC: 095969365505 | Model: Amprobe AC68C

Compare

TRMS 600 A Clamp Meter

8 functions/11 ranges
Data and AC peak hold
DC auto zero
Carrying case included
33⁄4 digit, LCD, max reading of 3999
Maximum jaw opening 1.57" (40 mm)
Autoranging for frequency measurement
Low battery indication
Auto-power off after 30 minutes
Manual function and range selection with rotary selector

View Product Details

List Price: $492.99

Your Price: $380.49

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Amprobe AC68C Accessories

Choose a Category

for the Amprobe AC68C

Amprobe TL35B TEST LEAD WITH ALLIGATOR CLIPS - CE

Catalog: 3068232

(4)

In Stock!

Add to Cart

Amprobe DL243D BASIC TEST LEAD KIT

Catalog: 3026853

(0)

In Stock!

Add to Cart

Amprobe DL248D DELUXE TEST LEAD KIT

Catalog: 3026866

(1)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe AC68C

8 functions/11 ranges
Data and AC peak hold
DC auto zero
33⁄4 digit, LCD, max reading of 3999
Maximum jaw opening 1.57" (40 mm)
Autoranging for frequency measurement

TRMS 600 A Clamp Meter

Amprobe AC68C TRMS 600 A Clamp Meter measures non-linear load current with true-RMS readings. This top-of-the-line professional clamp DMM is CAT II 600 V, CAT III 300 V rated.

General Specifications

Display	3-3⁄4 digit, LCD, max reading of 3999
Display Update Rate	2/sec, nominal
Power	9 V battery (NEDA 1604, IEC 6F22)
Battery Life	200 hours(Alkaline)
Operating Temperature	0°C to + 40°C < 80 % R.H.
Storage Temperature	- 10°C to + 60°C, < 70 % R.H. non-condensing
Maximum Jaw Opening	40 mm (1.57)
Dimensions (WxHxD)	76 x 228 x 39 mm (3 x 9 x 1.5)
Weight (incl. Battery)	465 grams
Warranty	One-year

Mechanical Specifications (23°C ± 5 °C; < 80 % R.H. non-condensing)

Function	Range	Accuracy
DC Voltage
Ranges	600 V	± (0.75 % rdg + 2 dgts)
Resolution	1 V in 600 V range
Input Impedance	10 MΩ
AC Voltage (40-450 Hz)
Range	400 V, 600 V	± (1.2 % rdg + 5 dgts)
Resolution	0.1 V in 400 V range
Input Impedance	10 MΩ
DC Current
Ranges	400 A, 600 A	± (2 % rdg + 5 dgts)
Resolution	0.1 A in 400 A range
AC Current (40-450 Hz)
Ranges	400 A, 600 A	± (2 % rdg + 5 dgts)
Resolution	0.1 A in 400 A range
Frequency (Hz), Current and Voltage
Ranges	4 kHz, 20 kHz	± (0.5 % rdg + 5 dgts)
Resolution	1 Hz in 4 kHz range
Sensitivity	5 A/1 V in 4 kHz range
	5 A/5 V in 20 kHz range
Resistance
Range	4 kΩ	± ( 1.0 % rdg + 5 dgts)
Resolution	1 Ω in 4 kΩ range
Open Circuit Volts	0.5 V DC
Max Short Circuit Current	0.8 mA
Diode Test
		± (1.0 % rdg + 2 dgts)
Resolution	0.001 V
Open Circuit Volts	3.2 V DC
Max Short Circuit Current	0.8 mA
Continuity
Range Threshold	Tone at 40 Ω ± 15 Ω
Open Circuit Volts	3.2 V DC
Max Short Circuit Current	0.8 mA
Peak Hold Measurement AC Voltage (40-450 Hz)
Range	400 V, 600 V	± (1.5 % rdg + 10 dgts)
Resolution	0.1 V in 400 V range
Input Impedance	10 MΩ
Peak Hold Measurement AC Current (40-450 Hz)
Range	400 A, 600 A	± (2.0 % rdg + 10 dgts
Resolution	0.1 A in 400 A range
Overload Protection
Voltage	1000 V DC/750 V AC
Current	800 Amps
Resistance	660 V RMS
Diode	660 V RMS

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	600 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Both
In-Rush Current	No
Test Equipment General Attributes
Unique Features	DC Auto Zero, 8 Functions / 11 Ranges
Warranty	1 YEARS
Additional Info/Comments	Basic Test Lead Kit, Deluxe Test Lead Kit, Test Lead Set with Alligator Clips
Product Weight	465 GRAMS (1.03 LBS)
Product Height	1.5 IN
Product Length	9 IN
Product Width	3 IN
Data Logging	No
HTS/Schedule B Number	9030.32.0000
ECCN Number	3A992 ECCN Number Value not available
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan Country of Origin Value not available
Shipping Height	2.00 IN Shipping Height Value not available
Shipping Length	13.00 IN Shipping Length Value not available
Shipping Width	8.50 IN Shipping Width Value not available
