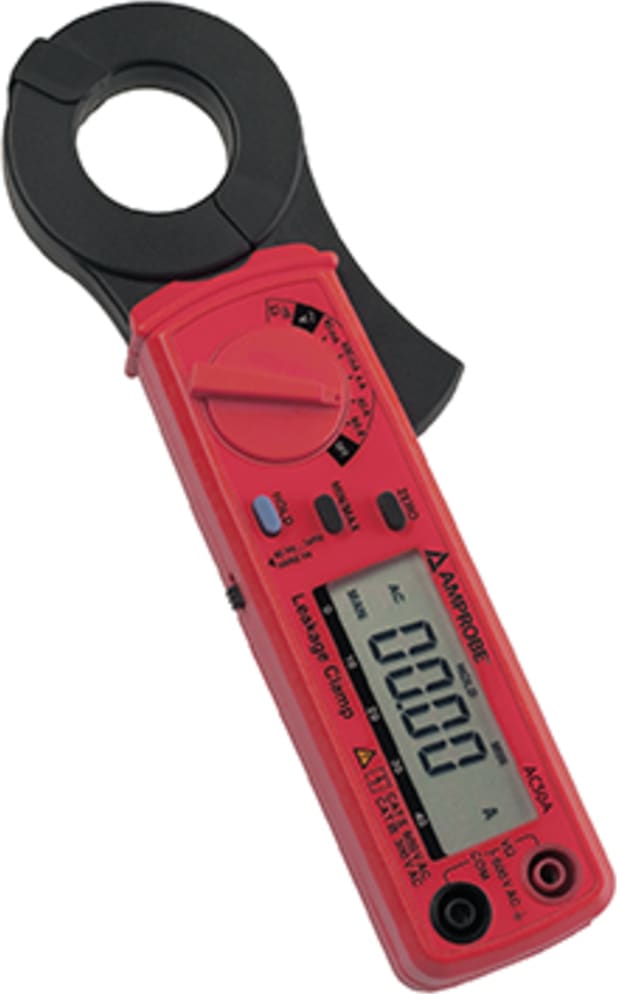

Amprobe AC50A - AC Leakage Clamp Meter

Name: Amprobe AC50A - AC Leakage Clamp Meter
Brand: Amprobe
SKU: AmprobeAC50A
Price: 504.75 USD
Availability: InStock
Rating: 4.67 (3 reviews)

4.5 (3 Reviews) | UPC: 095969416719 | Model: Amprobe AC50A

Images (4) | Videos (2)

Compare

Compact Clamp Meter For Leakage Current

AC current measurement to 60 A
Leakage current measurement with resolution of 0.01 mA
AC voltage to 400 V
Resistance measurement and continuity beeper
Min/max control to see largest or smallest values in a series of measurements
Relative value measurement to determine differentials
Data hold to freeze measurement value on the display
Digital display with analog bargraph
Jaw opening 1.2"
Auto-power off to save battery life

View Product Details

List Price: $653.99

Your Price: $504.75

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Amprobe AC50A Accessories

Choose a Category

Line Splitters

for the Amprobe AC50A

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe AC50A

AC current measurement to 60 A
Leakage current measurement with a resolution of 0.01 mA
AC voltage to 400 V
Resistance measurement and continuity beeper
Min/max control to see largest or smallest values in a series of measurements

AC Leakage Clamp Meter

The Amprobe AC50A Clamp Multimeter with leakage current capability measures low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents.

Display	3-3/4, LCD incl. functions and symbols
Bargraph	40 segments
Range Selection	manual
Auto-Power-Off	approx. 30 min.
Overload display	the left digit is blinking
Measuring rate	20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD)
Clamp opening	ca. 30 mm (1.2”)
Overvoltage Categorie	CAT II, 600 V, CAT III, 300 V
Pollution degree	2
Height above MSL.	up to 2000 m, indoor operation
Battery display	at low battery
Power supply	Battery 2 x 1,5 V IEC LR6 (alkaline)
Current Consumtion	approx. 10 mA
Operation temperature	-10° C … 50° C (14° F... 122° F)
Storage temperature	-20° C … 60° C (-4° F... 140° F)
Humidity	< 75 % relative humidity

Range	Resolution	Accuracy
Current AC
		50 Hz/60 Hz	40 Hz - 1 kHz
0 - 40 mA 0 - 400 mA 0 - 4 A 0 - 40 A	10 µA 100 µA 1 mA 10 mA	±(1.5 % rdg. +3 D)	±(2.0 % rdg. +5 D)
0 - 50 A	0.1 A	±(1.5 % rdg. +5 D)	±(2,0 % rdg. +5 D)
50 - 60 A	0.1 A	±(3.0 % rdg. +5 D)	±(3.5 % rdg. +5 D)
Voltage AC
		50 Hz/60 Hz	40 Hz ... 1 kHz
0 ... 400V	0.1 V	±(1.0 % rdg. +3 D)	±(2.0 % rdg..± 4 D)
Resistance
Range	Resolution	Accuracy	Overload Protection
400 Ω	0.1 Ω	±(1 % rdg. +3 D)	600 V AC
Continuity
Range	Resolution	Beep	Open Circuit Voltage
Ω/	0.1Ω	< ca. 40Ω	< 0.4 V
Overload Protection 600 V AC

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	No
Maximum Current AC	60 A
Maximum Voltage AC	400 V
Maximum Conductor Size	1.2 IN
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Manual
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Relative Value Measurement to Determine Differentials, Data Hold to Freeze Measurement Value on the Display, Digital Display
Additional Info/Comments	Heavy Duty Test Leads with Threaded Alligator Clips
Product Weight	7 OUNCES (0.438 LBS)
Product Height	1.4 IN
Product Length	7.2 IN
Product Width	2.5 IN
Data Logging	No
HTS/Schedule B Number	9030.32.0000
ECCN Number	3A992 ECCN Number Value not available
Battery Type	Other
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan Country of Origin Value not available
Other Information	Display: 3-3/4, LCD incl. functions and symbols Bargraph: 40 segments Range Selection: manual Auto-Power-Off: approx. 30 min. Overload display: the left digit is blinking Measuring rate: 20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD) Clamp opening: ca. 30 mm (1.2?) Overvoltage Categorie: CAT II, 600 V, CAT III, 300 V Pollution degree: 2 Height above MSL.: up to 2000 m, indoor operation Battery display: at low battery Power supply: Battery 2 x 1,5 V IEC LR6 (alkaline) Current Consumtion: approx. 10 mA Operation temperature: -10? C ? 50? C (14? F... 122? F) Storage temperature: -20? C ? 60? C (-4? F... 140? F) Humidity: 75 % relative humidity

4.5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 3 reviews

Most Helpful First | Newest First

Recommend to a Friend

Excellent Quality and Quick Shipping

5.0

This equipment works excellent for what I am looking for and it was delivered above expectations.

Darren Huff on May 06, 2021

Recommend to a Friend

Amprobe AC50A

5.0

The Amprobe AC50A is sensitive enough to measure the hot minus neutral current difference directly as well as the actual ground current. I was able to separate power leakage from ground loop current in a digital A-V studio environment, and trace the actual leaking devices that were causing a hard GFCI trip.

Zapman on Nov 30, 2016

Recommend to a Friend

Great price

4.0

Great price comparable performance to Ametek.
Need to wait to be sure about maintaining its calibration over time

amad on Mar 04, 2016
