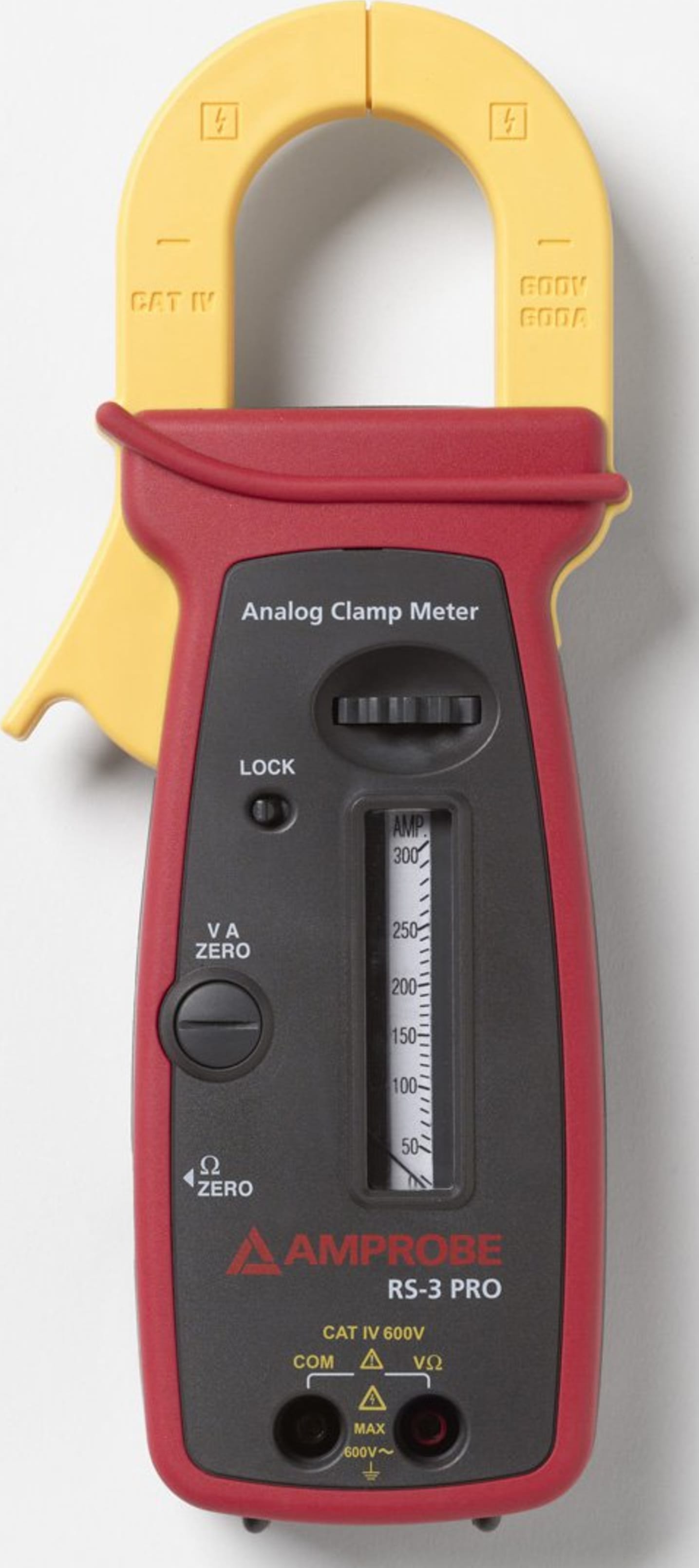

Amprobe RS-3 PRO CAT IV Analog Clamp Meter

Name: Amprobe RS-3 PRO CAT IV Analog Clamp Meter
Brand: Amprobe
SKU: AmprobeRS-3 PRO
Price: 201.43 USD
Availability: InStock

0 reviews | UPC: 095969497718 | Model: Amprobe RS-3 PRO

Compare

CLAMP METER ANALOG CAT IV 600V-300A, 1 INCH JAW

Measures AC Current up to 300A
Voltage up to 600 VAC
Resistance and Continuity
Pointer Lock - Data hold
Easy to use Rotary Scale
Measures Volts and Amps, no batteries required
Works in temperatures from 5°F to 122°F
Operates on 50 and 60 Hz frequency
CAT IV, 600 V Safety Rated
Includes test leads, battery (installed, for resistance measurement only), Users Manual, Carrying Case

View Product Details

List Price: $260.99

Your Price: $201.43

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Amprobe RS-3 PRO Accessories

Choose a Category

for the Amprobe RS-3 PRO

Amprobe TL1500 TEST LEADS, ALLIGATOR CLIPS, HD DMMS, CAT IV 1000V

Catalog: 2696277

(4)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe FP500 REPLACEMENT FUSE PACK,PACK OF 4, 0.5A/1000V CERAMIC FUSES FOR 37XR,38XR

Catalog: 1990695

(1)

In Stock!

Add to Cart

CAT IV Analog Clamp

This CAT IV 600V safety rated analog clamp is a great tool for tough electrical applications. The RS-3 PRO works well in extreme temperatures of 32°F to 5°F, while digital clamp LCD screens tend to freeze this anolog clamp measures up to the test. The RS-3 PRO does not require batteries for measuring Amps and Volts.

Display	Analog scales with clamping needle
Dimension	243 x 102 x 41 mm (10.3 x 4.0 x 1.6 in.)
Weight	0.455 kg (1.0 lb.)
Jaw opening / Conductor diameter	41mm (1.64") max
Volt/ amp	powered by circuit under test
Ohm	1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03)
Low Battery	Below approx. 1.2 V
Environmental	Indoor operation; below 2000m (6,562ft)
Operating Temperature	-15°C to 50°C (5°F to 122°F) ; < 80%
Storage Temperature	-20ºC to 60ºC (-4ºF to 140ºF), < 80% R.H. (with battery removed)
Temperature Coefficient	nominal 0.15 x (specified accuracy)/ ºC @ 0ºC - 18ºC or 28ºC - 40ºC (32°F - 64°F or 82°F - 104°F)
Safety LVD	Category IV – 600 Volts ac Meets EN60101-1:2001; EN61010-2-032(2002; pollution degree : II; class 2
Electrical	[23ºC ± 5ºC (73ºC ± 9ºC)]
AC Voltage	(50/60 Hz)
Ranges	150 / 300 / 600 Vrms
Accuracy	± 3 % of Full Scale.
Input Impedance	1.5 MΩ
OL Protection	600 V ac rms
AC Amp	(50/60 Hz)
Ranges	6 / 15 / 40 / 100 /600 Arms
Accuracy	± 3 % of Full Scale
Ohms
Range	1000 ohms; 25 Ohms mid-scale
Accuracy	± 3 degrees of Arc
Open Circuit voltage	1.5v
Short circuit Current	xx mA
OL Protection	(F 0.5 A / 1000 V, size 6 x 32 mm IR fast blow ceramic)

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	No
Maximum Current AC	300 A
Maximum Voltage AC	600 V
Maximum Conductor Size	1.64 IN
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Manual
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Pointer Lock - Data Hold, Easy to Use Rotary Scale, Operates on 50Hz and 60Hz Frequency, No Batteries Required
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Additional Info/Comments	Test Leads with Set of Alligator Clips, Deluxe Carrying Case
Product Weight	1 LBS
Product Height	1.6 IN
Product Length	10.3 IN
Product Width	4 IN
Data Logging	No
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan Country of Origin Value not available
